QBM22200TN - 200 Amp Circuit Breaker

QBM22200TN - 200 Amp Circuit Breaker

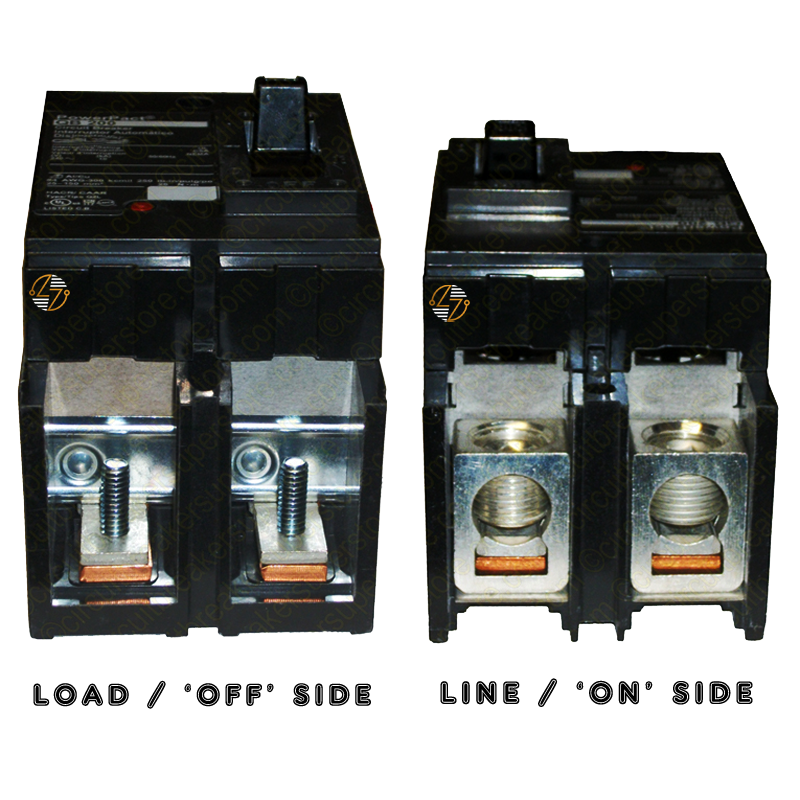

The Square D QBM22200TN PowerPacT™ Q is a 200A, 2-pole thermal-magnetic circuit breaker designed for 240VAC commercial and industrial systems. It protects your panels, HVAC equipment, and distribution circuits from overloads and short circuits, ensuring reliable day-to-day performance. Its top-of-panel design with load lugs and line-side terminal nuts allows for secure and straightforward installation, while the push-to-trip button makes manual testing quick and easy.

Key Features and Benefits

• 200A thermal-magnetic protection for 240VAC systems
• 2-pole design with common trip
• 10kA interrupting rating for standard fault conditions
• Compact footprint to save panel space
• HACR rated for HVAC applications
• UL, CSA, NOM, and IEC certified


Technical Specifications

• Catalog Number: QBM22200TN

• Product Line: PowerPacT™ Q

• Number of Poles: 2

• Ampere Rating: 200A

• Voltage Rating: 240 VAC

• Interrupt Rating: 10kAIC

• Trip Type: Thermal-Magnetic

• Continuous Current Rating: 80%

• Mounting Mode: Unit Mount Lug

• Wire Size Range: AWG 4–300 kcmil

• Dimensions:
  • Height: 6.47 in
  • Width: 3 in
  • Depth: 3.93 in
• Weight: 3.371 lbs


Material Compliance and Certifications

• UL Listed, CSA Certified, NOM Certified, and IEC compliant. Meets NEMA standards for low-voltage power protection.


Where It Works Best

• Ideal for top-of-panel installation in commercial and industrial distribution panels, HVAC systems, and any 240VAC setup where compact, reliable overcurrent protection is needed.
