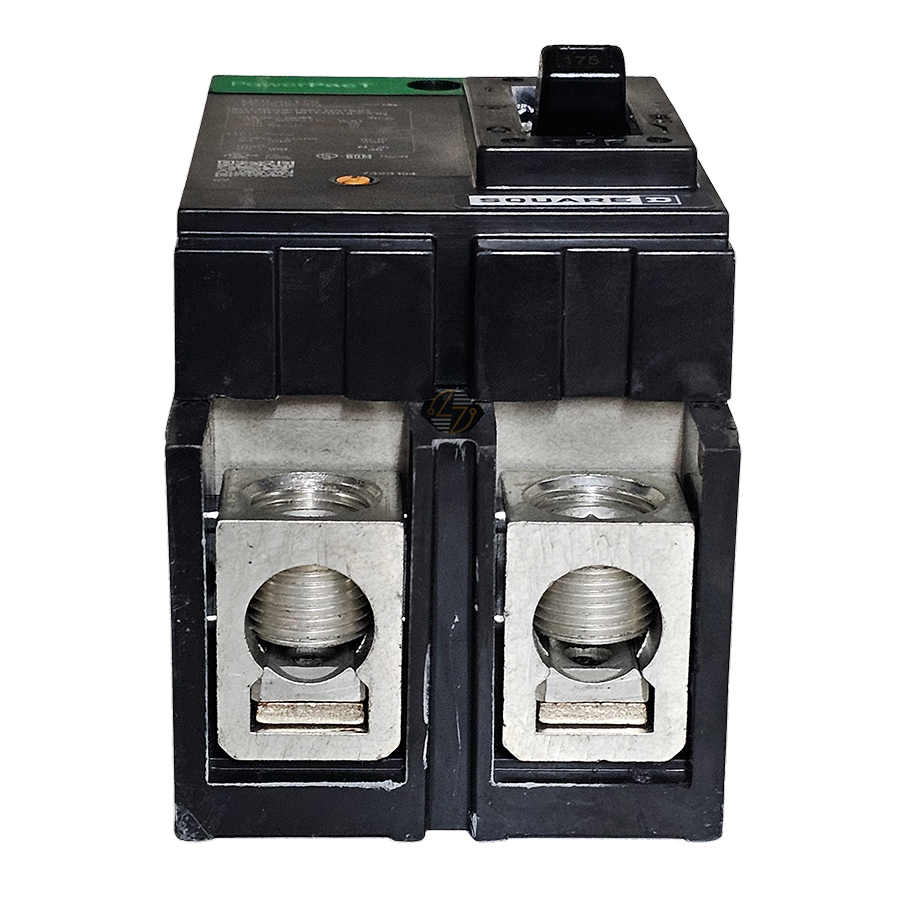

QBL22125 - 125 Amp Circuit Breaker

QBL22125 - 125 Amp Circuit Breaker

When you need a 125-amp, 2-pole circuit breaker for a 120/240VAC electrical system, the QBL22125 offers straightforward, reliable circuit protection. It combines thermal and magnetic trip protection to respond to both sustained overloads and short-circuit conditions, helping protect connected equipment from electrical faults. This breaker features a non-interchangeable trip unit, so the trip rating remains fixed rather than being changed in the field. Lug terminals are provided on both the line and load sides, making conductor termination simple during installation or replacement. Whether you're replacing an existing Type QBL breaker or maintaining an electrical distribution system, the QBL22125 is built for applications that require a 125-amp, two-pole breaker with a 10kA interrupting rating at 120/240VAC.

Key Features and Benefits

• 125 Amp current rating

• Two-pole configuration for 120/240VAC systems
• Thermal magnetic protection against overloads and short circuits

• Fixed, non-interchangeable trip unit
• 10kA interrupting capacity at 120/240VAC
• Lug terminals on both the line and load sides
• Suitable for replacement, maintenance, and electrical system upgrades
• Compact footprint for compatible Type QBL installations

Technical Specifications

• Part Number: QBL22125

• Type: QBL

• Poles: 2

• Amperage: 125A

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Trip Type: Thermal Magnetic

• Trip Unit: Non-Interchangeable

• Line Connection: Lug Terminal

• Load Connection: Lug Terminal

• Dimensions:
  • Height: 6.5 in.
  • Width: 3.0 in.
  • Depth: 3.13 in.

Material Compliance and Certifications

• Install the QBL22125 in accordance with applicable electrical codes and the equipment manufacturer's requirements. Before installation, verify that the breaker's electrical ratings, physical dimensions, and connection style match the intended application. Any certifications or compliance markings should be confirmed on the product label or accompanying manufacturer documentation.


Where It Works Best

• The QBL22125 is commonly used in commercial buildings, industrial facilities, manufacturing equipment, distribution panels, panelboards, facility maintenance projects, and electrical system replacements and upgrades. Its 125-amp rating and thermal-magnetic trip mechanism make it a practical choice wherever a compatible Type QBL breaker is specified.
