QBL22100 - 100 Amp Circuit Breaker

QBL22100 - 100 Amp Circuit Breaker

The Schneider Electric PowerPact™ QBL22100 is a 100-amp, 2-pole circuit breaker built for dependable protection of your electrical systems. Designed for 240VAC applications, it’s a solid choice for commercial and industrial settings where you can’t afford power failures or safety risks. With its thermal magnetic trip unit, this breaker reacts quickly to overloads and short circuits, helping you avoid equipment damage and downtime.

Key Features and Benefits

• Reliable Power Protection: Handles up to 100 amps with a 10kA interrupt rating, making it suitable for demanding electrical setups.
• Smart Trip Technology: Thermal magnetic trip provides both long-time and instant response to electrical faults.

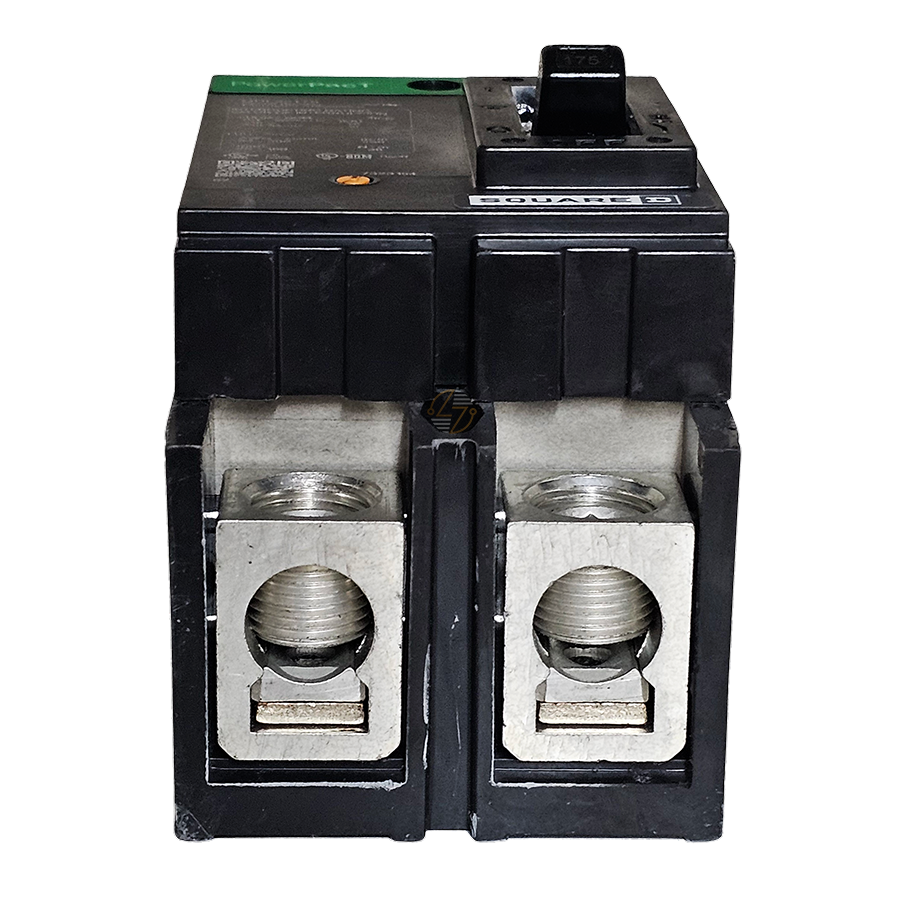

• Easy Setup: Line and load lugs make installation straightforward and secure.
• Space-Saving Design: Compact size makes it easy to fit into existing panels without hassle.


Technical Specifications

• Current Rating: 100 Amps

• Poles: 2

• Voltage: 240VAC, 50/60Hz

• Interrupting Capacity: 10kA

• Trip Unit: Thermal Magnetic

• Dimensions:
  • Height: 6.47 inches
  • Width: 3 inches
  • Depth: 3.93 inches
• Mechanical Life: 1000 cycles (loaded), 5000 cycles (unloaded)

• Mounting: Unit mount with lugs

• Tightening Torque: 247.8 lbf.in (28 N.m)


Material Compliance and Certifications

• Industry Standards: Meets UL 489, CSA, and NOM-003-SCFI-2000 standards
• Environmental Safety: RoHS and REACh compliant; Part of Schneider Electric’s Green Premium™ range, made with PVC-free and halogen-free materials.


Suitability

• This breaker is ideal for commercial buildings, factories, or any setup where consistent, safe power distribution matters. Common uses include motor control centers, HVAC systems, and lighting panels. Its compact design also makes it a great fit for retrofit projects or replacing older breakers without needing major panel changes.
