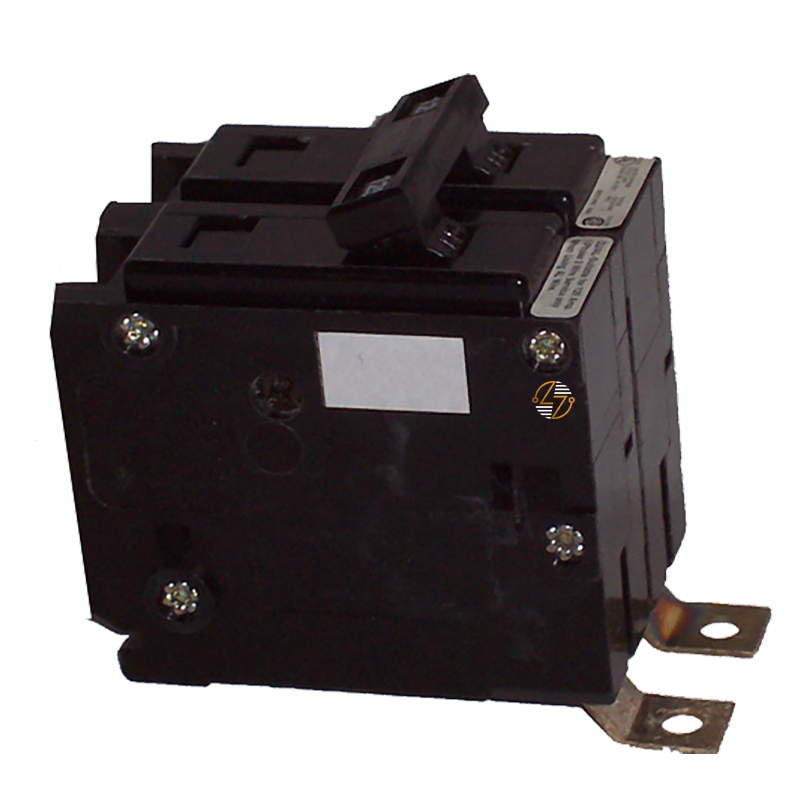

QBHW2100 - 100Amp Circuit Breaker

QBHW2100 - 100Amp Circuit Breaker

Introducing the Eaton QBHW2100 Quicklag Industrial Thermal-Magnetic Circuit Breaker, a high-performance, two-pole solution engineered to provide reliable protection for your electrical systems. Designed by Eaton, a leader in power management solutions, this circuit breaker is ideal for residential, commercial, and light industrial applications. With a robust 100A capacity and a 22 kAIC interrupt rating, the QBHW2100 ensures safety and efficiency, even in demanding environments. Its bolt-on mounting method allows for easy installation, making it a preferred choice for contractors and electricians alike.

Key Features and Benefits

• High Capacity: Supports up to 100 amps, making it suitable for a variety of high-demand electrical applications.
• Superior Protection: Equipped with a 22 kAIC interrupt rating, providing reliable protection against overloads and short circuits.
• Thermal-Magnetic Trip: Combines thermal and magnetic trip mechanisms to respond quickly to both short-term and sustained overloads.
• Bolt-On Mounting: Simplifies installation and replacement, reducing downtime and ensuring a secure fit.
• HACR Rated: Suitable for use with heating, air conditioning, and refrigeration equipment, ensuring versatile application.

Technical Specifications

• UPC: 786679393109
• Amperage: 100A
• Voltage: 120/240V
• Interrupt Rating: 22 kAIC
• Number of Poles: 2
• Mounting Method: Bolt-on
• Dimensions: Length - 4 in, Height - 4.8 in, Width - 2.2 in
• Weight: 0.8 lb

Material Compliance and Certifications

• Certifications: UL Listed, CSA Certified
• Compliances: Meets stringent industry standards for safety and performance, ensuring reliable operation in compliance with CSA and UL guidelines.

Suitability

• The Eaton QBHW2100 is engineered for a wide range of applications, from residential electrical panels to commercial power distribution systems. Its thermal-magnetic trip unit is particularly effective in environments that require dependable protection against both high and low fault conditions. The compact and robust design makes it ideal for retrofitting or new installations in load centers, panelboards, and switchboards.
