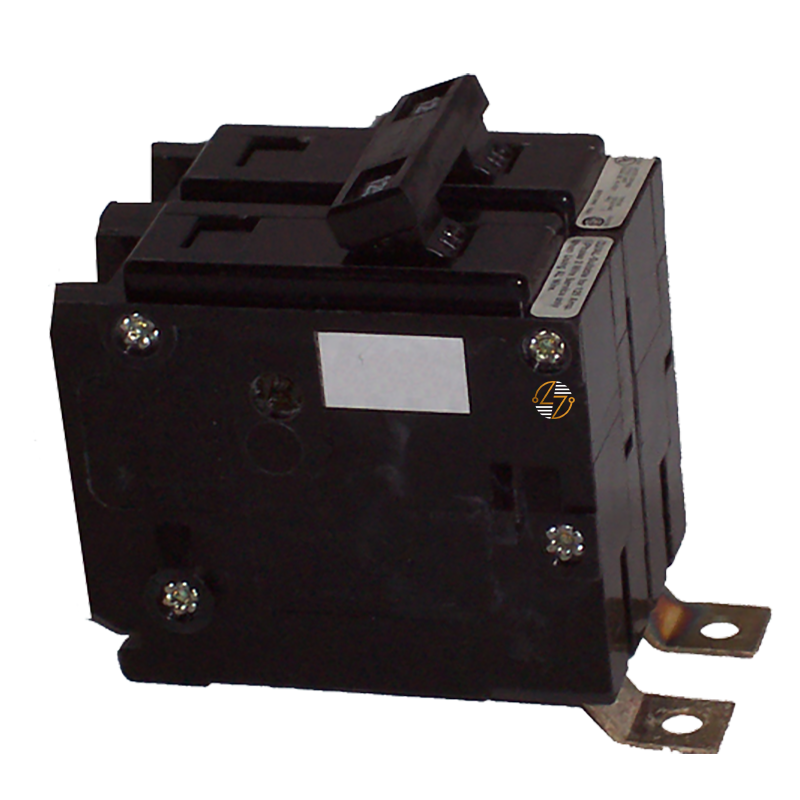

QBHW2060 - 60 Amp Circuit Breaker

QBHW2060 - 60 Amp Circuit Breaker

If you're looking for a QBHW2060 circuit breaker, the important details are pretty straightforward. This is a 60-amp, 2-pole QBHW Quicklag breaker with a bolt-on connection and thermal magnetic protection. It is rated 22kA at 120/240VAC, giving it the interrupting capacity required for compatible applications with those specifications. The breaker is also HACR rated and specified at 40°C. At 3.41 inches high, 2 inches wide, and 2.92 inches deep, it has a compact footprint, but dimensions are only part of the compatibility check. When replacing an existing breaker, compare the QBHW2060 part number, mounting style, amperage, voltage, pole count, and interrupting rating with the requirements of your electrical equipment. That quick check can save a lot of headaches, especially since breakers that look similar aren't necessarily interchangeable.

Key Features and Benefits

• 60 amp rating for circuits requiring a 60A breaker.
• 2-pole design for compatible two-pole applications.
• 22kA A.I.C. at 120/240VAC provides the specified short-circuit interrupting capacity.
• Thermal magnetic protection responds to both overload and short-circuit conditions.
• Bolt-on mounting provides a secure connection in compatible equipment.
• HACR rated, making it suitable for qualifying heating, air-conditioning, and refrigeration applications.
• 40°C rated according to the available specifications.
• Compact 3.41" H x 2.0" W x 2.92" D dimensions.

Technical Specifications

• Part Number: QBHW2060

• Type: QBHW / Quicklag

• Breaker Type: Bolt-On Thermal Magnetic

• Amperage: 60A

• Poles: 2

• Voltage: 120/240VAC

• A.I.C. Rating: 22kA @ 120/240VAC

• HACR Rated: Yes

• Temperature Rating: 40°C

• Dimensions:
  • Height: 3.41 in.
  • Width: 2.0 in.
  • Depth: 2.92 in.

Material Compliance and Certifications

• The available product specifications identify the QBHW2060 as HACR rated and specify a 40°C rating. No other material-compliance or certification information was provided, so additional certification claims should not be assumed without supporting manufacturer documentation.
• Electrical compatibility is important here. Check the breaker markings and applicable equipment documentation before installation to confirm the required amperage, voltage, interrupting rating, number of poles, mounting configuration, and other application requirements.

Where It Works Best

• The QBHW2060 60A 2-pole breaker is intended for compatible electrical distribution equipment designed for the QBHW/Quicklag bolt-on configuration. Its combination of a 60-amp rating, 120/240VAC rating, two-pole construction, and 22kA interrupting capacity makes it a practical choice for appropriately specified electrical distribution and qualifying HVAC applications.
