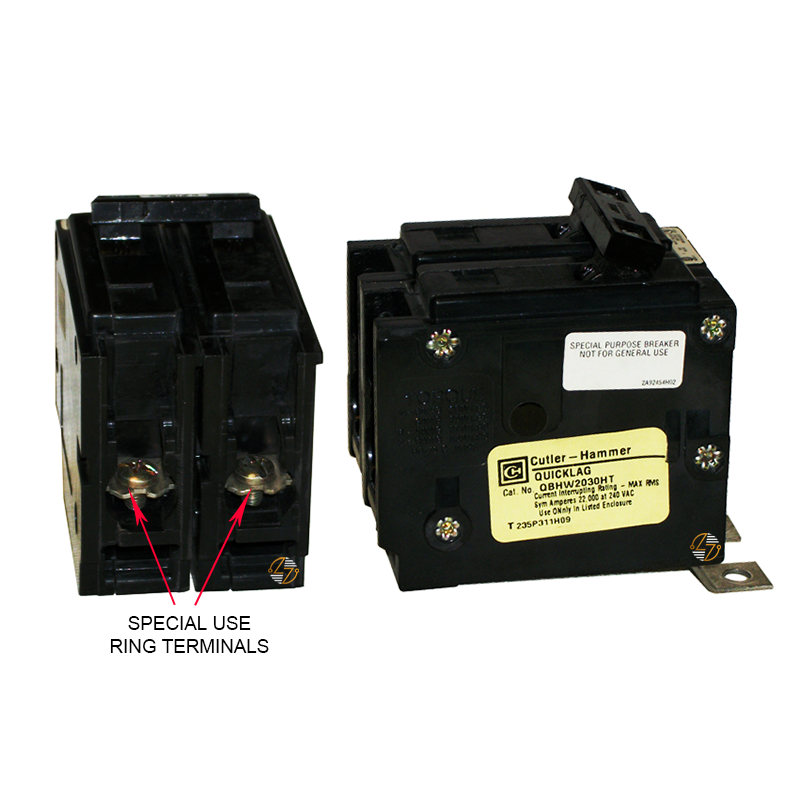

QBHW2030HT - 30 Amp Circuit Breaker
QBHW2030HT - 30 Amp Circuit Breaker
Couldn't load pickup availability
QBHW2030HT - 30 Amp Circuit Breaker
The Eaton QBHW2030HT is a 30-amp, 2-pole thermal magnetic breaker rated for 240V AC. It is commonly used in commercial panels, light industrial systems, and HVAC applications where reliable overcurrent protection is needed. With a 22kAIC interrupting rating, it handles higher fault currents while fitting your standard Eaton Quicklag bolt-on panels.
The breaker features a thermal-magnetic trip unit that responds to overloads and short circuits, and ring or spade lug terminals for flexible wiring. Its compact size (4.8 × 2.2 × 3.9 in.) allows it to fit in many panels without altering the existing layout. The QBHW2030HT is CSA certified, UL listed, and HACR rated, making it suitable for a variety of electrical distribution tasks.
Key Features and Benefits
- 30A current rating, 2-pole design
- Thermal-magnetic trip protection
- Rated for 240V AC systems
- 22kAIC interrupting capacity
- Quicklag bolt-on mounting
- Ring or spade lug terminals for flexible wiring
- HACR rated for HVAC circuits
- Fits Eaton-compatible panels
Technical Specifications
- Catalog Number: QBHW2030HT
- Circuit Breaker Type: QBHW
- Amperage Rating: 30 Amps
- Poles: 2
- Voltage Rating: 240V AC
- Interrupting Capacity: 22kAIC
- Trip Type: Non-Interchangeable
- Mounting Method: Bolt-On Quicklag
- Height × Width × Depth: 4.8 × 2.2 × 3.9 in.
- Weight: 0.55 lb
Material Compliance and Certifications
- UL Listed
- CSA Certified
- HACR rated
- Suitable for commercial and light industrial installations
Where It Works Best
- Commercial electrical panels
- Light industrial distribution systems
- HVAC equipment protection
- Branch and feeder circuits
- Electrical maintenance and replacement projects
- Retrofit installations
- Panels designed for Eaton Quicklag breakers
The QBHW2030HT provides the ratings, mounting, and connection options needed for three-phase or HVAC applications. Its combination of 30A, 2-pole, 240V, and 22kAIC makes it a practical, straightforward replacement in compatible panels.
