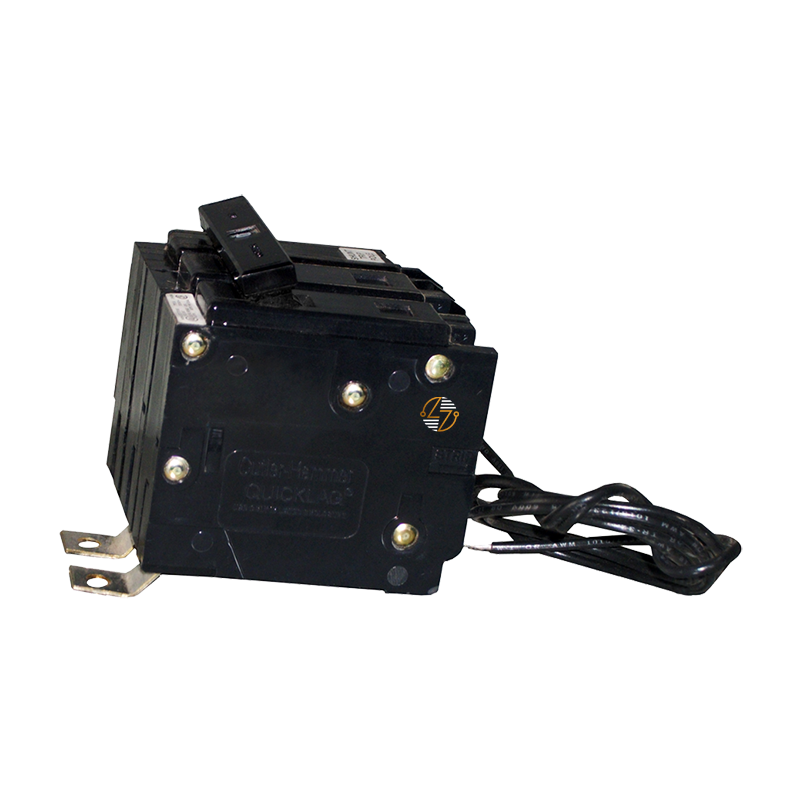

QBHW2020S - 20 Amp Circuit Breaker

QBHW2020S - 20 Amp Circuit Breaker

Keep your industrial electrical system safe and running smoothly with the Eaton QBHW2020S 20‑amp thermal‑magnetic circuit breaker. Designed to protect against both overloads and short circuits, this two‑pole breaker works across 120V, 208V, and 240V systems, making it a versatile choice for many demanding applications. With a high interrupt rating of 22 kAIC, it can stop high fault currents fast, helping prevent equipment damage and minimizing downtime. Its compact size means installation is easier even where space is limited, yet it delivers serious protection and meets top industry standards.

Key Features and Benefits

• High Fault‑Current Protection: 22 kAIC interrupt rating ensures that the breaker can interrupt dangerous surges safely.
• Dual Protection Modes: Combines thermal overload detection with magnetic short‑circuit response so both slow build‑ups and sudden spikes are handled.
• Compatible with Multiple Voltages: Rated for 120V, 208V, 240V systems, making it useful in a wide range of industrial or commercial electrical panels.
• Space‑Saving Construction: Measures only 3.6″ × 4.8″ × 2.2″ and weighs approximately 0.8 lb, so fitting into tight panels is simpler.


Technical Specifications

• Model Number: QBHW2020S

• Amperage Rating: 20 A

• Voltage Rating: 120V, 208V, 240V

• Poles: 2‑pole

• Interrupt Capacity: 22 kAIC

• Dimensions:
  • Length: 3.6 inches
  • Height: 4.8 inches
  • Width: 2.2 inches
• Weight: ~ 0.8 lb

• Shunt Trip Option: Yes


Material Compliance and Certifications

• UL Listed and CSA Certified: Ensuring it meets rigorous safety and performance benchmarks. It complies with current industry standards for thermal‑magnetic protection, so you get electrical safety you can trust plus alignment with regulatory requirements.


Suitability

• The QBHW2020S is especially useful in commercial or industrial settings—think manufacturing facilities, data centers, large HVAC systems, and any location with critical machinery that can’t afford surprises. It fits well in electrical panels where space is tight or where dual voltage options are needed. If you’re upgrading protection in heavy‑duty equipment or installing new circuits in demanding environments, this breaker is a smart choice.
