QBHW2015 - 15 Amp Circuit Breaker

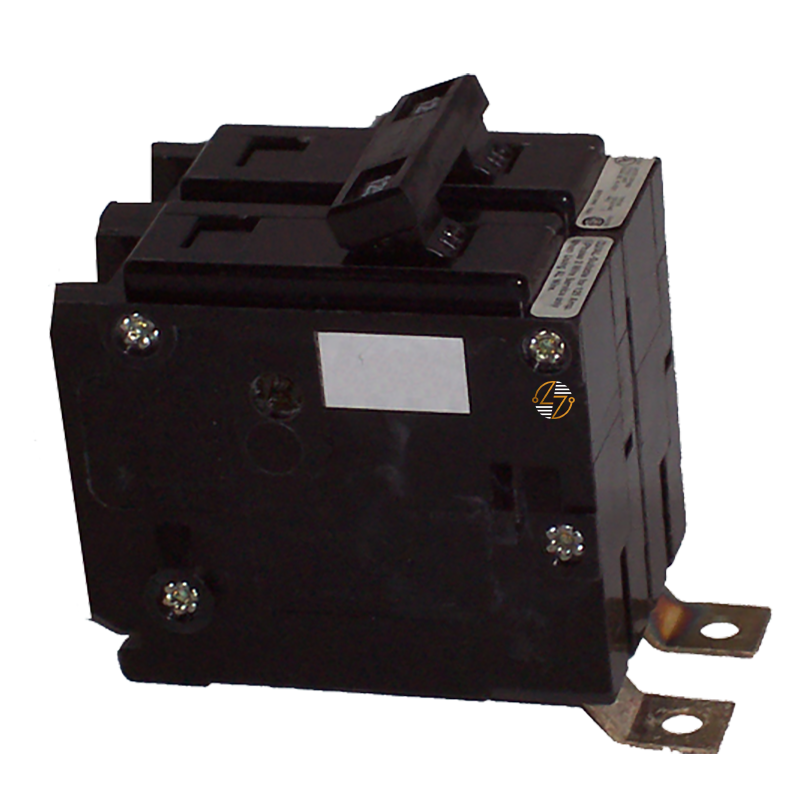

QBHW2015 - 15 Amp Two-Pole Circuit Breaker

Upgrade your electrical protection with the Eaton QBHW2015, a high‑performance two‑pole circuit breaker engineered to defend your circuits against overloads and short circuits. Designed to deliver excellent reliability, this breaker delivers 15 amps of continuous rating at 120/240 VAC, with a 22 kiloampere interrupting capacity (kAIC) that handles large fault currents with ease. The breaker features bolt‑on mounting to provide a secure fit in panelboards and load centers, with dimensions and weight kept compact so installation is straightforward. Whether you’re in a commercial, industrial, or residential environment, the QBHW2015 delivers dependable protection while playing well under demanding conditions.

Key Features and Benefits

• Dual‐Trip Protection: Combines thermal and magnetic trip elements to defend against both long overloads and sudden short circuits—protecting wiring, equipment, and reducing fire risk.
• High Interrupting Capacity: Rated at 22 kAIC at 120/240V, meaning this breaker can interrupt high fault currents safely, making it suitable where large inrushes or potential faults may occur.
• Space‑Smart Design: At approximately 3.9″ × 4.8″ × 2.1″ and weighing just 0.55 lb, it fits into tight spaces without sacrificing strength or durability.
• Bolt‑On Mounting: Ensures a solid, vibration‑resistant connection in load centers and panelboards—easy to install and maintain.

Technical Specifications

• Amperage: 15 Amps

• Voltage Rating: 120 / 240 VAC

• Poles: Two‑Pole

• Interrupting Capacity: 22 kAIC

• Trip Type: Thermal‑Magnetic

• Mounting Method: Bolt‑On

• Dimensions (L×H×W): ~ 3.9 in × 4.8 in × 2.1 in

• Weight: ~ 0.55 lbs


Material Compliance and Certifications

• UL and CSA Certifications: This breaker is UL Listed and CSA Certified—meeting strict North American safety and quality standards.
• HACR Rating: It also carries the HACR (Heating, Air Conditioning, and Refrigeration) rating, making it safe for use with HVAC equipment.
• Material Safety: All materials used are designed for electrical safety, durability, and long service life under typical industrial and commercial usage.

Suitability

• If you manage electrical systems in commercial buildings, industrial facilities, or larger residential installations, this breaker is ideal. It excels in panelboards and load centers where circuits are subject to variable loads and occasional high fault currents. Use it for HVAC systems, machinery with high inrush, or anywhere reliable protection is non‑negotiable.
