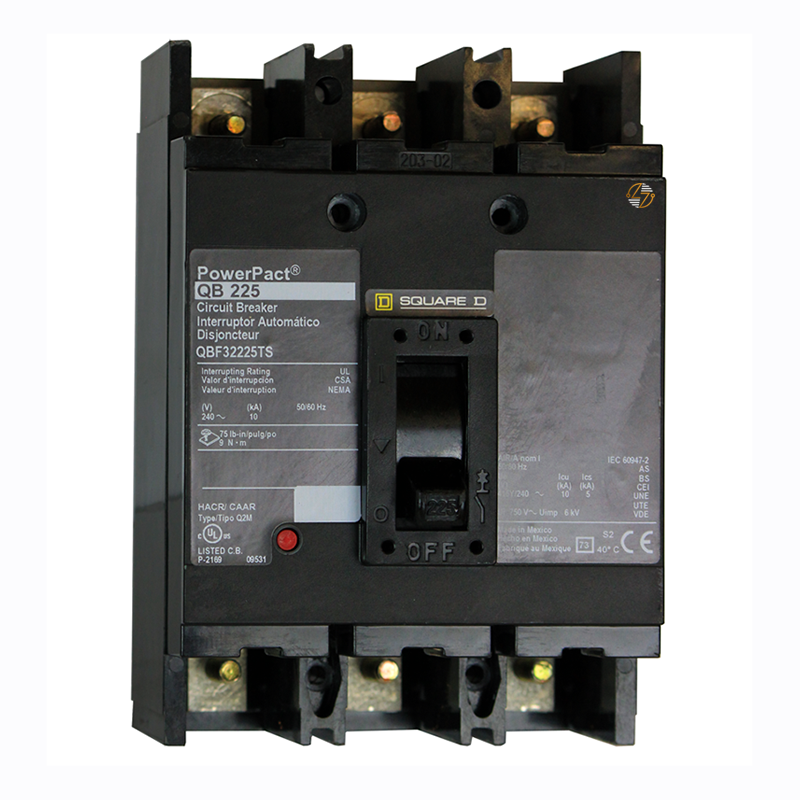

QBF32200TS - 200 Amp Circuit Breaker

QBF32200TS - 200 Amp Circuit Breaker

When your electrical system demands serious protection, the QBF32200TS steps in with confidence. This 200A PowerPacT™ Q-Frame circuit breaker from Schneider Electric delivers reliable overcurrent protection in 240 V AC systems—ideal for installations where durability, safety, and clarity of performance matter most. Its thermal-magnetic trip technology gives you solid protection in the event of excessive current, yet it operates smoothly during normal conditions. Whether for industrial switchgear, commercial electrical panels, or demanding HVAC applications, this breaker is engineered to stand up to the task day after day.

Key Features and Benefits

• High Capacity, Confident Protection — Rated at 200 amps with a 10 kA interrupting capacity, this breaker handles heavy loads with ease, giving you peace of mind under high demand.
• Thermal-Magnetic Trip Unit — Combines slow thermal response (for overloads) and instantaneous magnetic response (for short circuits), giving you a balanced, dependable protection profile.
• Long Service Life — Built to last, it endures up to 1,000 loaded cycles and 5,000 no-load cycles so you won’t be swapping it out prematurely.
• Built for Ease — A push-to-trip button enables safe manual testing, and its busbar-stud connection simplifies installation and upkeep.
• Clear Performance Design — The breaker is laid out with legible markings and robust terminals to reduce wiring error and speed up commissioning.

Technical Specifications

• Line Rated Current: 200 A

• Number of Poles: 3

• Breaking Capacity:
  • 10 kA @ 120/208 V AC
  • 10 kA @ 240 V AC
• Rated Voltage: 240 V AC, 50/60 Hz

• Impulse Withstand: 8 kV (UL)

• Trip Unit Type: Thermal-magnetic

• Magnetic Trip Value: 2,400 A

• Magnetic Hold Current: 1,200 A

• Continuous Rating: 80 % of nominal rating

• Utilization Category: Category A

• Mounting Mode: Unit mount / busbar

• Dimensions (H × W × D): 6.47″ × 4.50″ × 3.93″


Material Compliance and Certifications

• This unit meets a comprehensive set of safety and quality standards: UL, CSA, NEMA, and NOM-003-SCFI-2000. It’s engineered to environmental standards too—fully compliant with RoHS and REACh, and free from mercury, halogens, and PVC. Additionally, it carries the Green Premium™ certification, reflecting a commitment to performance with lower environmental burden.

Where It Works Best

• The QBF32200TS truly shines in demanding commercial, industrial, and large residential systems. Use it in panelboards, motor control centers, or electrical rooms where high loads and system reliability are nonnegotiable. It’s especially well suited for HVAC installations, refrigeration systems, heavy machinery, and any environment needing precise, dependable protection without compromise.
