QBF22200TS - 200 Amp Circuit Breaker

QBF22200TS - 200 Amp Circuit Breaker

Keep your electrical systems running safely and efficiently with the Schneider Electric PowerPacT QBF22200TS 200 Amp Circuit Breaker. Designed for demanding environments, this 2‑pole breaker delivers dependable overcurrent protection for both residential and commercial 240 VAC setups. Whether you’re an electrician upgrading a panel, a contractor working on a high‑load project, or a facility manager maintaining complex power systems, this breaker provides the safety and long‑lasting performance you need.

Key Features and Benefits

• 200 Amp Capacity: Handles high electrical loads effortlessly, making it perfect for industrial machinery, heavy equipment, and large power distribution systems.
• 2‑Pole Configuration: Provides balanced protection across dual circuits, ensuring reliable system safety.
• 240 VAC Compatibility: Flexible enough for residential panels, commercial feeders, and three‑phase applications.
• Thermal‑Magnetic Trip Technology: Combines overload protection with fast response to short circuits for complete system safety.

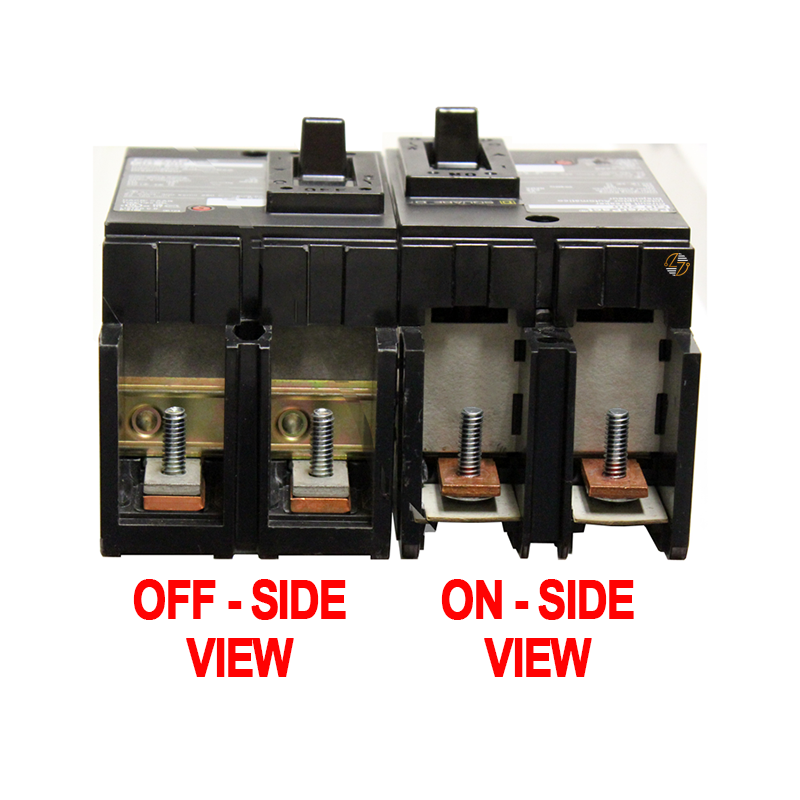

• Simplified Busbar Installation: Studs on both line and load ends allow quick, secure mounting without extra nuts or washers.
• Manual Trip Button: Convenient push‑to‑trip function for easy testing and manual shut‑offs.


Technical Specifications

• Interrupting Rating: 10 kA @ 208Y/120 VAC and 240 VAC – designed to safely handle high fault currents
• Rated Impulse Withstand Voltage: 8 kV – protects against power surges and voltage spikes
• Continuous Operation: 80 % – built to handle sustained heavy use
• Mechanical Endurance: 1,000 loaded cycles / 5,000 no‑load cycles – delivers long service life with minimal maintenance
• Dimensions:
  • Height: 6.47 inches
  • Width: 3 inches
  • Depth: 3.93 inches
• Control Interface: Easy‑grip handle for quick, intuitive operation


Material Compliance and Certifications

• UL, CSA & NOM Certified: Meets strict safety standards for North America and international use.
• Green Premium Product: Fully RoHS and REACH compliant, free from mercury and PVC.
• Environmentally Compliant: Manufactured in accordance with EU and China RoHS regulations.


Where It Works Best

• Industrial Equipment: Provides reliable circuit protection for heavy‑duty machines and high‑demand systems.
• Commercial Power Distribution: Ideal for panelboards, feeders, and multi‑phase electrical networks.
• Residential Electrical Upgrades: Suitable for modern households needing high‑capacity protection.
• Facilities Management: Dependable choice for frequent switching and long‑term operational safety.
