QBA222002 - 200 Amp Circuit Breaker

QBA222002 - 200 Amp Circuit Breaker

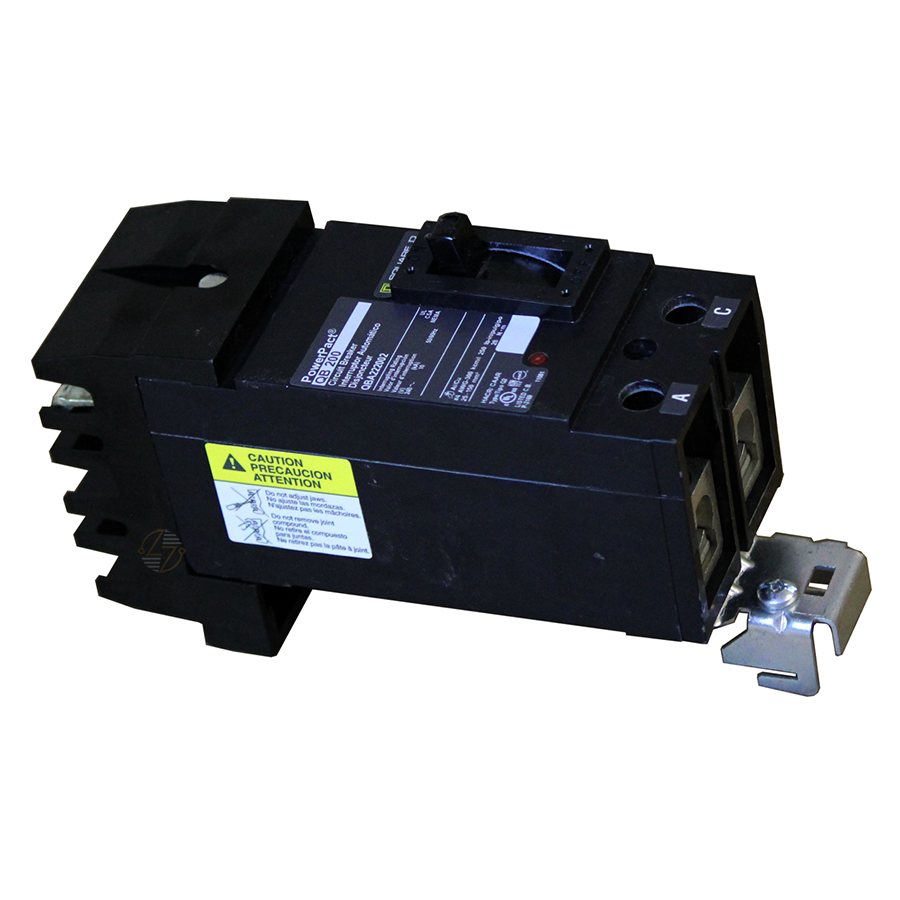

The QBA222002 is a 200-amp, 2-pole circuit breaker designed for use with compatible I-Line electrical distribution equipment. It's a Q-Frame molded case breaker with a plug-on connection, a 240VAC rating, and an interrupting rating of 10kA at 240VAC. Inside, thermal-magnetic trip protection handles two important jobs: responding to sustained overloads and reacting to short-circuit conditions. If you're replacing an existing breaker, the QBA222002 gives you several details to match at a glance: 200 amps, two poles, Q-Frame construction, and an I-Line plug-on configuration. Size matters, too. This breaker measures 7.88 inches high, 3 inches wide, and 4.31 inches deep. Checking those physical and electrical specifications against your equipment is an important part of making sure you have the right breaker for the job.

Key Features and Benefits

• 200 amp, 2-pole configuration for applications requiring these specific circuit ratings.
• Thermal-magnetic trip protection responds to overload and short-circuit conditions.
• 10kA A.I.C. at 240VAC provides a clearly defined interrupting rating.
• Q-Frame molded case construction protects the internal breaker components.
• I-Line plug-on design allows the breaker to connect with compatible I-Line equipment.
• At 7.88" H x 3.0" W x 4.31" D, its dimensions can be checked against the existing breaker or equipment before installation.

Technical Specifications

• Part Number QBA222002

• Type QBA

• Frame Q-Frame

• Poles 2

• Amperage 200A

• Voltage 240VAC

• A.I.C. Rating 10kA at 240VAC

• Trip Type Thermal-Magnetic

• Breaker Style Molded Case Circuit Breaker

• Connection I-Line, Plug-On

• Height 7.88 in.

• Width 3.0 in.

• Depth 4.31 in.


Material Compliance and Certifications

• Certification, listing, and material compliance information should be confirmed using the breaker label and the applicable manufacturer documentation. These details can vary by product and application, so they shouldn't be assumed from the part number or electrical ratings alone. Installation should follow applicable electrical codes, equipment requirements, and manufacturer instructions.

Where It Works Best

• The QBA222002 circuit breaker is a good fit when the equipment calls for a Q-Frame, I-Line plug-on breaker rated at 200 amps and 240VAC. Typical applications may include compatible commercial and industrial electrical distribution equipment, as well as facility maintenance and replacement work.
