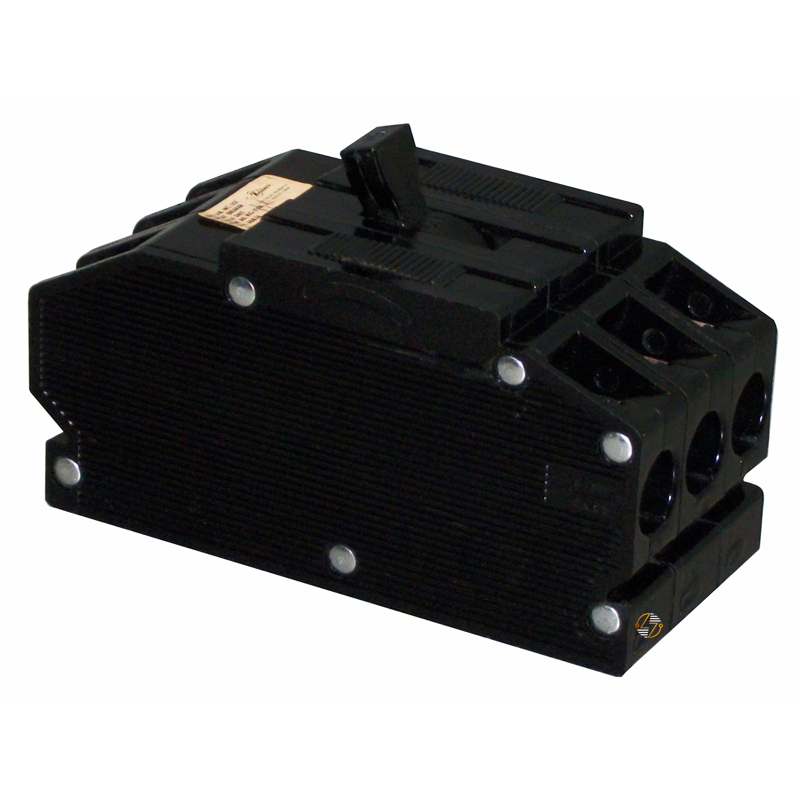

QB2430-70 - 70 Amp Circuit Breaker

QB2430-70 - 70 Amp Circuit Breaker

The QB2430-70 circuit breaker is a 70-amp, 3-pole bolt-on breaker used in your electrical systems that require a QB24-type replacement. It is designed for applications where the existing equipment calls for a breaker with matching specifications, including the amp rating, pole configuration, mounting style, and voltage rating.

This circuit breaker has a 240VAC rating and a 10kA A.I.C. rating, making it suitable for your compatible electrical distribution equipment that requires this level of circuit protection. The bolt-on design allows it to be used in systems built for this type of connection. Its compact size also makes it a practical fit for installations where space and breaker dimensions need to match the original component.

For maintenance teams, electricians, and contractors working on existing electrical systems, choosing the correct replacement breaker is important. The QB2430-70 is built for applications where maintaining the original system specifications is the priority.

Key Features and Benefits

• 70-amp rating for electrical systems requiring a 70-amp circuit breaker.
• 3-pole configuration for compatible three-phase applications.
• QB24 breaker type for matching replacement requirements.
• Bolt-on mounting style for compatible panelboard installations.
• 10kA A.I.C. rating at 240VAC for specified electrical applications.
• Designed for replacement use when the original breaker specifications must be maintained.

Technical Specifications

• Part Number: QB2430-70

• Breaker Type: QB24

• Connection Type: Bolt-On

• Number of Poles: 3

• Amperage Rating: 70 Amps

• A.I.C. Rating: 10kA @ 240VAC

• Dimensions:
  • Height: 4.81 inches
  • Width: 2.25 inches
  • Depth: 2.5 inches

Material Compliance and Certifications

• The QB2430-70 circuit breaker is intended for use in electrical applications where the breaker ratings and installation requirements match the system specifications. Before installation, confirm compatibility with existing equipment and follow applicable electrical codes and the manufacturer's installation requirements.

Where It Works Best

• The QB2430-70 works best in compatible commercial, industrial, and facility electrical systems that require a 3-pole, 70-amp, QB24-type bolt-on circuit breaker. It is a suitable option for maintenance and replacement applications where the goal is to keep an existing electrical system operating with the correct breaker configuration.
