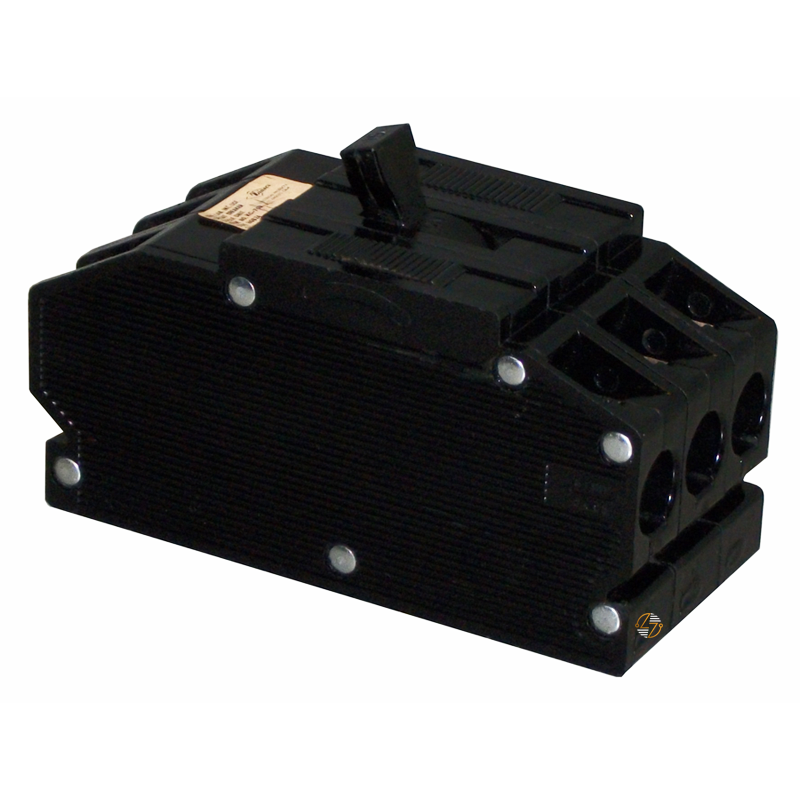

QB2430-60 - 60 Amp Circuit Breaker

QB2430-60 - 60 Amp Circuit Breaker

The QB2430-60 circuit breaker is a 60-amp, 3-pole bolt-on breaker designed for use in compatible electrical distribution systems requiring dependable circuit protection and a proper form, fit, and functional replacement. Built for use in legacy applications, this QB24 type circuit breaker provides a practical solution for maintaining existing equipment while meeting the specified electrical requirements of the system. With a 10 kA.I.C. rating at 240VAC, the QB2430-60 is suited for applications where reliable overcurrent protection is required within its rated specifications. Its compact dimensions and bolt-on mounting design make it a convenient choice for compatible panelboards and electrical equipment where space and installation configuration are important considerations. Like other electrical components designed for industrial and commercial environments, this circuit breaker is built to last when installed and used according to manufacturer specifications.

Key Features and Benefits

• 60 Ampere rating provides circuit protection for applications requiring a 60-amp overcurrent device.
• 3-pole configuration supports three-phase electrical systems and compatible distribution equipment.
• Bolt-on mounting design allows for secure installation in matching electrical assemblies.
• A 10 kA.I.C. rating at 240VAC provides sufficient interrupting capacity for systems operating within these specifications.
• QB24 type compatibility makes it suitable as a replacement component in applicable legacy electrical systems.
• Compact design supports installations where panel space and equipment layout are important factors.
• Built for long-term use with a design intended to support ongoing operation in properly matched electrical applications.

Technical Specifications

• Part Number: QB2430-60

• Type: QB24

• Circuit Breaker Style: Bolt-On

• Poles: 3

• Amperage Rating: 60 Amps

• A.I.C. Rating: 10k at 240VAC

• Height: 4.81 inches

• Width: 2.25 inches

• Depth: 2.5 inches


Material Compliance and Certifications

• The QB2430-60 circuit breaker is manufactured for use in electrical distribution applications and should be installed in accordance with applicable electrical codes, equipment requirements, and manufacturer guidelines. Its ratings and construction are intended to support safe operation when properly matched with compatible electrical systems. Always verify system requirements, enclosure specifications, and applicable certifications before installation.

Where It Works Best

• The QB2430-60 is best suited for compatible panelboards and electrical distribution equipment that require a 60-amp, 3-pole QB24 bolt-on circuit breaker configuration. It is commonly used in maintenance, repair, and replacement applications where an existing electrical system requires a matching breaker with the correct mounting style, pole configuration, and electrical ratings. This circuit breaker is a practical choice for facilities, industrial environments, and commercial electrical systems maintaining established equipment configurations.
