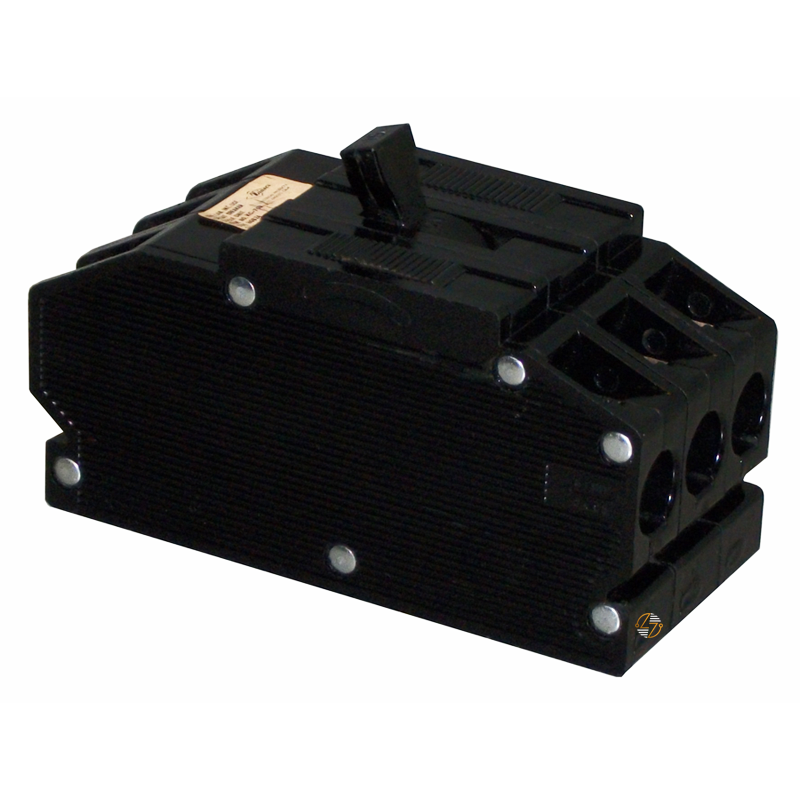

QB2430-15 - 15 Amp Circuit Breaker

QB2430-15 - 15 Amp Circuit Breaker

The QB2430-15 is a 15 amp, three-pole circuit breaker designed for electrical panels that use QB-style bolt-on breakers. It’s a practical solution when an exact match matters—especially in older commercial or industrial systems where the original panel layout and ratings need to stay intact. This breaker is built to match the physical size, mounting style, and electrical characteristics required for proper fit and dependable operation, making it a solid choice for routine maintenance and direct replacement work.

Key Features and Benefits

• Rated at 15 Amps, Three Poles: Provides the correct level of overcurrent protection for three-phase circuits designed around a 15 amp specification.
• 10,000 AIC @ 240 VAC: Capable of interrupting fault currents up to 10 kA within its rated voltage range when installed in a compatible system.
• QB Bolt-On Mounting Style: Bolts directly to the bus, helping maintain consistent contact and reducing movement compared to plug-in styles.
• Straightforward, Compact Design: Sized to fit properly in QB panels without forcing adjustments or modifications during installation.

Technical Specifications

• Amperage Rating: 15 Amp
• Number of Poles: 3
• Interrupting Capacity: 10,000 AIC @ 240 VAC
• Frame Type: QB Bolt-On
• Approximate Dimensions:
  • Width: 2.25 inches
  • Length: 4.81 inches
  • Depth: 2.50 inches
• Approximate Weight: 3.25 lbs

Material Compliance and Certifications

• This breaker is manufactured using established electrical component standards and follows required industry guidelines for commercial and industrial circuit protection devices. It is suitable for applications where meeting published electrical ratings and material requirements is important to system integrity and safety.

Where It Works Best

• The QB2430-15 is best suited for service and replacement work in legacy electrical panels that were originally designed for QB bolt-on breakers. It’s commonly used in commercial buildings, light industrial facilities, and other installations where maintaining the original breaker type and ratings helps preserve system performance and code compliance.
