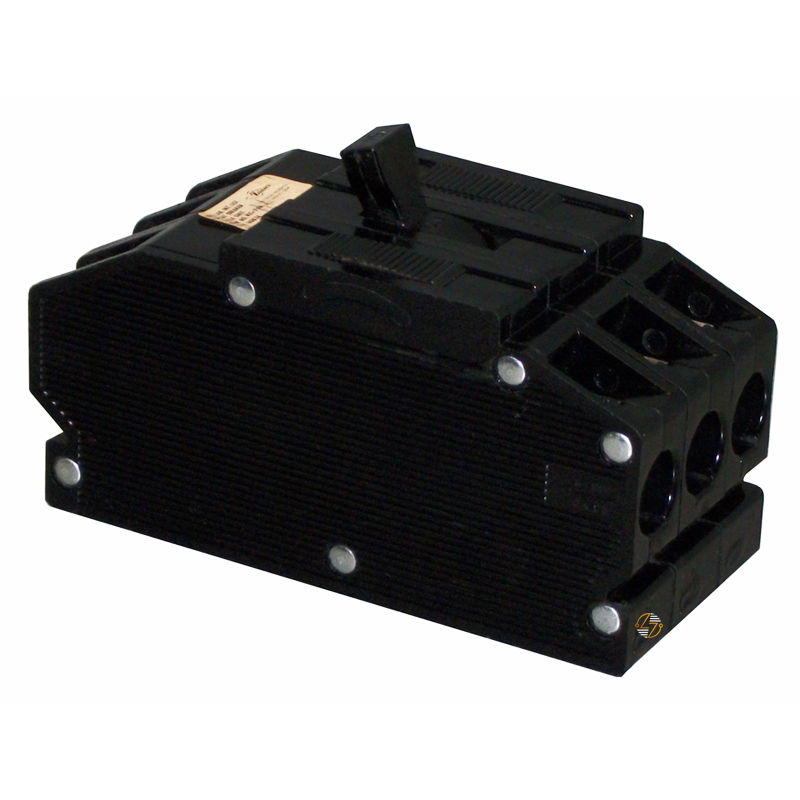

QB2430-100 - 100 Amp Circuit Breaker

QB2430-100 - 100 Amp Circuit Breaker

The QB2430-100 100 Amp circuit breaker is a straightforward solution for systems that use QB-frame bolt-on breakers. It’s made to handle normal electrical loads while stepping in when there’s an overload or short circuit. Installation is simple since it mounts directly into compatible panelboards, which helps cut down on downtime during replacements or service work. The breaker’s metal housing and clear factory markings also make it easier to work with during installs and inspections. It’s commonly used in residential panels, commercial spaces, and light industrial setups where consistent performance is expected.

Key Features and Benefits

• Protects Against Overloads and Shorts: Trips when current levels go beyond safe limits, helping prevent damage to wiring and connected equipment.
• QB-Frame Bolt-On Style: Secures directly to the panelboard and stays firmly seated once installed.
• Three-Pole Configuration: Works well in 3-phase applications such as motors, HVAC units, and other commercial equipment.
• Metal Case: Helps protect internal parts in typical electrical panel environments.
• Clear Identification: Labels are easy to read, which helps during wiring, servicing, or routine checks.

Technical Specifications

• Poles: 3
• Amp Rating: 100 Amp
• Voltage Rating: 240 VAC
• Interrupt Rating: 10 kA
• Frame Type: QB
• Mounting: Bolt-On
• Dimensions:
  • Width: 2.25 inches
  • Length: 4.81 inches
  • Depth: 2.50 inches
• Approximate Shipping Weight: 3.25 lb

Material Compliance and Certifications

• UL Listed and CSA Recognized
• RoHS Compliant
• Metal housing for added protection of internal components

Where It Works Best

• This breaker is a good fit for commercial electrical panels, small industrial control systems, vehicle service shops, and residential load centers that accept QB-frame breakers. It’s often used in 3-phase power distribution for HVAC systems, motor circuits, and general electrical equipment where reliable circuit protection is needed without extra complexity.
