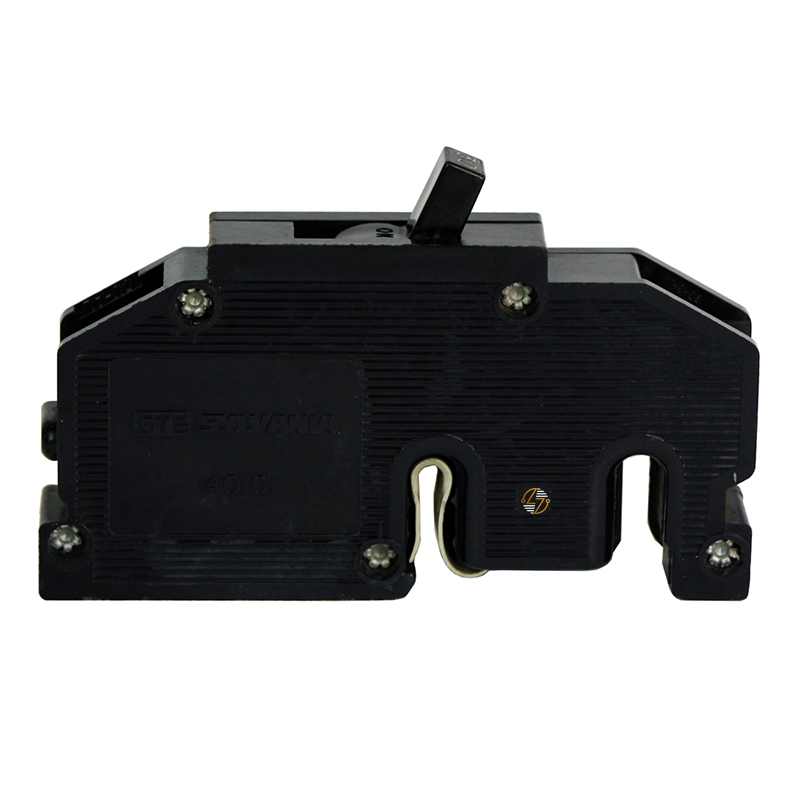

Q50 - 50Amp Circuit Breaker

Q50 - 50Amp Circuit Breaker

The Q50 50 amp single-pole circuit breaker protects 120VAC electrical circuits from overloads and short circuits. Electricians commonly use it in residential and commercial panels that require dependable circuit protection. The Q-frame, plug-on design allows the breaker to snap into compatible panels quickly, which helps reduce installation time during service or replacement work. With a 10kA interrupting rating, the Q50 safely clears fault conditions while supporting normal operating loads.

Key Features and Benefits

• 50 Amp Protection: Provides 50 amp protection for higher-demand branch circuits.
• Single-Pole Design: Uses a single-pole design for standard 120VAC applications.
• Plug-On Connection: Snaps into compatible panels with a plug-on connection.
• Q-Frame Compatibility: Fits panels designed for Q-frame breakers.
• Reliable Performance: Supports consistent performance in everyday electrical use.

Technical Specifications

• Poles: 1
• Frame Type: Q
• Amperage: 50A
• Voltage Rating: 120VAC
• Interrupting Capacity: 10kA
• Dimensions:
  • Width: 0.75 inches
  • Length: 4.81 inches
  • Depth: 2.50 inches
• Approximate Weight: 1.75 lbs
• Mounting Style: Plug-On

Material Compliance and Certifications

• The Q50 circuit breaker uses quality materials that support reliable electrical performance over time.
• It meets applicable industry safety and performance standards and supports proper installation in code-compliant electrical systems.

Where It Works Best

• Electricians install the Q50 circuit breaker in residential panels, commercial buildings, and light industrial applications. It works well for maintenance, replacement, and new installations where a 50 amp single-pole breaker and Q-frame compatibility are required.
