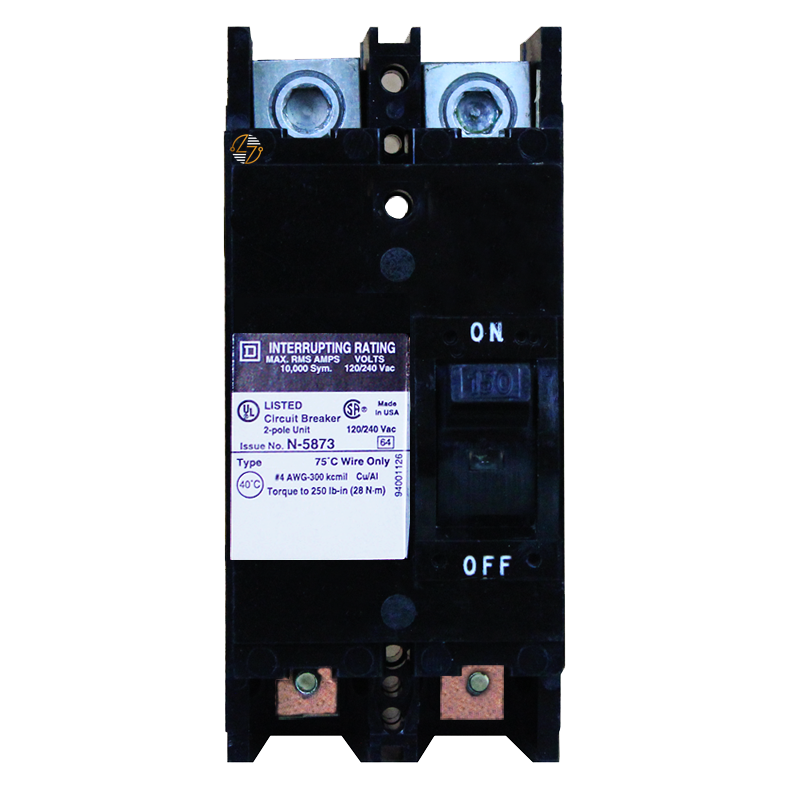

Q2M2200MT - 200 Amp Circuit Breaker

Q2M2200MT - 200 Amp Circuit Breaker

Need a Q2M2200MT circuit breaker for an existing electrical system? This 200-amp, 2-pole thermal-magnetic breaker is a Type Q2MT unit rated at 10 kAIC at 120/240 VAC. It has a non-interchangeable trip unit, along with lug terminals on the line side and 1/4-20" studs on the load side. Those connection details are worth checking closely when you're replacing a breaker in older equipment, since amperage alone doesn't tell the whole story. The Q2M2200MT measures 6.5 inches high, 3 inches wide, and 3.13 inches deep, giving you another useful reference when checking fit. For maintenance and replacement work, the goal is straightforward: match the breaker to the specifications of the existing equipment. When your application calls for this combination of amperage, voltage, poles, interrupting rating, dimensions, and terminal style, the Q2M2200MT provides the required form, fit, and function. It's a straightforward circuit breaker design that's built to last in the applications it was designed to serve.

Key Features and Benefits

• 200-amp rating for compatible equipment that requires a 200-amp breaker.
• 2-pole design for the intended 120/240VAC application.
• Thermal-magnetic operation provides overload and overcurrent circuit protection within the breaker's specified ratings.
• Rated 10 kA at 120/240VAC.
• The Non-interchangeable trip unit is part of the breaker configuration.
• Lug terminals on the line side provide the specified line connection.
• 1/4-20" studs on the load side match the breaker's original load-side connection arrangement.
• The Type Q2MT configuration makes it suitable for compatible systems that call for this breaker type.
• Clearly defined dimensions make it easier to compare the breaker with the unit being replaced.

Technical Specifications

• Part Number: Q2M2200MT

• Type: Q2MT

• Breaker Style: Thermal Magnetic

• Trip Unit: Non-Interchangeable

• Poles: 2

• Amperage: 200A

• Voltage: 120/240VAC

• A.I.C. Rating: 10k at 120/240VAC

• Height: 6.5 in.

• Width: 3.0 in.

• Depth: 3.13 in.

• Line Side: Lug Terminals

• Load Side: 1/4-20" Studs


Material Compliance and Certifications

• Specific material compliance information and certification details were not provided with the available specifications for the Q2M2200MT. If your application requires a particular listing, certification, or material standard, check the markings on the breaker and the applicable equipment documentation before installation.
• Requirements can differ depending on the equipment and application, so compliance should be confirmed for the system where the breaker will actually be used.

Where It Works Best

• The Q2M2200MT 200A 2-pole breaker is intended for compatible electrical equipment that calls for a Type Q2MT breaker with these specific ratings and physical characteristics. It's particularly relevant when maintaining legacy electrical distribution equipment and the objective is to preserve the existing system's required form, fit, and function.
