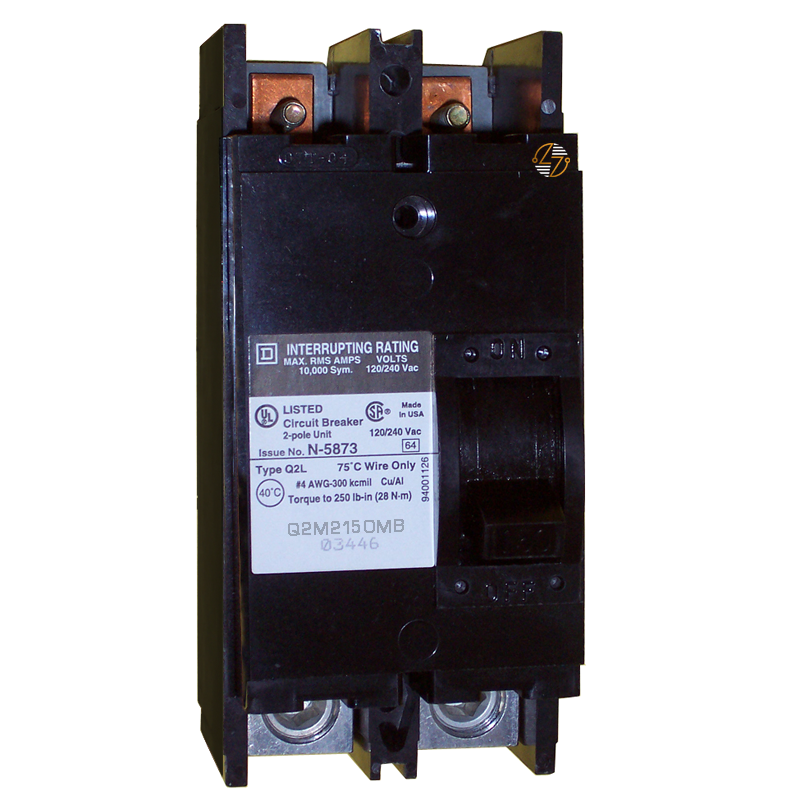

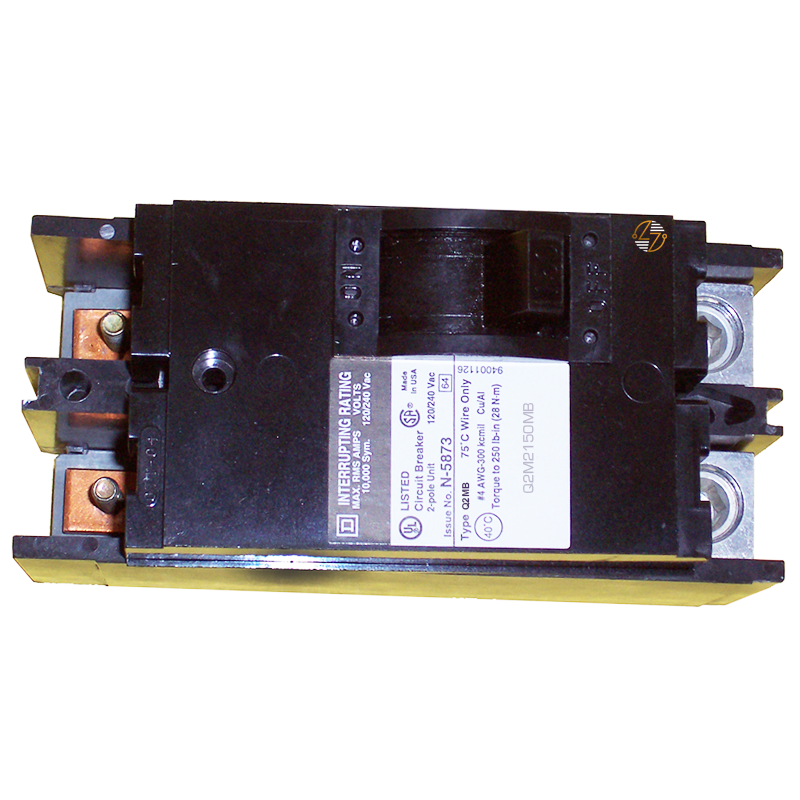

Q2M2200MB - 200 Amp Circuit Breaker

Q2M2200MB - 200 Amp Circuit Breaker

Need a Q2M2200MB circuit breaker for an existing electrical setup? With older equipment, the small details are often the ones that matter most. This 200-amp, 2-pole thermal-magnetic breaker is rated 10k A.I.C. at 120/240VAC and uses a non-interchangeable trip unit. On the connection side, you'll find 1/4-20" studs on the line side and lug terminals on the load side. The breaker measures approximately 6.5" high, 3.0" wide, and 3.13" deep. Those dimensions, along with the Q2MB type and terminal arrangement, are worth checking carefully when you're matching a breaker to existing equipment. Thermal-magnetic operation provides protection against both sustained overloads and short-circuit conditions. For compatible legacy applications that require these specifications, the Q2M2200MB offers a straightforward way to maintain the original form, fit, and function. It's a practical electrical component that's built to last when correctly matched, installed, and maintained.

Key Features and Benefits

• 200A, 2-pole configuration for compatible electrical applications.
• Thermal-magnetic operation provides overload and short-circuit protection.
• Rated 120/240VAC with a 10 kA.I.C. interrupting rating.
• Q2MB breaker type to match compatible existing equipment.
• Uses a non-interchangeable trip unit.
• 1/4-20" line-side studs provide a clearly defined connection configuration.
• Load-side lug terminals simplify identification when matching an existing breaker.
• Measures 6.5" H x 3.0" W x 3.13" D, making it easier to compare physical fit before installation.
• A solid, built-to-last design for properly matched electrical applications.

Technical Specifications

• Part Number: Q2M2200MB

• Type: Q2MB

• Breaker Type: Thermal Magnetic Circuit Breaker

• Trip Unit: Non-Interchangeable

• Poles: 2

• Amperage: 200A

• Voltage: 120/240VAC

• A.I.C. Rating: 10k at 120/240VAC

• Height: 6.5 in.

• Width: 3.0 in.

• Depth: 3.13 in.

• Line Side: 1/4-20" Studs

• Load Side: Lug Terminals


Material Compliance and Certifications

• Specific certification and material compliance information was not included in the available specifications for the Q2M2200MB. Because these requirements can differ from one installation to another, it's better not to make assumptions. Check the breaker label and applicable technical documentation to confirm any listing, certification, or material-compliance requirements for your application.

Where It Works Best

• The Q2M2200MB makes the most sense in compatible legacy electrical systems where the existing equipment requires this breaker type or matching electrical and physical characteristics. It may be suitable for replacement applications requiring a 200-amp, 2-pole, 120/240VAC thermal-magnetic circuit breaker with a 10kA I.C. rating.
