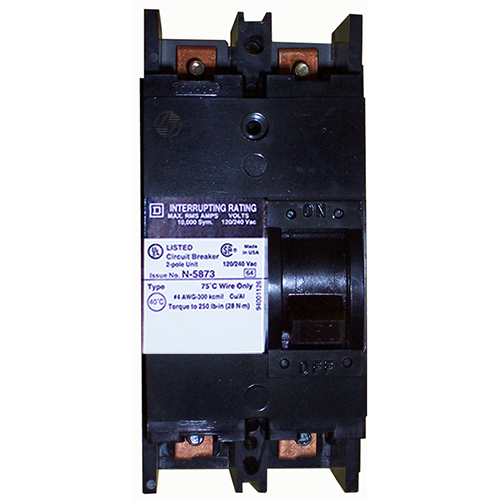

Q2M2200 - 200 Amp Circuit Breaker

Q2M2200 - 200 Amp Circuit Breaker

The Q2M2200 is built for electricians, contractors, and facility managers who need a dependable breaker that won’t quit under pressure. Rated at 200 amps and 240 volts, this 2-pole breaker is designed to keep your power distribution safe and steady—whether you’re working on a busy commercial jobsite, upgrading an industrial panel, or handling a large residential project. With its thermal-magnetic trip technology, it reacts fast to overloads and short circuits, protecting your equipment and keeping downtime to a minimum.

Key Features and Benefits

• Handles Heavy Loads: 200A at 240VAC gives you the capacity you need for bigger jobs.
• Built-In Safety: Thermal-magnetic trip mechanism kicks in automatically during overloads or fault currents (up to 2400A).

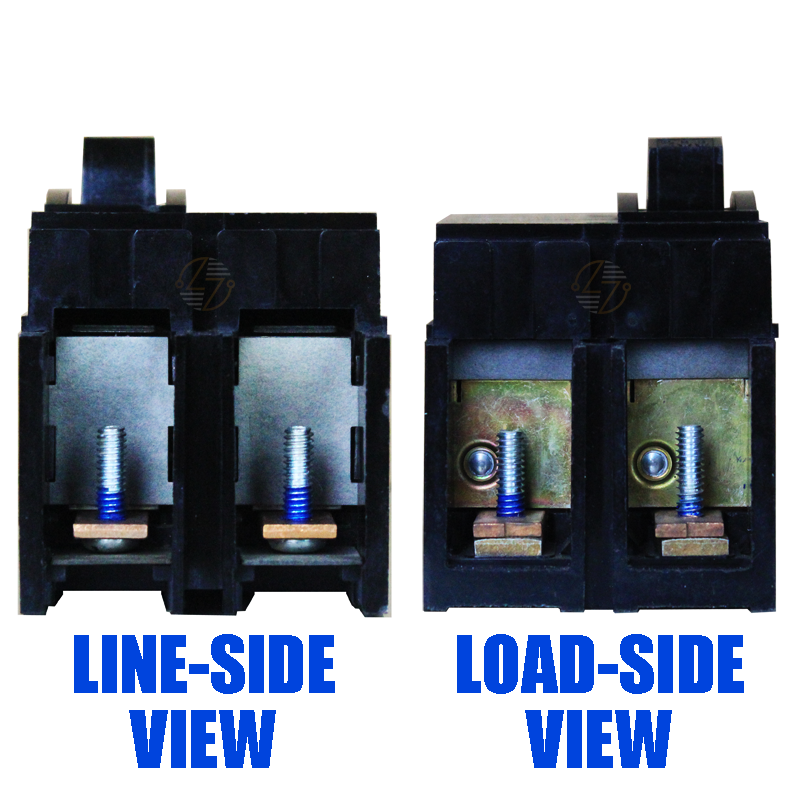

• Solid Connections: ¼-20” threaded studs on both line and load sides make installation straightforward and secure.
• Made for Continuous Use: Rated to safely run at 80% of its full load, ideal for demanding systems that run all day.

Technical Specifications

• Amperage: 200A
• Poles: 2
• Voltage: 240 VAC, 50/60 Hz
• Interrupting Rating: 10 kA @ 240 VAC
• Trip Type: Thermal-Magnetic
• Magnetic Trip Threshold: 2400A
• Duty Cycle: 80% continuous
• Dimensions:
  • Height: 6.47 inches
  • Width: 3.00 inches
  • Depth: 3.93 inches
• Mounting: Unit-mounted for busbar systems

Material Compliance and Certifications

• Environmentally Friendly: PVC-free and halogen-free
• Regulatory Compliance: Meets RoHS and REACH requirements
• Certifications: Certified to UL, CSA, and NOM standards for safe, approved use across multiple regions

Suitability

• Residential panels that need high-capacity protection
• Commercial switchboards and metering setups
• Industrial motor control centers and heavy-duty machinery
• New builds and renovation projects where reliability and safety matter
