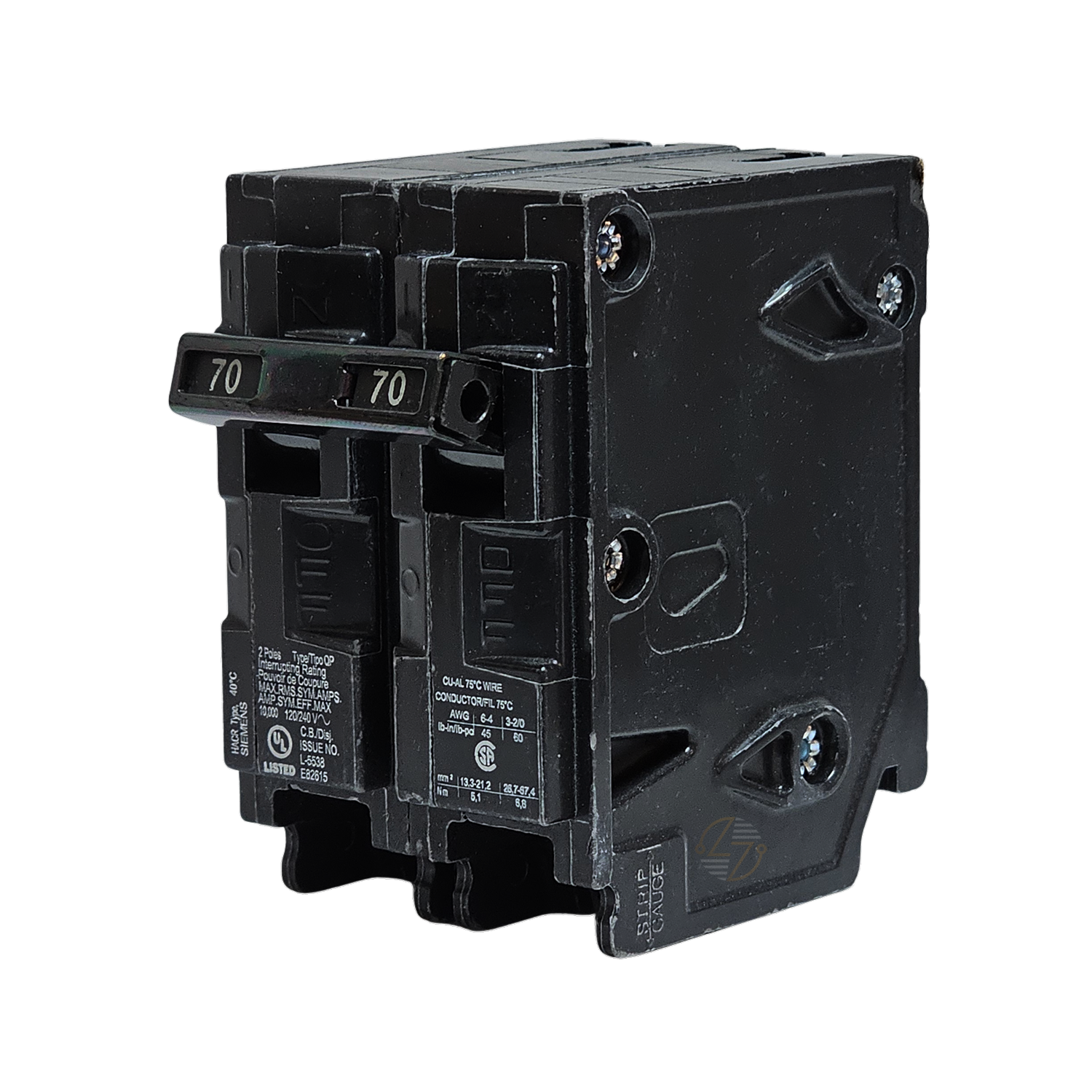

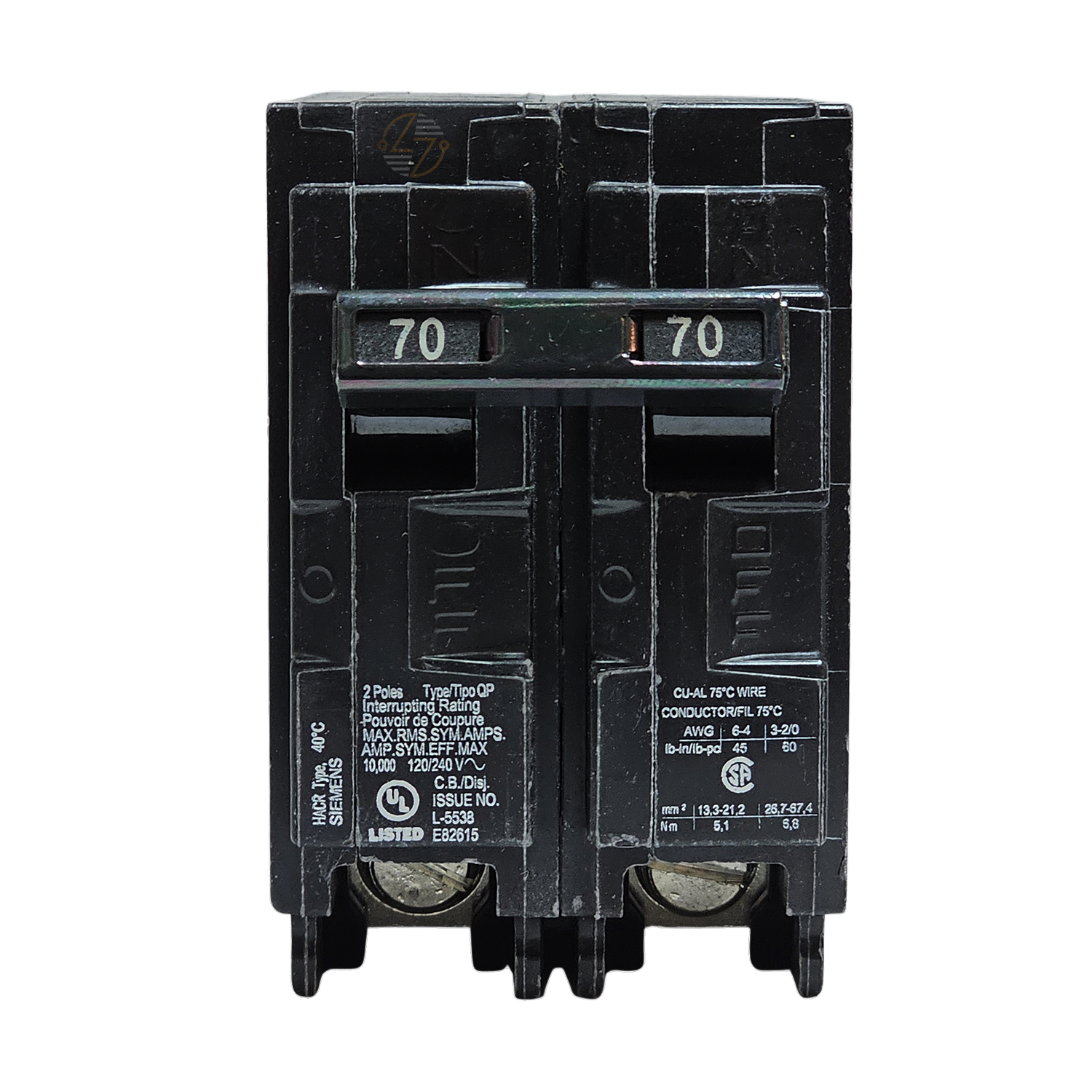

Q270 - 70Amp Circuit Breaker

Q270 - 70Amp Circuit Breaker

Looking for a Q270 circuit breaker? This 70-amp, 2-pole Type QP breaker is a plug-in unit rated for 120/240 VAC, with a 10 kA A.I.C. rating. It's a practical choice when your panel or equipment calls for these specific electrical ratings and a Type QP configuration. The Q270 is also HACR-rated and rated at 40°C so that it can be used in qualifying heating, air-conditioning, and refrigeration applications. At 3.13 inches high, 2 inches wide, and 2.56 inches deep, it has a compact footprint that makes it easy to compare with an existing breaker or the requirements of compatible equipment. If you're replacing a breaker, take a minute to check more than just the 70-amp rating. Matching the part number, breaker type, poles, voltage, interrupting rating, and connection style can help you determine whether the Q270 is the right fit.

Key Features and Benefits

• 70-amp rating for applications requiring a 70-amp circuit breaker.
• Two-pole design for compatible 2-pole circuits.
• Type QP breaker configuration.
• Plug-in connection for use with compatible electrical equipment.
• 10k A.I.C. at 120/240VAC for the specified interrupting capacity.
• HACR-rated, making it suitable for qualifying heating, air-conditioning, and refrigeration applications.
• 40°C rated for the specified operating conditions.
• Compact 3.13" x 2.0" x 2.56" dimensions.

Technical Specifications

• Part Number: Q270

• Type: QP

• Amperage: 70 Amps

• Poles: 2

• Voltage: 120/240VAC

• A.I.C. Rating: 10k @ 120/240VAC

• Connection: Plug-In

• Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Height: 3.13 in.
  • Width: 2.0 in.
  • Depth: 2.56 in.

Material Compliance and Certifications

• The information available for the Q270 identifies it as HACR-rated and rated at 40°C, with a 10k A.I.C. rating at 120/240VAC. No additional material, compliance, or certification information was supplied with the product specifications, so no additional certifications are claimed here.
• For installations where a particular certification, code requirement, or material standard applies, check the markings and documentation on the breaker before installation.

Where It Works Best

• The Q270 70-amp breaker is best suited for compatible electrical equipment that requires a 2-pole, Type QP plug-in circuit breaker with a 120/240 VAC rating. It can be a good match for residential or light commercial electrical applications, as well as qualifying HVAC and refrigeration equipment where an HACR-rated breaker with these specifications is required.
