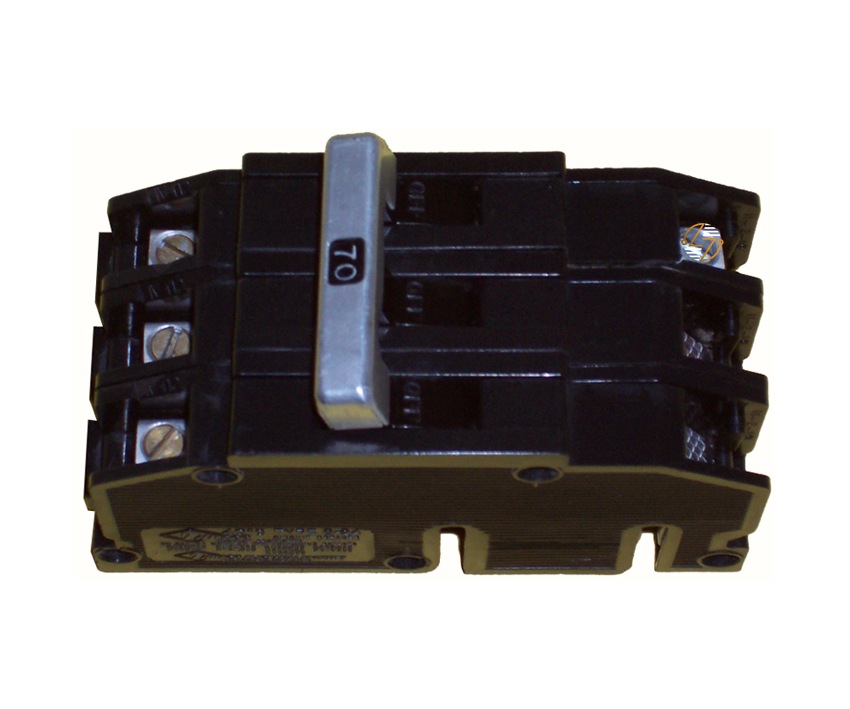

Q2431-70 - 70A Circuit Breaker

Q2431-70 - 70A Circuit Breaker

Need to match a Q2431-70 circuit breaker in an existing electrical system? This Type Q24 breaker is a 3-pole, 70-amp plug-on circuit breaker with a 10 kA I.C. rating at 240 VAC. One detail you'll want to pay close attention to is the connection arrangement. Two legs plug in, while the third leg feeds through. That's an important distinction when you're checking an existing breaker for proper form, fit, and function as a replacement.

The Q2431-70 measures 4.81 inches high, 2.25 inches wide, and 2.5 inches deep. Those dimensions, along with the Q24 type, 3-pole configuration, 70A rating, and connection style, should be checked against the breaker being replaced. In older electrical equipment, even small differences can matter. Matching the complete set of specifications is a better approach than choosing a breaker based on amperage alone. When your equipment requires this configuration, the Q2431-70 offers a straightforward way to maintain the system's intended setup. It's built to last and designed for use within its stated electrical ratings.

Key Features and Benefits

• 70-amp rating for applications requiring a 70A circuit breaker.
• 3-pole configuration for compatible three-pole electrical equipment.
• Type Q24 design for systems that use this particular breaker configuration.
• Plug-on style with two legs that plug on and a third leg that feeds through.
• 10 kA I.C. at 240 VAC to match applications requiring these electrical ratings.
• Known physical dimensions make it easier to compare the breaker with an existing unit.
• A practical form, fit, and functional replacement when all application requirements match.
• Built to last when properly installed and operated within its specified ratings.

Technical Specifications

• Part Number: Q2431-70

• Type: Q24

• Product: Plug-On Circuit Breaker

• Poles: 3

• Amperage: 70A

• A.I.C. Rating: 10k

• Voltage: 240VAC

• Connection: Two-leg plug-on; third leg feeds through

• Dimensions:
  • Height: 4.81 in.
  • Width: 2.25 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Specific certification and material-compliance information is not included in the available specifications for the Q2431-70. UL, CSA, RoHS, REACH, and other certifications or compliance standards should not be assumed unless they can be confirmed from the breaker markings or supporting product documentation.
• For an application that requires a specific certification or listing, verify the individual breaker's markings and the electrical equipment's requirements before installation.

Where It Works Best

• The Q2431-70 70A 3-pole breaker is a good fit for compatible existing and legacy electrical equipment that was designed around the Type Q24 configuration. It's especially relevant when you're replacing an existing breaker and need to stay with the same physical arrangement and electrical characteristics.
