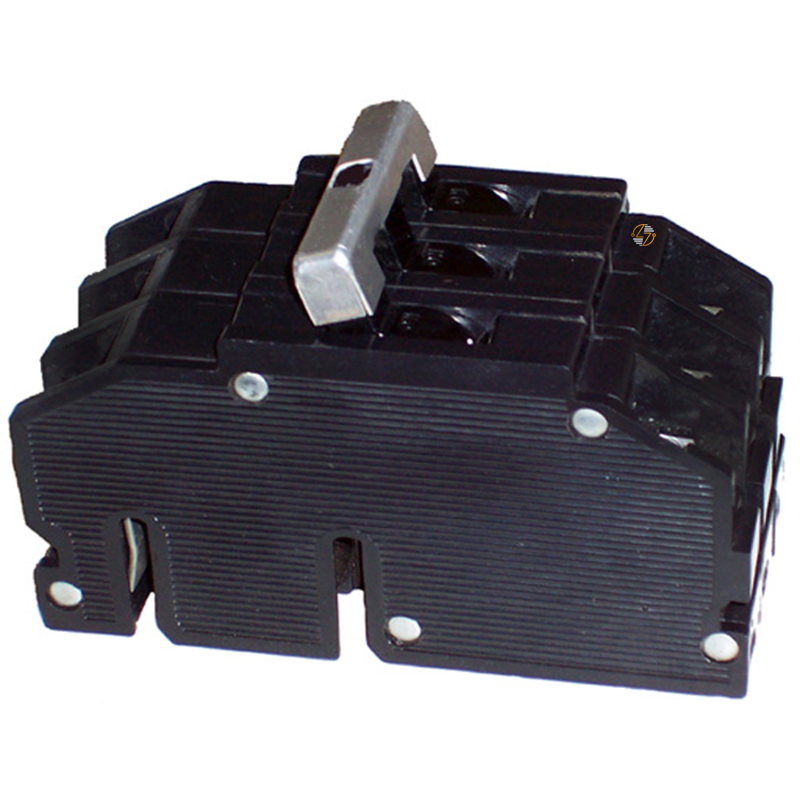

Q2430-70 - 70 Amp Circuit Breaker

Q2430-70 - 70 Amp Circuit Breaker

Need a Q2430-70 circuit breaker for an existing installation? This Type Q24 plug-on breaker is rated at 70 amps and has a 3-pole configuration, with an interrupting rating of 10 kA at 240 VAC. It's a good fit for maintenance and replacement work where the existing equipment calls for this particular breaker style and rating. At 4.81 inches high, 2.25 inches wide, and 2.5 inches deep, the Q2430-70 also provides clear dimensions to check against the breaker you're replacing. That's especially helpful with older electrical equipment, where getting the right physical fit can be just as important as matching the electrical specifications. If your system requires a Q24, 70A, 3-pole plug-on breaker with these ratings and dimensions, the Q2430-70 may be the form, fit, and functional replacement you're looking for. It's a straightforward breaker built to last when properly installed and used within its specified ratings.

Key Features and Benefits

• 70-amp rating for compatible electrical applications requiring a 70A breaker.
• Three poles for equipment designed around a 3-pole breaker configuration.
• Rated 10kAIC at 240VAC.
• Plug-on design for compatible Type Q24 electrical equipment.
• Clearly defined dimensions make it easier to compare the breaker with an existing unit before installation.
• Well-suited to legacy equipment maintenance and replacement, where matching the original form, fit, and function is the priority.
• Built to last when correctly applied and operated within its stated ratings.

Technical Specifications

• Part Number: Q2430-70

• Type: Q24

• Product: Circuit Breaker

• Configuration: Plug-On

• Poles: 3

• Amperage: 70A

• Voltage: 240VAC

• A.I.C. Rating: 10kA at 240VAC

• Dimensions:
  • Height: 4.81 in.
  • Width: 2.25 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Material compliance and certification details were not provided with the available specifications for the Q2430-70. Because requirements can differ from one installation to another, check the product labeling and the documentation for the equipment in which the breaker will be used. Any required listings, approvals, or code requirements should be confirmed before installation.
• As with any circuit breaker replacement, the part should be selected and installed by qualified electrical personnel who can verify that its ratings and configuration are appropriate for the application.

Where It Works Best

• The Q2430-70 makes the most sense for existing electrical equipment designed to accept a Type Q24 plug-on circuit breaker. It's particularly relevant for maintenance and repair work involving legacy systems where the objective is simple: replace the existing breaker with one that matches the required configuration rather than changing the system.
