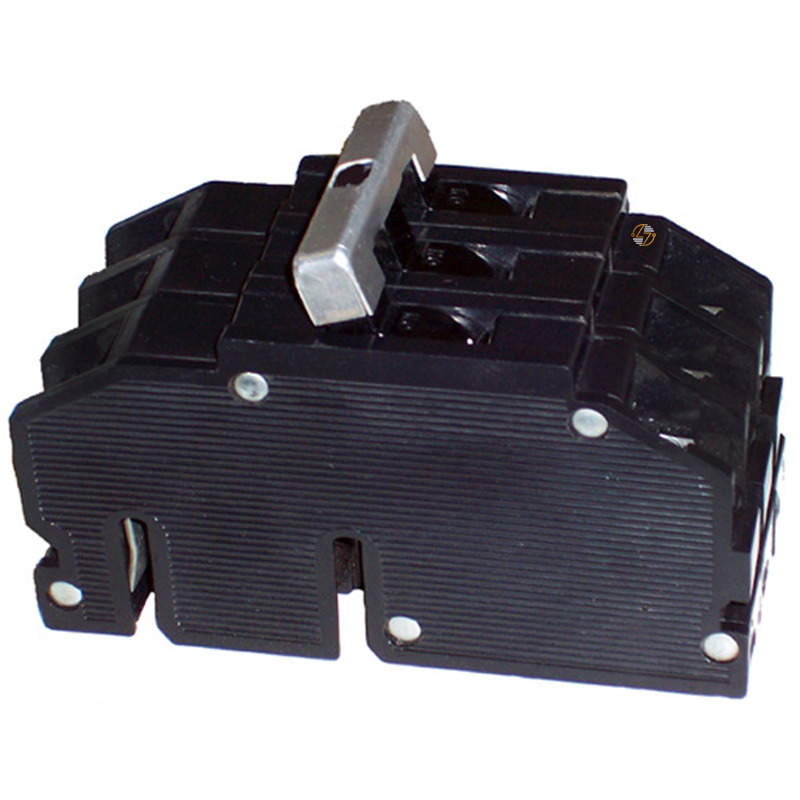

Q2430-60 - 60 Amp Circuit Breaker

Q2430-60 - 60 Amp Circuit Breaker

When you're replacing a breaker in existing equipment, getting the details right matters. The Q2430-60 is a 60-amp, 3-pole, Type Q24 plug-on circuit breaker rated at 10k AIC at 240VAC. It's intended for compatible electrical equipment that calls for this particular breaker type, mounting configuration, and electrical rating. The breaker measures 4.81 inches high, 2.25 inches wide, and 2.5 inches deep, so those dimensions can also be checked against the breaker currently in the equipment. This is especially helpful with older or legacy electrical systems, where maintaining the correct form, fit, and function is often the priority. If you're trying to match an existing Q2430-60, don't rely on the 60-amp rating by itself. Check the part number, number of poles, Q24 type, voltage, AIC rating, plug-on configuration, and dimensions as well. When properly matched to the intended application, this breaker provides a straightforward way to keep compatible equipment in service. It's built to last when correctly installed and used within its specified ratings.

Key Features and Benefits

• 60-amp rating for applications specifically designed for a 60A breaker.
• Three poles to match compatible 3-pole electrical configurations.
• Rated 10k AIC at 240VAC.
• Type Q24 design for equipment that requires this breaker type.
• Plug-on mounting helps maintain the original installation configuration in compatible equipment.
• Dimensions of 4.81" H x 2.25" W x 2.5" D make it easier to compare the physical size with an existing breaker.
• A practical choice for legacy equipment maintenance when the application requires the same form, fit, ratings, and function.

Technical Specifications

• Part Number: Q2430-60

• Product: Circuit Breaker

• Type: Q24

• Configuration: Plug-On

• Amperage: 60 Amps

• Poles: 3

• Voltage: 240VAC

• AIC Rating: 10k

• AIC Rating & Voltage: 10k @ 240VAC

• Dimensions:
  • Height: 4.81 in.
  • Width: 2.25 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Material compliance details, agency listings, and certification information were not provided with the available specifications for the Q2430-60. Because these requirements can vary by equipment and application, they shouldn't be assumed. Any required certifications, listings, or compliance documentation should be confirmed for the specific installation.

Where It Works Best

• The Q2430-60 circuit breaker is best suited to existing and legacy electrical equipment designed to use a 60-amp, 3-pole Type Q24 plug-on breaker rated at 10k AIC at 240VAC. It's a particularly useful match when the goal is to maintain the original equipment configuration rather than change it.
