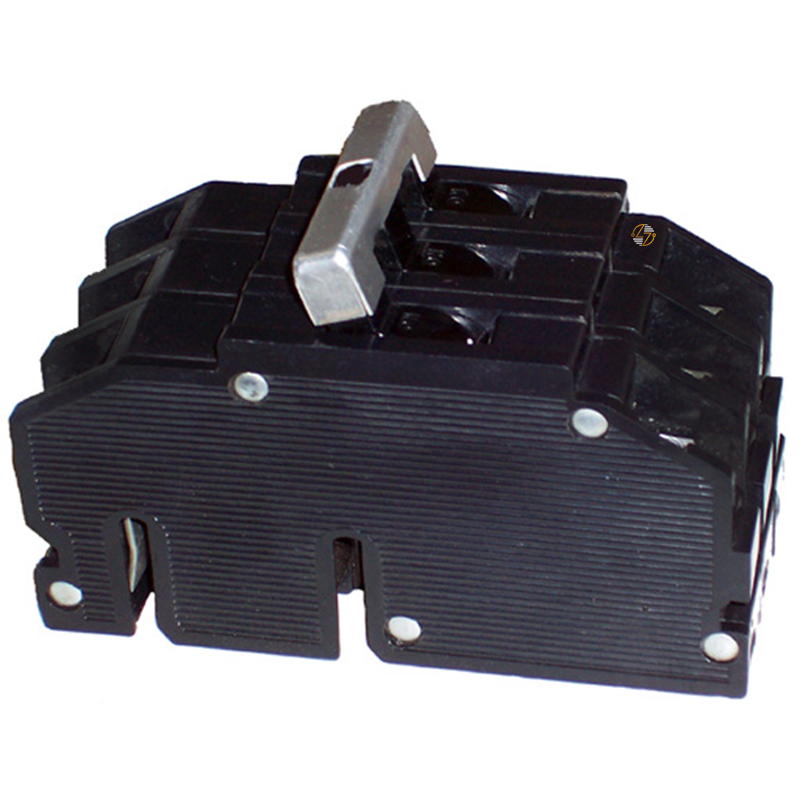

Q2430-100 - 100 Amp Circuit Breaker

Q2430-100 - 100 Amp Circuit Breaker

When an older electrical system needs a replacement breaker, the small details matter. The Q2430-100 is a 100-amp, 3-pole Type Q24 circuit breaker with a plug-on connection, rated at 10 kA I.A.C. at 240 VAC. It measures 4.81 inches high, 2.25 inches wide, and 2.5 inches deep. Those specifications make it easier to compare the breaker with the one already installed and determine whether it matches what the equipment calls for. This is especially helpful when working with legacy electrical equipment, where the objective is usually straightforward: find the correct form, fit, and function without changing the original setup. If your equipment requires the Q2430-100 configuration, check the amperage, number of poles, voltage, interrupting rating, connection style, and dimensions before making the match. Properly selected and installed, this breaker is built to last and suited to the work it was originally designed to handle.

Key Features and Benefits

• 100A rating for equipment that requires a 100-amp breaker.
• Three-pole design for systems using this specific pole configuration.
• Type Q24 breaker configuration.
• Plug-on connection for matching equipment.
• Rated 10k A.I.C. at 240VAC.
• Compact dimensions of 4.81" H x 2.25" W x 2.5" D.
• A useful option for maintaining legacy equipment where matching the existing breaker is important.
• Built to last when used within its stated ratings and installed correctly.

Technical Specifications

• Part Number: Q2430-100

• Product Type: Circuit Breaker

• Type: Q24

• Amperage: 100A

• Poles: 3

• Voltage: 240VAC

• A.I.C. Rating: 10k @ 240VAC

• Connection: Plug-On

• Dimensions:
  • Height: 4.81 in.
  • Width: 2.25 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Specific certification and material compliance information was not included in the available specifications for the Q2430-100. If your installation requires a specific listing or approval, check the markings on the breaker and the documentation for the equipment to be installed. Certifications such as UL, CSA, or RoHS should only be relied upon when they can be confirmed for the actual breaker.

Where It Works Best

• The Q2430-100 is best suited to existing electrical equipment designed around a Type Q24 100-amp, 3-pole plug-on circuit breaker. It can be particularly useful for maintenance and repair work on legacy systems where keeping the original equipment configuration is important.
