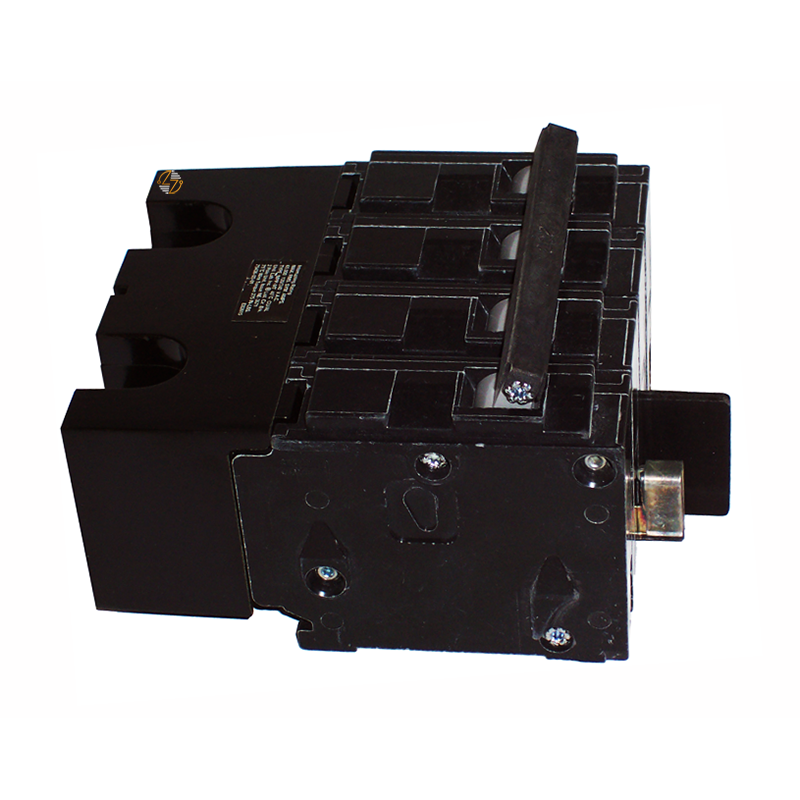

Q2225BH - 225Amp Circuit Breaker

Q2225BH - 225Amp Circuit Breaker

The Q2225BH 225 Amp 2-pole circuit breaker is a Type QPPH plug-in breaker rated for 120/240VAC, with a 22kA AIC rating. If you’re replacing an existing Q2225BH or checking a breaker against an equipment requirement, the important numbers are straightforward: 225 amps, two poles, 120/240VAC, and plug-in mounting. The breaker measures 5.25" high × 4.0" wide × 2.56" deep and requires 4–6 spaces. It also carries a 40°C rating. Before installing, compare the part number and electrical ratings with the existing breaker and check the available panel space. Breaker compatibility can depend on the equipment as well as the basic amp and voltage ratings, so the complete specifications should match the intended application.

Key Features and Benefits

• 225A, 2-pole breaker for compatible higher-amperage applications
• Rated for 120/240VAC
• 22kA AIC rating at 120/240VAC
• Type QPPH configuration
• Plug-in mounting for compatible equipment
• 40°C rating
• Clearly defined dimensions make physical fit easier to check
• Requires 4–6 spaces


Technical Specifications

• Part Number: Q2225BH

• Type: QPPH

• Amperage: 225A

• Poles: 2

• Voltage: 120/240VAC

• A.I.C. Rating: 22kA @ 120/240VAC

• Mounting Style: Plug-In

• Temperature Rating: 40°C

• Height: 5.25 in.

• Width: 4.0 in.

• Depth: 2.56 in.

• Space Requirement: 4–6 Spaces


Material Compliance and Certifications

• Specific material compliance, certification, and agency listing information was not included in the available specifications for the Q2225BH. If your application requires a particular certification or compliance standard, check the markings on the breaker and the applicable product documentation before installation.


Where It Works Best

• The Q2225BH circuit breaker is a practical fit for maintenance and replacement work involving compatible electrical distribution equipment that calls for a 225A, 2-pole, Type QPPH plug-in breaker. It is intended for applications matching its 120/240VAC rating and 22kA AIC specification, with enough room for the required 4–6 spaces.
