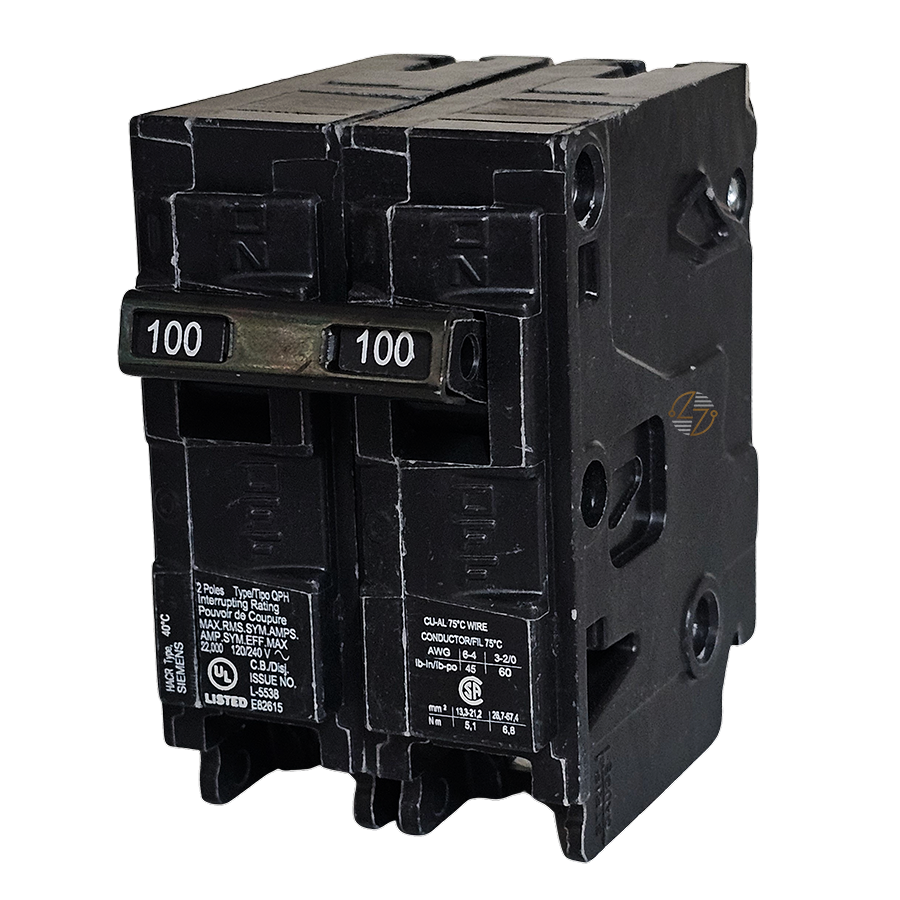

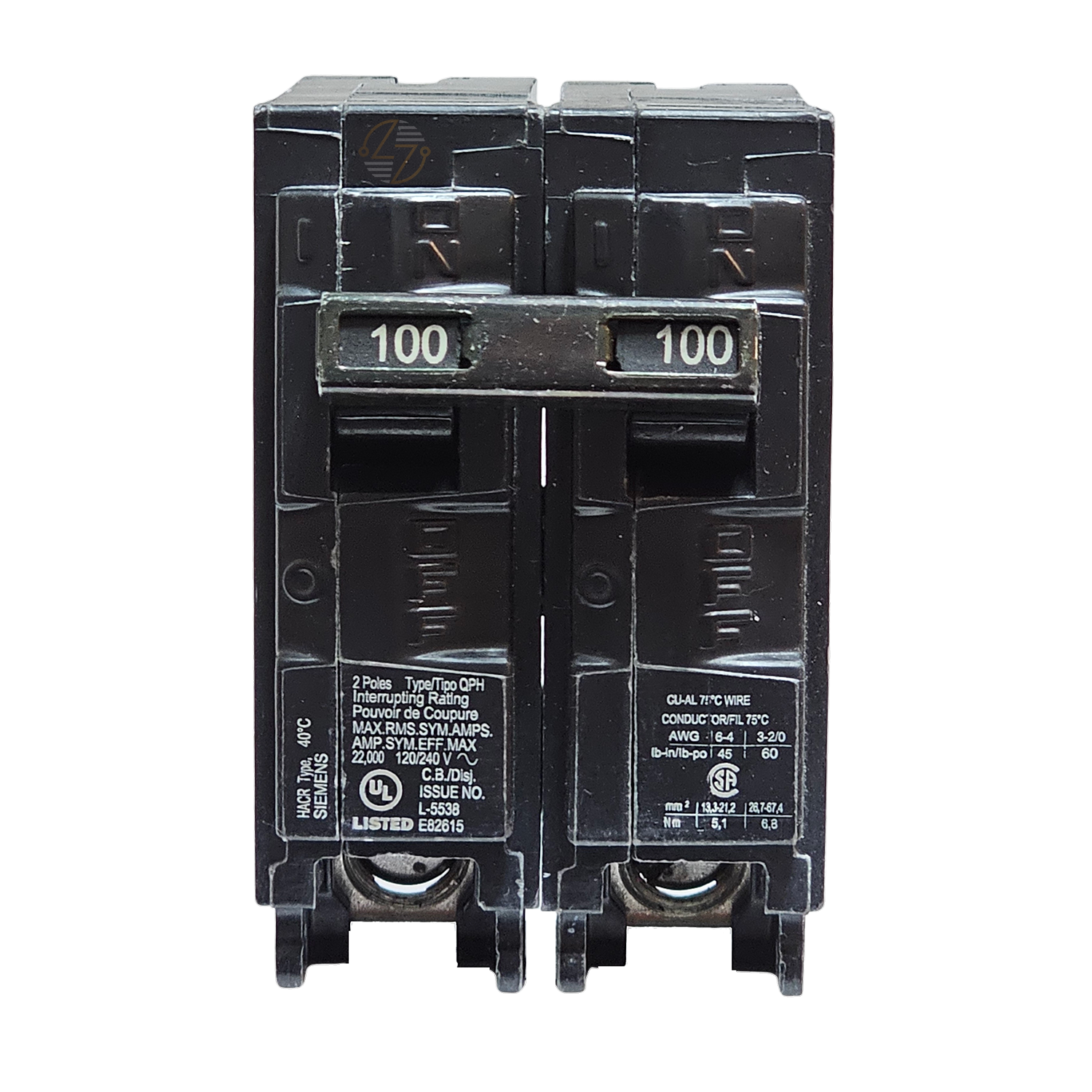

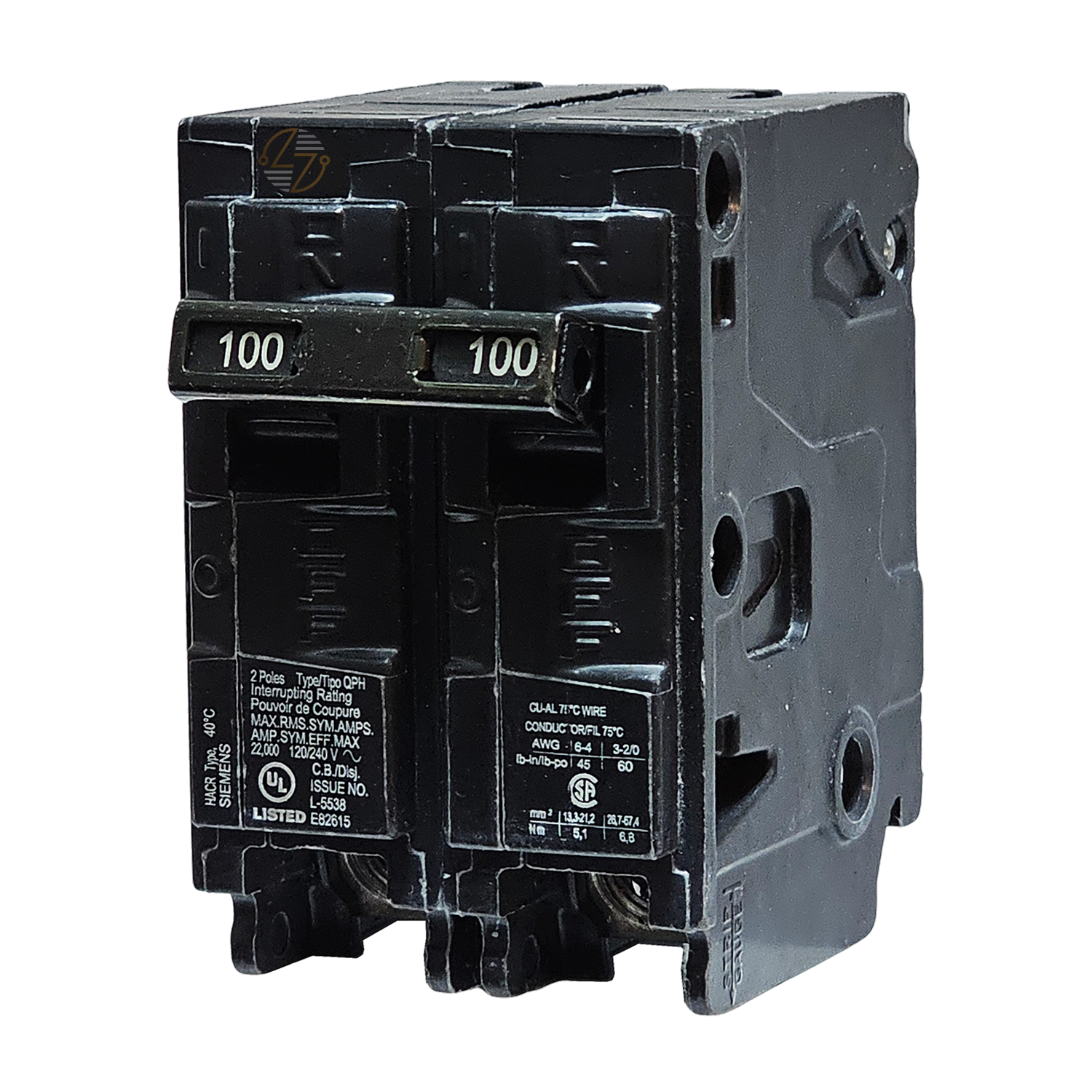

Q2100H - 100 Amp Circuit Breaker

Q2100H - 100 Amp Circuit Breaker

The Q2100H is a 100-amp, 2-pole QPH circuit breaker with a plug-in connection. It is rated at 22 kA at 120/240VAC and is a practical option when you need to replace a breaker with these same electrical and physical specifications.

This breaker is also HACR-rated and rated at 40°C. That makes it suitable for compatible heating, air-conditioning, and refrigeration applications where these ratings are called for. Size matters when you're matching a replacement, too. The Q2100H measures 3.13 inches high, 2 inches wide, and 2.56 inches deep.

If you're replacing an existing breaker, it's worth checking the full specifications rather than relying on amperage or appearance alone. Make sure the Q2100H part number, QPH type, two-pole design, voltage, interrupting rating, and plug-in connection are appropriate for the equipment you're working with.

Key Features and Benefits

• 100-amp, 2-pole breaker for compatible applications
• Rated 22kA at 120/240VAC
• Type QPH
• Simple plug-in configuration
• HACR rated
• 40°C rating
• Compact size for compatible electrical equipment
• Useful for replacement applications where the Q2100H specifications are required

Technical Specifications

• Part Number: Q2100H

• Type: QPH

• Amperage: 100A

• Poles: 2

• A.I.C. Rating & Volts: 22kA @ 120/240VAC

• Connection: Plug-In

• HACR Rated: Yes

• Temperature Rating: 40°C

• Height: 3.13 in.

• Width: 2.0 in.

• Depth: 2.56 in.


Material Compliance and Certifications

• The information available for the Q2100H indicates it is HACR-rated at 40 °C. No other material compliance declarations or certification information was included in the supplied specifications. If a job has specific certification or compliance requirements, those details should be verified against the breaker markings and the applicable product documentation.

Where It Works Best

• The Q2100H works best in compatible panels and electrical distribution equipment designed for Type QPH plug-in breakers. It's especially useful when you're replacing an existing breaker and need a 100A, 2-pole unit rated 22kA at 120/240VAC.

  It may also be used in compatible HVAC and refrigeration applications where an HACR-rated breaker with these specifications is required.
