Q1-2100VHIN - 100 Amp Circuit Breaker

Q1-2100VHIN - 100 Amp Circuit Breaker

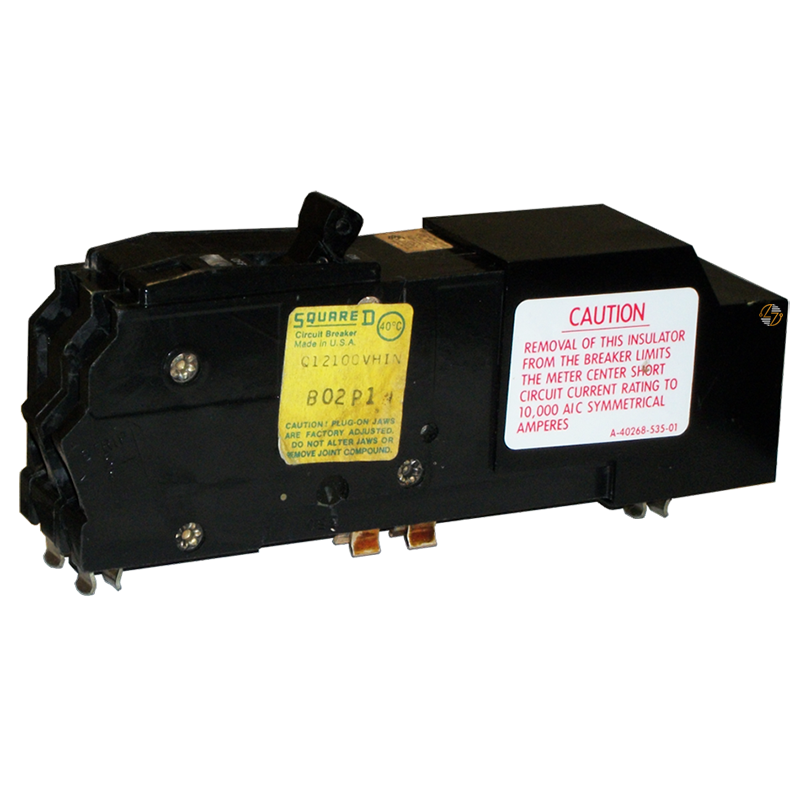

Looking for a Q1-2100VHIN to match an existing installation? This is a 100-amp, 2-pole Type Q1 thermal-magnetic circuit breaker with a plug-on connection. It carries a 10 kA I.C. rating at 120/240 VAC and is intended for electrical equipment designed around this specific breaker type. Size is another detail you'll want to check before making a match. The Q1-2100VHIN measures 6.38 inches high, 1.5 inches wide, and 2.31 inches deep, and it takes up four spaces. That's particularly important with older equipment, where a breaker with the same amperage may not necessarily have the right physical configuration. If you're replacing an existing unit, compare the part number and breaker type, as well as the poles, amperage, voltage, A.I.C. rating, connection, dimensions, and space requirements. For equipment that requires these specifications, the Q1-2100VHIN provides the form, fit, and function needed to maintain the original electrical setup. Simply put, it's a built-to-last breaker designed for the applications it was made to fit.

Key Features and Benefits

• 100A rating for equipment requiring a 100-amp breaker.
• Two poles for applications designed around a 2-pole configuration.
• Type Q1 design for compatible electrical equipment.
• Plug-on connection to match the required mounting and connection style.
• Thermal-magnetic operation provides circuit protection within the breaker's stated ratings.
• Rated 10kA I.C. at 120/240VAC.
• Requires four spaces, an important point when checking physical fit.
• Well suited to replacement and maintenance work on compatible legacy electrical systems.
• Built to last when properly selected, installed, and used within its specified ratings.

Technical Specifications

• Part Number Q1-2100VHIN

• Type Q1

• Breaker Type Plug-On Thermal Magnetic

• Amperage 100A

• Poles 2

• Voltage 120/240VAC

• A.I.C. Rating 10k @ 120/240VAC

• Height 6.38 in.

• Width 1.5 in.

• Depth 2.31 in.

• Spaces Required 4

• Connection Plug-On


Material Compliance and Certifications

• Specific material compliance or certification information was not provided with the available specifications for this part. For that reason, no certification claims are being made here.
• If certification or material compliance is required for your application, check the markings and documentation associated with the individual breaker. The equipment requirements and applicable electrical codes should also be verified before installation.

Where It Works Best

• The Q1-2100VHIN 100-amp circuit breaker is intended for compatible equipment that calls for a Type Q1, 2-pole plug-on breaker with a 120/240 VAC rating and 10 kA.I.C.

• It's a particularly useful match when you're maintaining older or legacy electrical equipment and need to stay with the existing breaker configuration. In these situations, the little details count. A 100-amp breaker isn't automatically interchangeable with another 100-amp breaker.

• Before using the Q1-2100VHIN as a replacement, compare it with the requirements of the equipment and the breaker being replaced. Check the part number, Type Q1 configuration, 100A rating, two-pole, 120/240VAC voltage, 10kA I.C., plug-on connection, four-space requirement, and physical dimensions.

• When those specifications are what your equipment requires, the Q1-2100VHIN offers a practical way to maintain the system's intended breaker configuration without changing anything that doesn't need to be changed.
