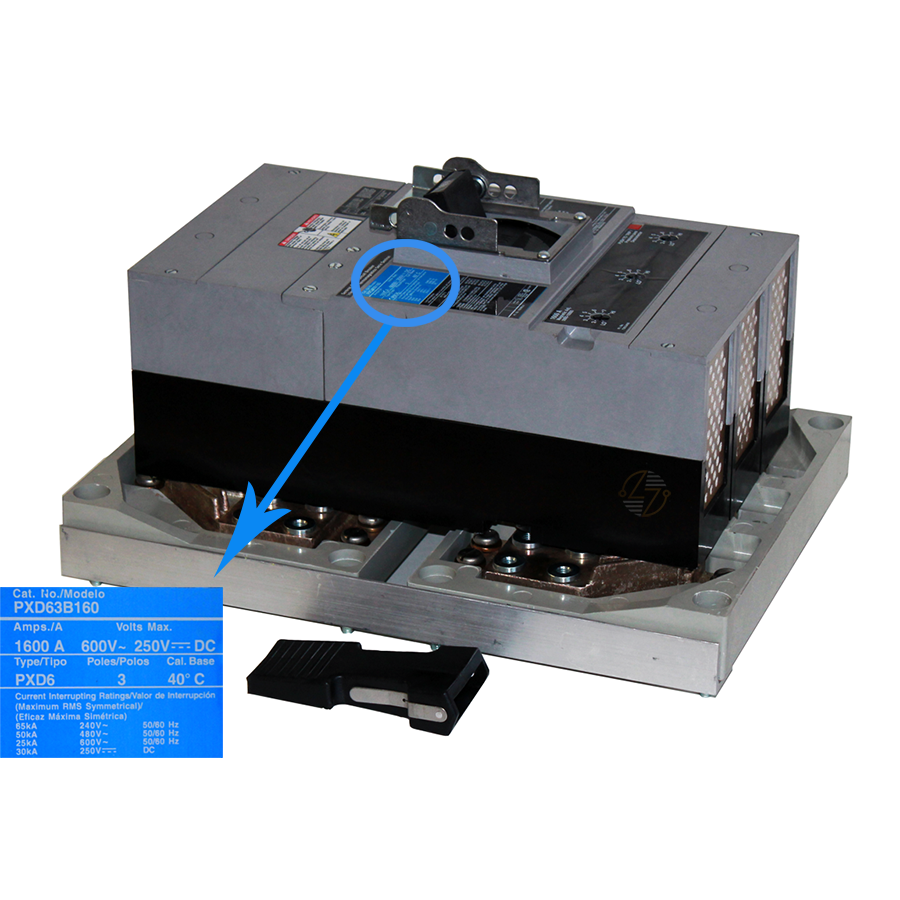

PXD63B160 - 1600Amp Circuit Breaker with Base

PXD63B160 - 1600Amp Circuit Breaker with Base

The Siemens PXD63B160 is a top-tier low voltage Sentron molded case circuit breaker designed to provide exceptional protection and reliability for industrial and commercial electrical systems. This 3-pole circuit breaker, rated at 1600A, features a robust thermal-magnetic trip unit, offering precise and dependable protection against overloads and short circuits. With a breaking capacity of 25kAIC at 600V and 50kAIC at 480V, this breaker ensures the safety and performance of your electrical infrastructure under high fault conditions. The PXD63B160 complies with the stringent UL 489 and IEC 60947-2 standards, making it a versatile and essential component for any electrical installation.

Key Features and Benefits

• Thermal-Magnetic Trip Unit: The thermal-magnetic trip unit combines thermal overload protection with magnetic short-circuit protection, providing accurate and reliable response to electrical faults.
• High Breaking Capacity: With a breaking capacity of 25kAIC at 600V and 50kAIC at 480V, the PXD63B160 ensures robust protection against high fault currents.
• Non-Interchangeable Trip: This feature enhances stability and security by preventing unauthorized modifications, maintaining system integrity.

Technical Specifications

• Rated Current: 1600A
• Poles: 3-pole
• Breaking Capacity: 25kAIC at 600V, 50kAIC at 480V
• Frame Size: PD
• Trip Unit Technology: Thermal-Magnetic
• Operating Temperature: Standard 40°C
• Dimensions: 9 x 16 x 6.19 inches
• Net Weight: 124.782 lb
• Special Features: No lugs installed

Material Compliance and Certifications

• Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring safety and performance across different regions and applications.

Suitability

• The Siemens PXD63B160 circuit breaker is ideally suited for a wide range of industrial and commercial applications, providing robust and reliable protection for electrical systems. Its high breaking capacity and thermal-magnetic trip unit make it perfect for safeguarding critical infrastructure and ensuring continuous operation. Whether used in manufacturing plants, commercial buildings, or other high-demand environments, the PXD63B160 ensures operational safety, reliability, and compliance with global standards.

Invest in the Siemens PXD63B160 circuit breaker to enhance your electrical protection strategy with a product designed for excellence and compliance with industry standards.
