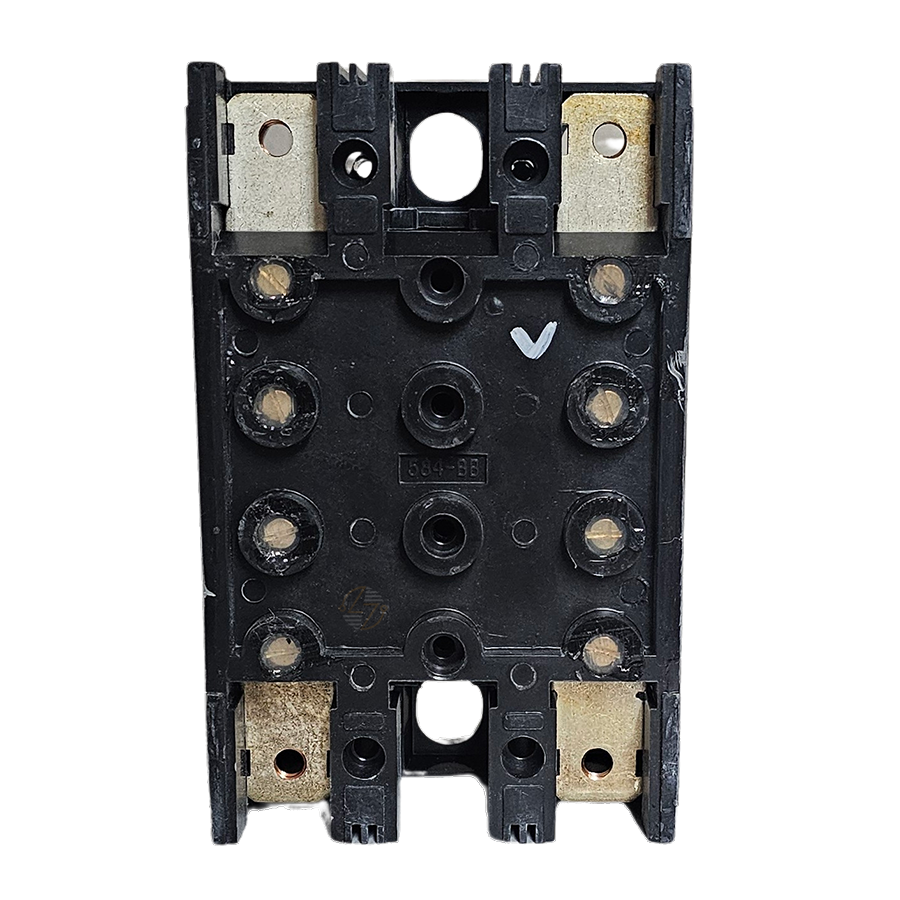

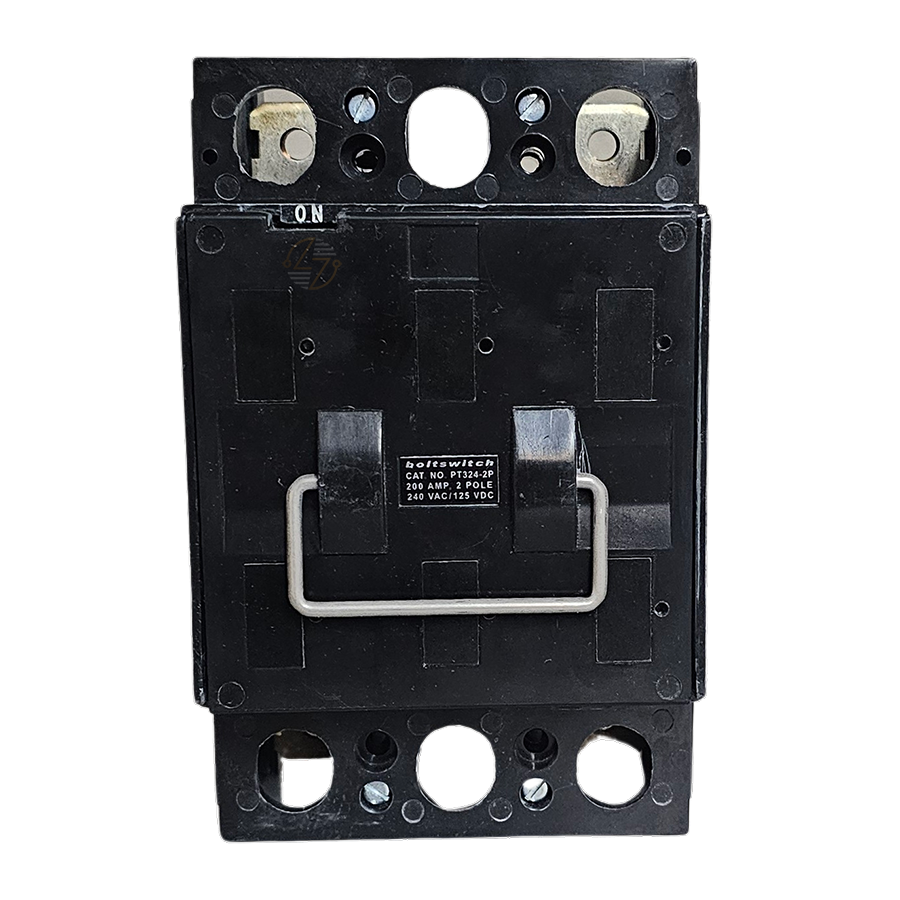

PT364-2P - 200Amp Fusible Pullout

PT364-2P - 200Amp Fusible Pullout

The Boltswitch PT364-2P Fusible Pullout Switch is a robust and efficient solution for protecting and controlling electrical circuits in demanding commercial and industrial environments. With a compact design and premium engineering, this 2-pole, 200-amp, 600-volt A.C. switch ensures superior performance and reliability. Designed to accept Class T fuses, it provides exceptional overcurrent protection and is compatible with various panelboards, control panels, and meter banks.

Key Features and Benefits

• High Interrupting Capacity: Rated for fault currents up to 200,000 RMS symmetrical amperes, ensuring dependable protection in high-load applications.
• Enhanced Safety: Accommodates Class T fuses, known for their fast response time and compact size, delivering optimal circuit protection.
• Durable Construction: Engineered for long-term reliability under rigorous operating conditions.


Technical Specifications

• Dimensions: 6.5"L x 4.125"W x 3.625"D

• Voltage Rating: 600 VAC

• Current Rating: 200 Amperes

• Number of Poles: 2

• Fuse Compatibility: Accepts Class T fuses

• Interrupting Capacity: 200,000 RMS symmetrical amperes


Material Compliance and Certifications

• UL Listed: Compliant with UL 1429 standards, certified under file No. E131005, ensuring safety and performance.
• C-UL Certification: Meets Canadian safety standards, suitable for cross-border applications.
• Environmentally Friendly: Built with high-quality, compliant materials for sustainable performance.


Suitability

• The Boltswitch PT364-2P is perfect for applications requiring reliable load-break switching and robust overcurrent protection. It is particularly suited for commercial, industrial, and high-energy environments with significant fault current potential. Its compact size and compatibility with Class T fuses make it ideal for retrofits and new installations alike.
