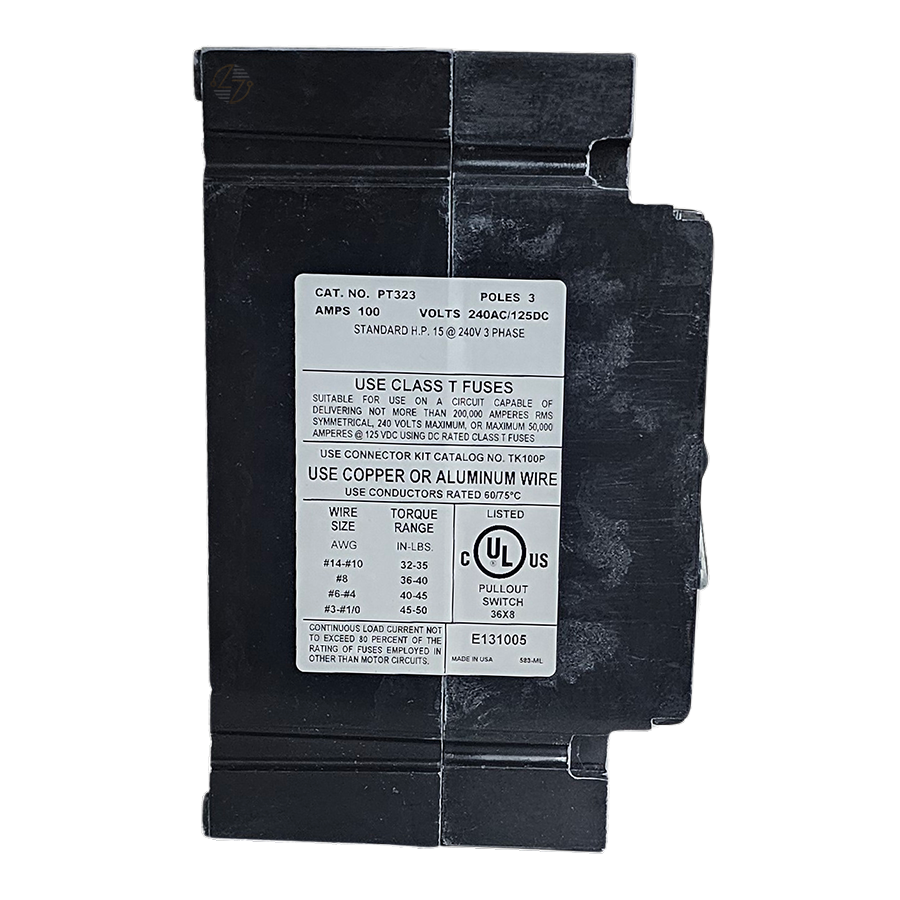

PT323 - 100Amp Fusible Pullout

PT323 - 100Amp Fusible Pullout

Need a PT323 fusible pullout switch for a replacement or maintenance job? This 3-pole, 100-amp Type PT switch is rated for 250V AC and accepts Class T fuses. Its pullout-style design provides a straightforward disconnect solution for compatible electrical equipment while allowing the circuit to be protected by the appropriate fuses. The PT323 measures 6.5 inches high, 4.125 inches wide, and 3.625 inches deep, so you can compare its dimensions with your existing equipment before installing it. It's a good choice when you're replacing a PT323 and need to match the original electrical ratings, pole configuration, and fuse requirements. Class T fuses are not included. As with any electrical replacement component, check the part number and specifications against the equipment you're servicing before installation.

Key Features and Benefits

• 100-amp, 250V AC rating for compatible electrical applications.
• Three-pole configuration for equipment requiring a 3-pole switch.
• Type PT fusible pullout design makes it suitable for matching compatible existing equipment.
• Accepts Class T fuses for fuse-based circuit protection.
• At 6.5" H × 4.125" W × 3.625" D, the dimensions are easy to compare with an existing unit or available installation space.
• Clearly identified as PT323, helping simplify part-number matching during repair and maintenance work.
• Fuses are not included, allowing the appropriate Class T fuses to be selected for the application.

Technical Specifications

• Part Number PT323

• Type PT

• Product Fusible Pullout Switch

• Poles 3

• Amperage 100 Amps

• Voltage Rating 250V AC

• Compatible Fuse Class Class T

• Fuses Included No

• Height 6.5 in.

• Width 4.125 in.

• Depth 3.625 in.


Material Compliance and Certifications

• No specific material composition, compliance standards, or third-party certifications were included in the available specifications for the PT323. If your project requires a specific certification, listing, or material standard, confirm these details in the applicable product documentation before installation.

Where It Works Best

• The PT323 makes the most sense when you're servicing or replacing equipment that already calls for a 3-pole, 100-amp, 250V AC Type PT fusible pullout switch. It's especially useful in maintenance and replacement situations where matching the existing component matters.
• If you're replacing an older unit, don't rely on amperage alone. Check the PT323 part number, three-pole configuration, 100-amp rating, 250V AC rating, physical dimensions, and Class T fuse requirement. Those details can save a lot of headaches when you're trying to determine whether a replacement is the right fit.
• The bottom line: if your application calls for a PT323 Type PT fusible pullout switch, this unit provides the specified 3-pole configuration, 100-amp capacity, 250V AC rating, and Class T fuse compatibility in a single, clearly defined component.
