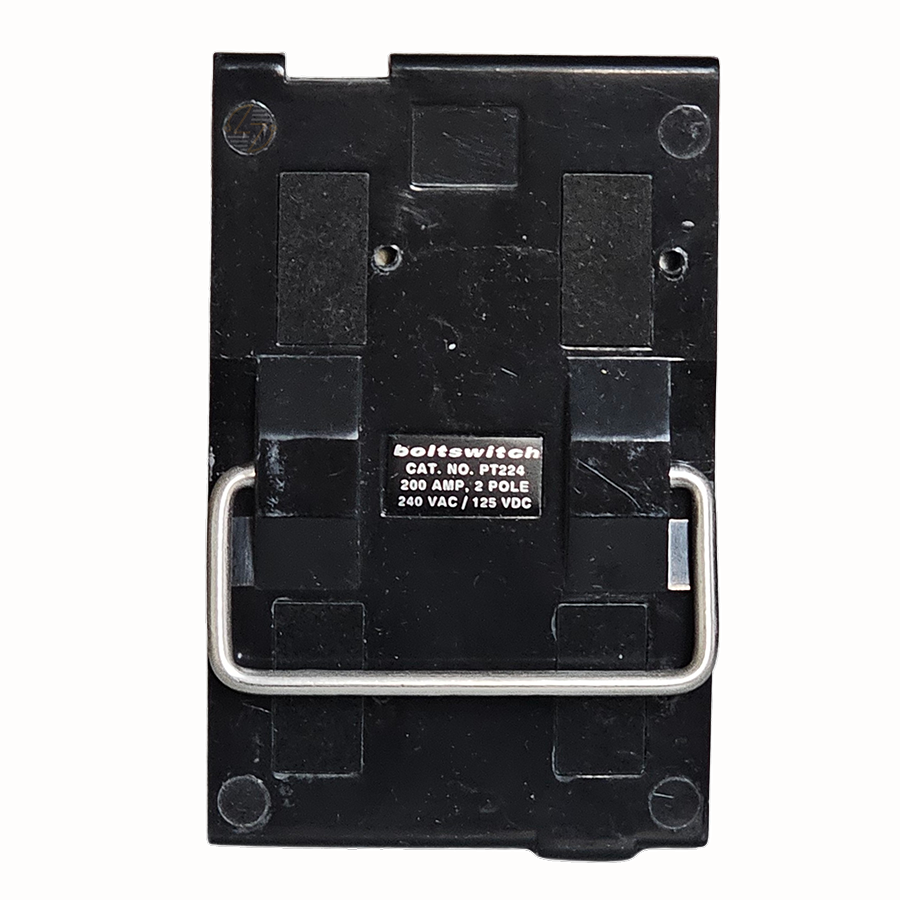

PT224 - 200Amp Fusible Pullout *Head ONLY*

PT224 - 200Amp Fusible Pullout *Head ONLY*

The Boltswitch PT224 Fusible Pullout Head Unit is a robust and reliable component designed for seamless integration into electrical distribution systems. Engineered for use in panelboards, control panels, and meter banks, this 200-amp, 2-pole, 250V AC load-break switch ensures safe and efficient circuit control. Its compact design allows for easy installation and maintenance, making it an ideal choice for various electrical applications.

Key Features and Benefits

• High Fault Current Rating: With a fault current rating of up to 200,000 RMS symmetrical amperes, the PT224 provides superior protection against electrical faults, ensuring system integrity and safety.
• Versatile Installation: The PT224 can be fed from either the top or bottom, as the fuses and blades are completely isolated when the head is removed. This flexibility simplifies installation and reduces setup time.


Technical Specifications

• Voltage Rating: 250V AC

• Current Rating: 200 Amperes

• Poles: 2

• Fault Current Rating: 200,000 RMS Symmetrical Amperes

• Fuse Compatibility: Accepts Class T fuses


Material Compliance and Certifications

• The PT224 is UL and C-UL listed under file No. E131005, ensuring compliance with stringent safety and performance standards.


Suitability

• The Boltswitch PT224 Fusible Pullout Head Unit is ideal for applications requiring reliable load-break switching capabilities, such as in panelboards, control panels, and meter banks. Its high fault current rating and versatile installation options make it suitable for both commercial and industrial electrical systems.
