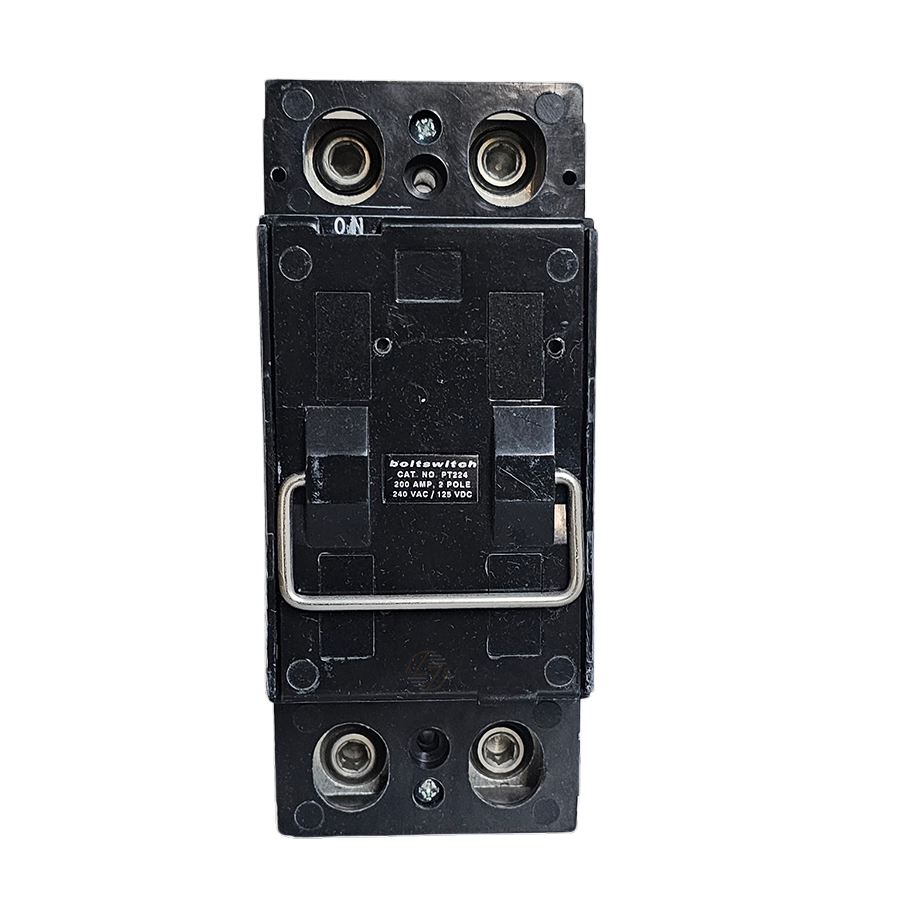

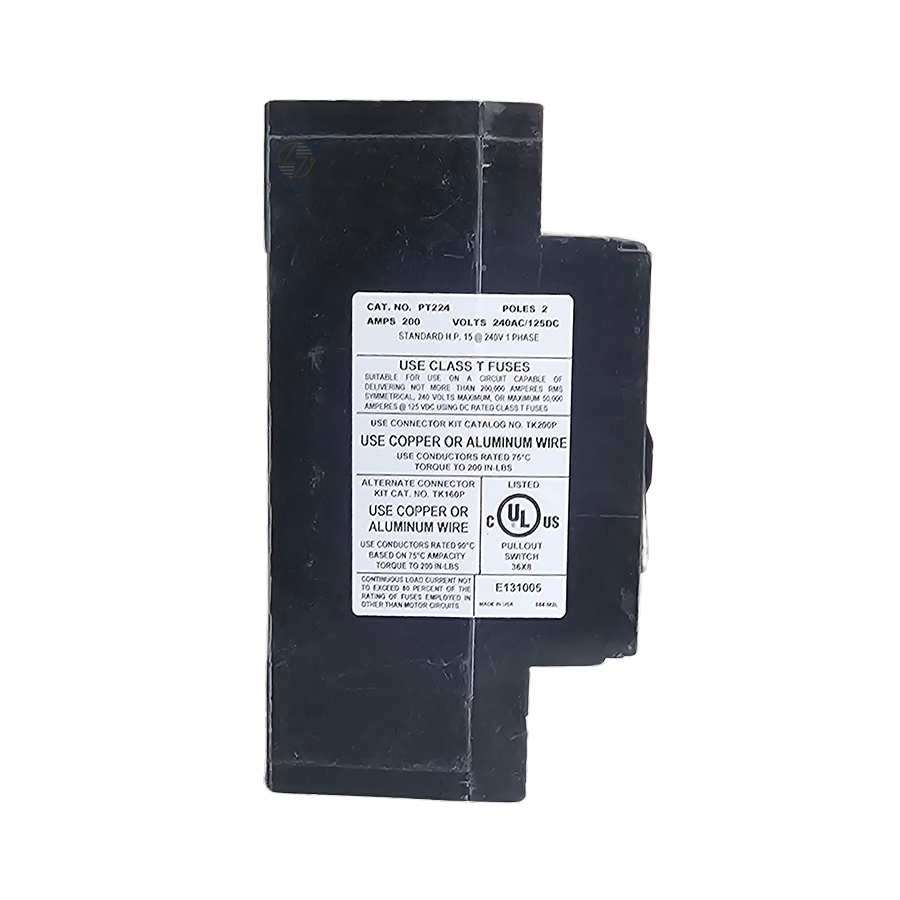

PT224 - 200Amp Fusible Pullout

PT224 - 200Amp Fusible Pullout

If you're looking for a PT224 fusible pullout switch, the important details are pretty straightforward. This Type PT unit is rated for 200 amps at 250 volts AC and uses a 2-pole configuration. It accepts Class T fuses, making it a practical choice for compatible electrical systems that require this specific style of fused disconnect. The PT224 measures 6.5 inches high, 2.76 inches wide, and 3.625 inches deep so that those dimensions can be checked against the available space before installation. It's especially useful when replacing an existing PT224 or when a project specifically calls for a 200-amp, 2-pole Type PT fusible pullout switch. One thing to keep in mind: the Class T fuses are not included. They will need to be selected separately to match the requirements of the electrical system.

Key Features and Benefits

• 200-amp rating for applications requiring this level of current capacity.
• 2-pole configuration for compatible electrical systems.
• Rated for 250V AC.
• Type PT fusible pullout design provides a simple, familiar disconnect arrangement.
• Accepts Class T fuses so that the appropriate fuse can be matched to the application.
• Compact dimensions make it easier to compare the PT224 with an existing installation or available mounting space.
• Clearly identified electrical ratings help take the guesswork out of replacement and maintenance work.
• Class T fuses are not included.

Technical Specifications

• Part Number PT224

• Type PT

• Product Fusible Pullout Switch

• Poles 2

• Amperage 200 Amps

• Voltage 250V AC

• Fuse Type Accepted Class T

• Fuses Included No

• Height 6.5 in.

• Width 2.76 in.

• Depth 3.625 in.


Material Compliance and Certifications

• No specific material composition, compliance certifications, or third-party listings were included in the available specifications for the PT224. If your application requires a particular certification or material standard, check the markings on the actual device and the applicable manufacturer documentation before installation.

Where It Works Best

• The PT224 makes the most sense when the job calls for its exact combination of specifications: 2 poles, 200 amps, 250V AC, Type PT construction, and Class T fuse compatibility. That can include replacement and maintenance work where matching an existing electrical component is important, as well as other compatible installations designed around these ratings.
• For replacement projects, don't rely on appearance alone. Check the part number and compare the amperage, voltage, number of poles, fuse class and type, and physical dimensions with those of the equipment being replaced. Taking a minute to verify those details can help avoid a mismatch later.

Please note: Class T fuses are required for the appropriate application but are not included with the PT224.
