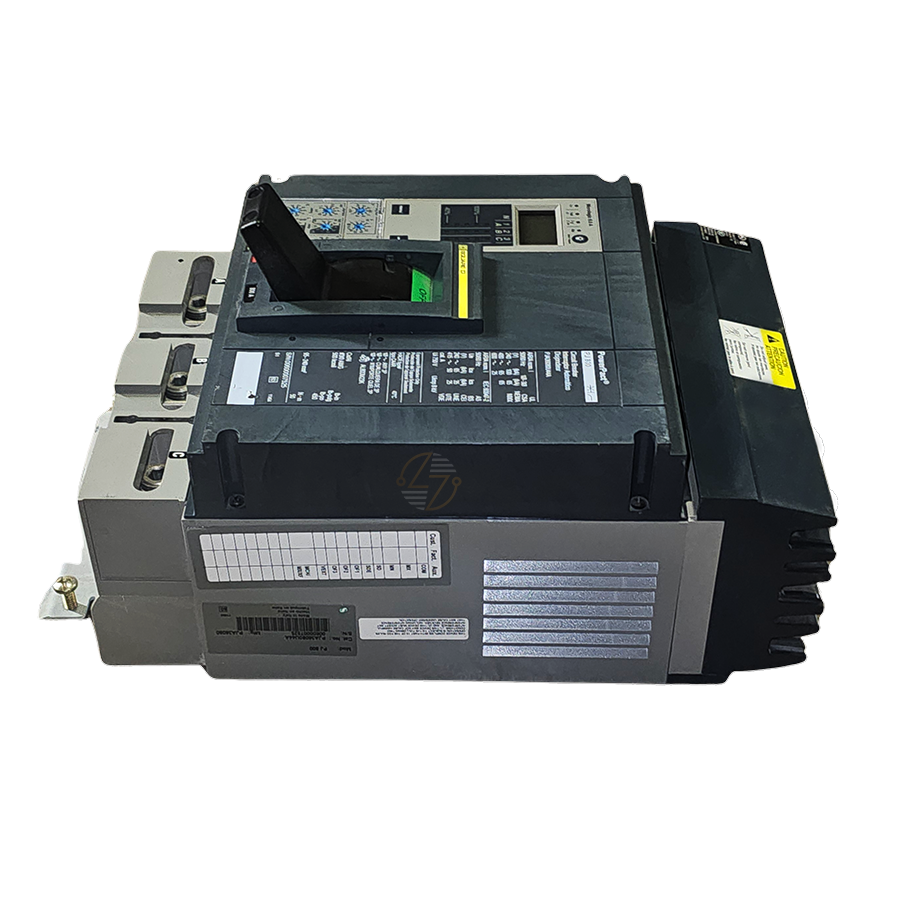

PJA36025U31A - 250Amp Circuit Breaker

PJA36025U31A - 250Amp Circuit Breaker

Looking for a PJA36025U31A circuit breaker to match an existing electrical setup? This Type PJA breaker is rated at 250 amps and features a 3-pole configuration, making it a practical fit for compatible commercial and industrial electrical systems. One of the key specifications is its 65 kA A.I.C. rating at 480 VAC, which gives electrical professionals an important figure to consider when evaluating short-circuit protection requirements. The breaker measures 16 inches high, 9 inches wide, and 6.19 inches deep, so you can compare its dimensions with those of your existing equipment before proceeding with installation. For maintenance teams, electricians, and facility managers, the PJA36025U31A offers a straightforward combination of amperage, pole configuration, interrupting rating, and physical dimensions. If you're replacing an existing breaker, take a minute to compare the full specifications, not just the amperage rating, to ensure this unit meets your equipment's requirements.

Key Features and Benefits

• 250-amp rating for compatible electrical distribution applications.
• 3-pole configuration for systems requiring a 3-pole circuit breaker.
• 65kA A.I.C. at 480VAC, an important specification when matching the breaker to the available fault-current requirements of an electrical system.
• Type PJA construction for applications designed around compatible PJA equipment.
• Clearly defined dimensions make it easier to check available space and compare the breaker with an existing unit.
• PJA36025U31A part number provides a specific reference when identifying a replacement breaker or checking equipment compatibility.

Technical Specifications

• Part Number PJA36025U31A

• Type PJA

• Amperage 250 Amps

• Poles 3

• A.I.C. Rating & Voltage 65kA @ 480VAC

• Height 16.0 in.

• Width 9.0 in.

• Depth 6.19 in.


Material Compliance and Certifications

• Specific material-compliance information and certifications were not included in the available specifications for the PJA36025U31A. If your installation has particular certification, listing, or material requirements, check the markings on the breaker and the applicable technical documentation before use. This avoids making assumptions about certifications that have not been confirmed for this specific part number.

Where It Works Best

• The PJA36025U31A 250-amp circuit breaker is best suited for compatible commercial and industrial electrical applications that call for a Type PJA, 3-pole breaker with a 65kA rating at 480VAC. It can also be useful in maintenance and replacement situations where an existing breaker needs to be matched by part number and electrical specifications.
• Replacing a breaker isn't simply a matter of finding another 250-amp unit. The pole count, voltage requirements, interrupting rating, physical fit, and compatibility with the electrical equipment all matter. Compare those details carefully with your existing breaker and system requirements. Final compatibility and installation should always be confirmed by qualified electrical personnel in accordance with applicable codes and equipment requirements.
