PDG23M0100TFFJ - 100Amp Circuit Breaker

PDG23M0100TFFJ - 100Amp Circuit Breaker

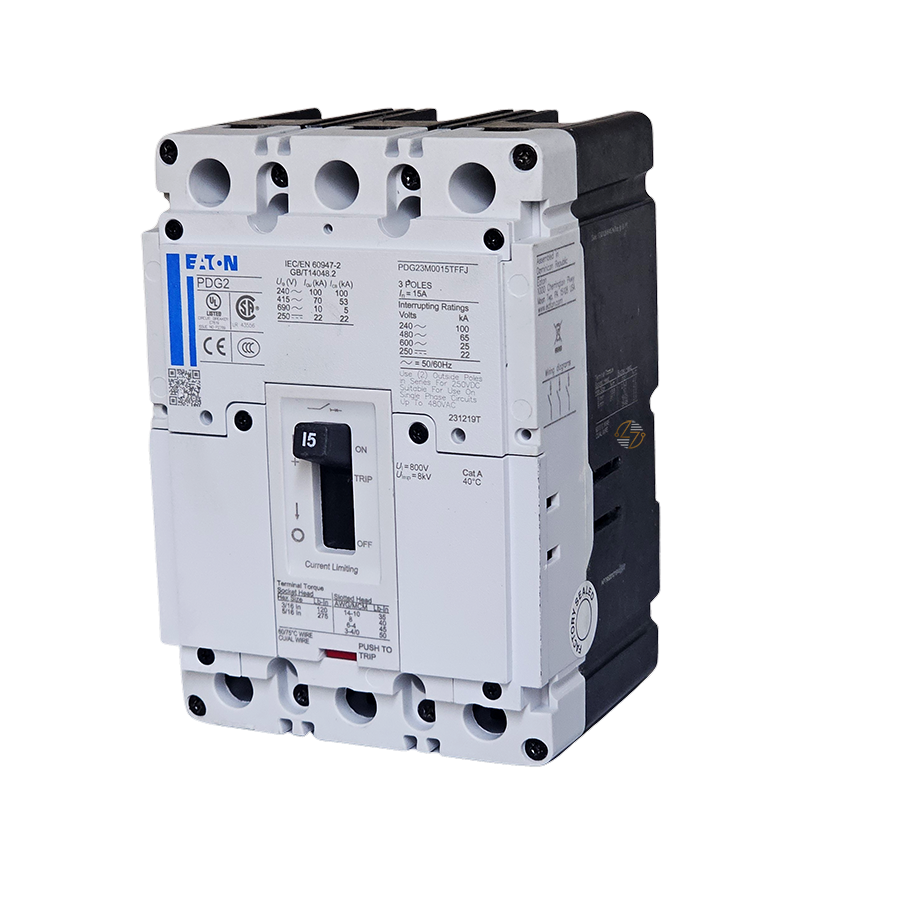

The Eaton PDG23M0100TFFJ Power Defense Molded Case Circuit Breaker is a versatile and reliable solution designed for high-performance electrical protection in commercial, industrial, and institutional environments. With a three-pole configuration, 100Amp rating, and advanced thermomagnetic trip technology, it delivers precise fault detection and exceptional durability. Its globally rated design ensures compliance with international standards, making it a dependable choice for safeguarding critical electrical systems.

Key Features and Benefits:

• High Interrupting Capacity: Capable of handling 65kAIC at 480V, this breaker provides robust protection against overloads and short circuits in demanding applications.
• Thermomagnetic Trip Technology: Ensures accurate fault detection and rapid interruption, enhancing safety and minimizing equipment downtime.

Technical Specifications:

• Amperage Rating: 100Amp
• Voltage Rating: 600V maximum
• Frame Type: PD2 Global, Frame 2
• Interrupting Ratings: 65kAIC @ 480V (UL), 100kAIC @ 240V (UL), 35kAIC @ 600V (UL/CSA), 22kAIC Icu @ 125 Vdc, 10kAIC Icu @ 690V (IEC), 50kAIC Icu @ 440V (IEC)
• Number of Poles: Three-pole
• Terminals: Standard Line and Load
• Dimensions: 88.9 mm (depth) x 152.4 mm (height) x 104.6 mm (width)
• Weight: 1.82 kg

Material Compliance and Certifications:

• Built to meet stringent international safety and environmental standards, the PDG23M0100TFFJ is certified under UL, CSA, IEC, and CCC, ensuring global applicability.
• RoHS Compliance: Aligns with modern sustainability goals, making it a responsible choice for environmentally friendly installations.

Suitability:

• This breaker is ideal for three-phase applications in commercial buildings, industrial facilities, and data centers. Its high interrupting capacity and advanced features make it a dependable component for safeguarding critical electrical infrastructure.
