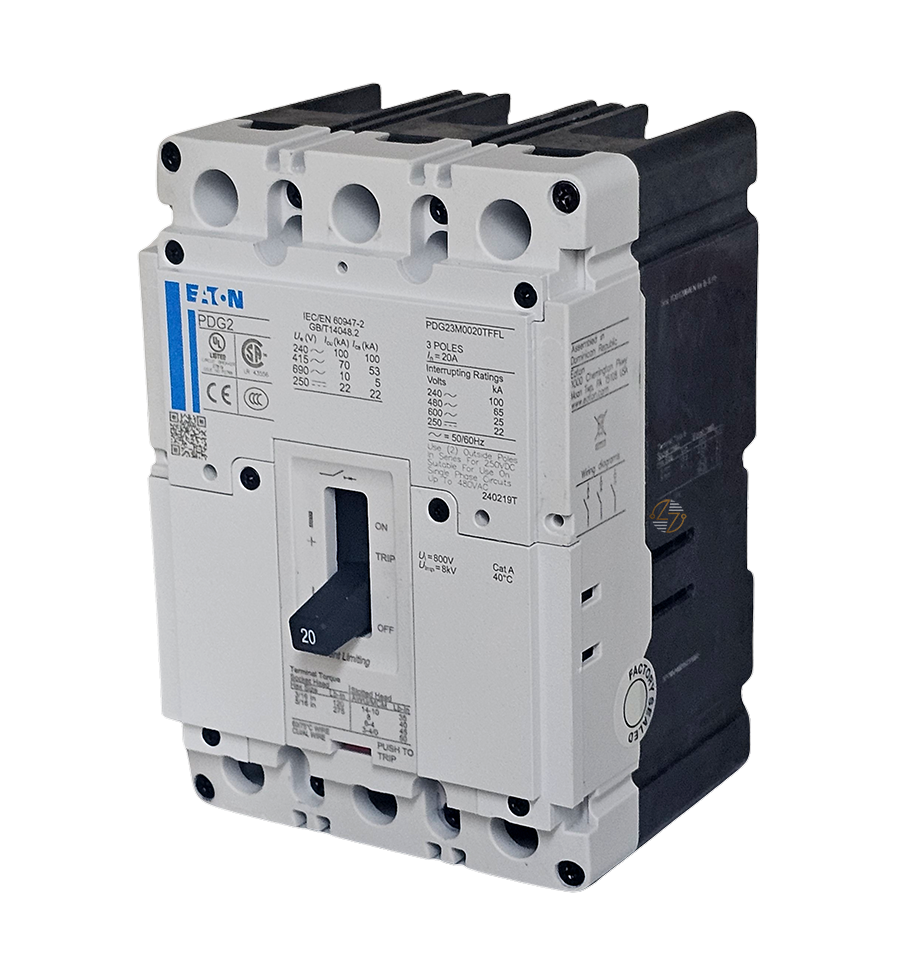

The Eaton PDG23M0020TFFL Power Defense Molded Case Circuit Breaker is a globally rated, high-performance solution designed for industrial and commercial power systems. This Frame 2 breaker features a robust three-pole configuration, a 20A rating, and a breaking capacity of 65kA at 480V, ensuring superior fault protection. With its fixed thermal-magnetic trip unit (Fxd-Fxd) and standard load-only terminals (PDG2X3T100).

Key Features and Benefits

• High Fault Tolerance: Breaking capacity of 65kA at 480V and 35kA at 600V (UL/CSA) ensures reliable protection in demanding environments.
• Thermal-Magnetic Trip Unit: Provides precise, fixed settings for overload and short-circuit protection, ensuring safety and reliability.
• Ease of Installation: Standard load-only terminals simplify setup, reducing installation time and maintenance costs.

Technical Specifications

• Frame Type: Frame 2, Power Defense Series
• Poles: 3-pole
• Amperage Rating: 20A
• Voltage Rating: Up to 600 Vac
• Interrupt Ratings: 65kA @ 480V, 100kA @ 240V, 35kA @ 600V.
• Weight: 1.82 kg
• Dimensions: 88.9 mm (L) x 104.6 mm (W) x 152.4 mm (H)

Material Compliance and Certifications

• RoHS Compliant: Demonstrates Eaton's commitment to sustainable and environmentally responsible products.
• Certifications: Meets rigorous UL, IEC, and CSA safety standards for reliable operation across global markets.

Suitability

• The Eaton PDG23M0020TFFL is ideal for power distribution systems in industrial facilities, data centers, and commercial environments. Its high interrupt ratings and compliance with international standards make it a versatile solution for protecting electrical infrastructure in a wide range of applications.

With its advanced fault tolerance and precise trip settings, the Eaton PDG23M0020TFFL Circuit Breaker delivers exceptional safety, reliability, and efficiency for modern power systems.
