PDG23M0200TFFJ - 200 Amp Circuit Breaker

PDG23M0200TFFJ - 200 Amp Circuit Breaker

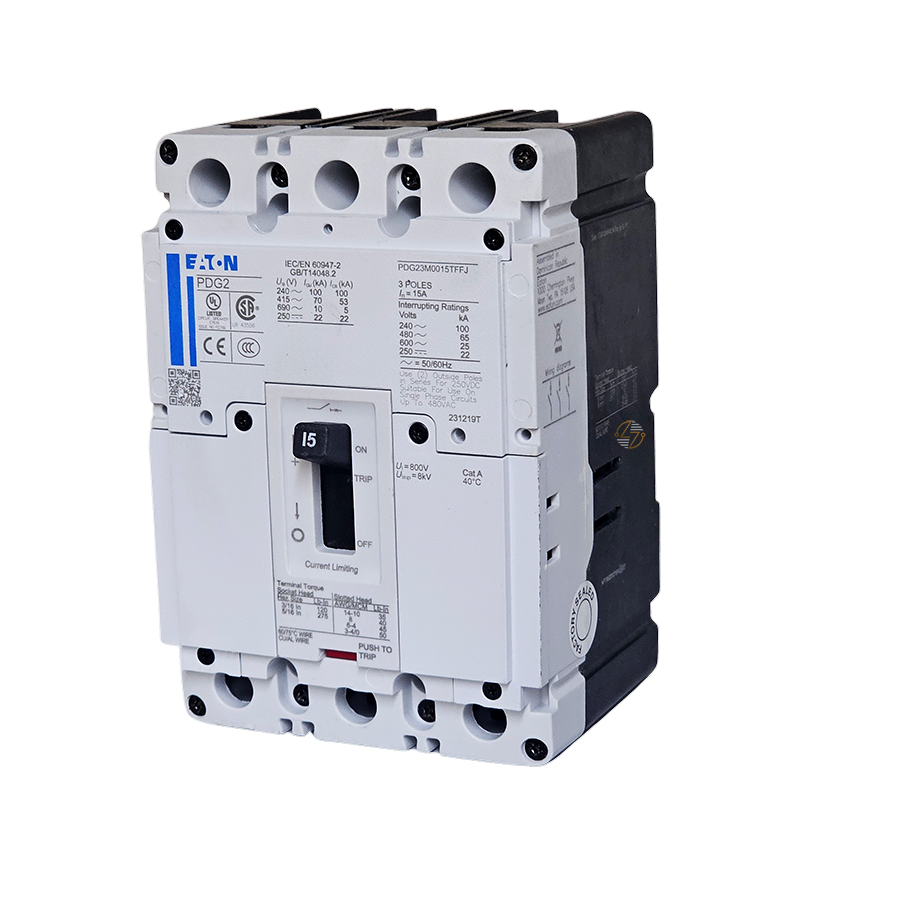

When you need a 200A breaker for a three-phase application, the Eaton PDG23M0200TFFJ gives you a straightforward combination of capacity and circuit protection. This Power Defense Frame 2 molded case circuit breaker has three poles and a 65 kA interrupting rating at 480 VAC, making it a good match for compatible commercial and industrial electrical systems with higher available fault currents. It uses a fixed thermal/fixed magnetic trip, so there are no field trip adjustments to deal with. Line and load lugs are also included. At just 4.19 inches high, 6 inches wide, and 3.5 inches deep, the PDG23M0200TFFJ packs its 200A rating into a relatively compact molded case. For maintenance work or equipment replacement, the important details are easy to identify: 200 amps, three poles, 65 kA at 480 VAC, Frame 2, fixed trip, and line and load lugs. Just make sure those ratings and the breaker configuration match the equipment you're working with before installation.

Key Features and Benefits

• 200-amp rating for compatible commercial and industrial power applications.
• Three-pole configuration for use in appropriate three-phase systems.
• 65 kA interrupting rating at 480 VAC provides the fault-current capability required by demanding applications.
• Fixed thermal/fixed magnetic trip keeps protection straightforward, with no field trip settings to adjust.
• Line and load lugs provide connection points on both sides of the breaker.
• Frame 2 design combines substantial electrical capacity with compact dimensions.
• Part of Eaton's Power Defense molded case circuit breaker family.

Technical Specifications

• Manufacturer: Eaton

• Part Number: PDG23M0200TFFJ

• Product Type: Molded Case Circuit Breaker (MCCB)

• Product Family: Power Defense

• Frame: Frame 2

• Poles: 3

• Amperage: 200A

• A.I.C. Rating: 65 kA at 480 VAC

• Trip: Fixed Thermal / Fixed Magnetic

• Connections: Line & Load Lugs

• Height: 4.19 in.

• Width: 6.0 in.

• Depth: 3.5 in.


Material Compliance and Certifications

• The PDG23M0200TFFJ belongs to Eaton's globally rated Power Defense molded case circuit breaker platform. Compliance and certification requirements can vary by breaker configuration and application. When a particular listing, certification, or material-compliance standard is required for a project, check the markings on the breaker and the applicable manufacturer documentation before installation.

Where It Works Best

• This breaker makes sense in commercial and industrial three-phase electrical systems that require a 200A, three-pole MCCB rated at 65 kA at 480 VAC. Depending on the equipment and system requirements, this can include switchboards, distribution equipment, manufacturing machinery, facility electrical systems, and other industrial power applications.
