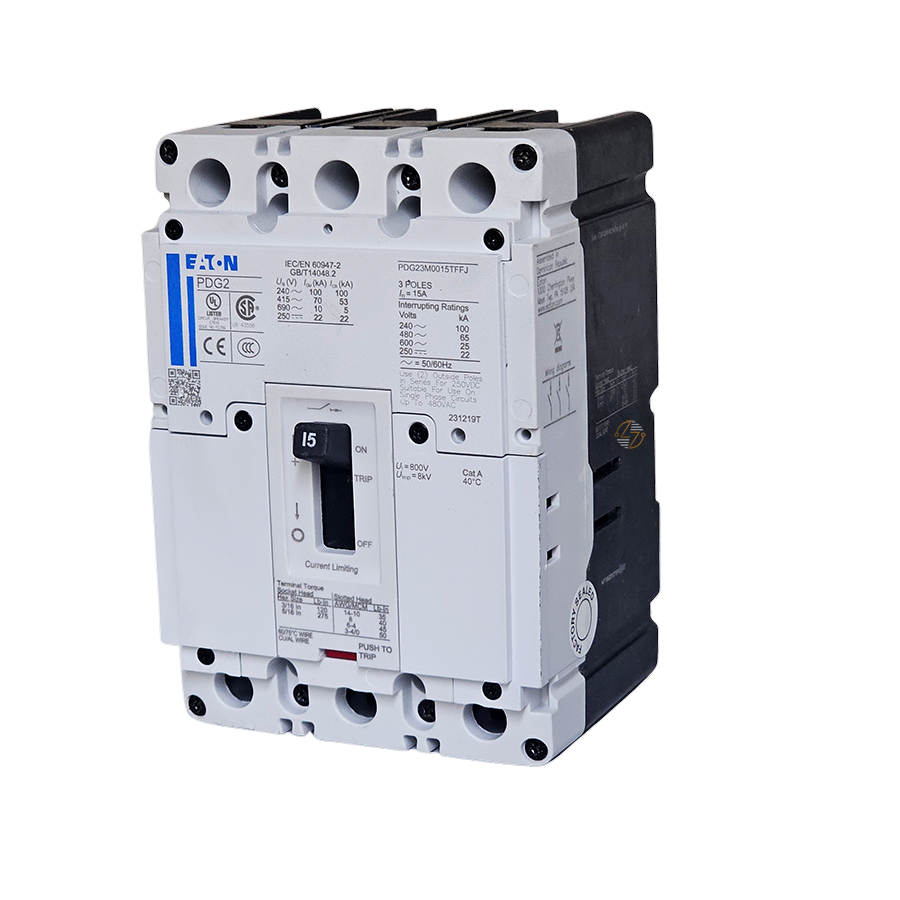

PDG23M0015TFFJ - 15 Amp Circuit Breaker

PDG23M0015TFFJ - 15 Amp Circuit Breaker

If you're looking for an Eaton PDG23M0015TFFJ, getting the specifications right matters. This Power Defense molded-case circuit breaker is a Frame 2, three-pole breaker rated at 15 amps, with a 65 kA interrupting rating at 480 VAC. It uses a fixed trip design and comes with line and load lugs. That combination makes it a practical choice for compatible commercial and industrial electrical systems that require dependable circuit protection and higher fault-current capability. It's also a straightforward option when replacing an existing PDG23M0015TFFJ, and you need to match the original breaker's key electrical characteristics. Before installation, check the full part number and ratings against your equipment—not just the amperage. Pole count, frame size, interrupting capacity, trip configuration, and connections all matter when matching a molded case circuit breaker.

Key Features and Benefits

• 15A rating for compatible circuits that require a 15-amp molded-case breaker.
• Three-pole configuration for use in properly matched three-phase electrical applications.
• A 65 kA interrupting rating at 480 VAC provides substantial fault-current interruption capability.
• Fixed trip design keeps the protection configuration straightforward.
• Frame 2 construction provides a compact format for compatible electrical equipment.
• Line and load lugs are included for the required electrical connections.
• Part of the Eaton Power Defense molded case circuit breaker family.
• Clearly identified by catalog number PDG23M0015TFFJ, which helps when matching an existing breaker.

Technical Specifications

• Manufacturer: Eaton

• Series / Family: Power Defense

• Part Number: PDG23M0015TFFJ

• Breaker Type: Molded Case Circuit Breaker

• Frame: Frame 2

• Poles: 3

• Amperage: 15A

• A.I.C. Rating: 65kA at 480 VAC

• Trip: Fixed

• Connections: Line and Load Lugs

• Height: 4.19 in.

• Width: 6.0 in.

• Depth: 3.5 in.


Material Compliance and Certifications

• The PDG23M0015TFFJ is part of Eaton's globally rated Power Defense breaker line. Manufacturer information for this model identifies compliance or certification to applicable standards including:
  • UL 489
  • CSA
  • IEC 60947-2
  • CCC Marked
  • RoHS Compliant
• These ratings and certifications can be important when a project or piece of equipment is subject to specific regulatory requirements. Always confirm that the breaker and its applicable certifications meet the requirements of the equipment, installation, and local electrical codes.

Where It Works Best

• The Eaton PDG23M0015TFFJ is best suited for compatible commercial and industrial electrical applications that require a 15A, three-pole molded-case circuit breaker.
• Its 65 kA rating at 480 VAC is especially useful in systems where available fault current requires a breaker with substantial interrupting capacity. Depending on the equipment specifications, this may include power distribution systems, industrial machinery, control equipment, and other three-phase electrical applications.
• Replacing an existing breaker is another common reason to look for this exact model. In that situation, don't rely on appearance or amperage alone. Check the PDG23M0015TFFJ catalog number along with the frame, number of poles, voltage, A.I.C. rating, trip configuration, and lug requirements. Those details help determine whether you're working with the correct breaker for the application.
