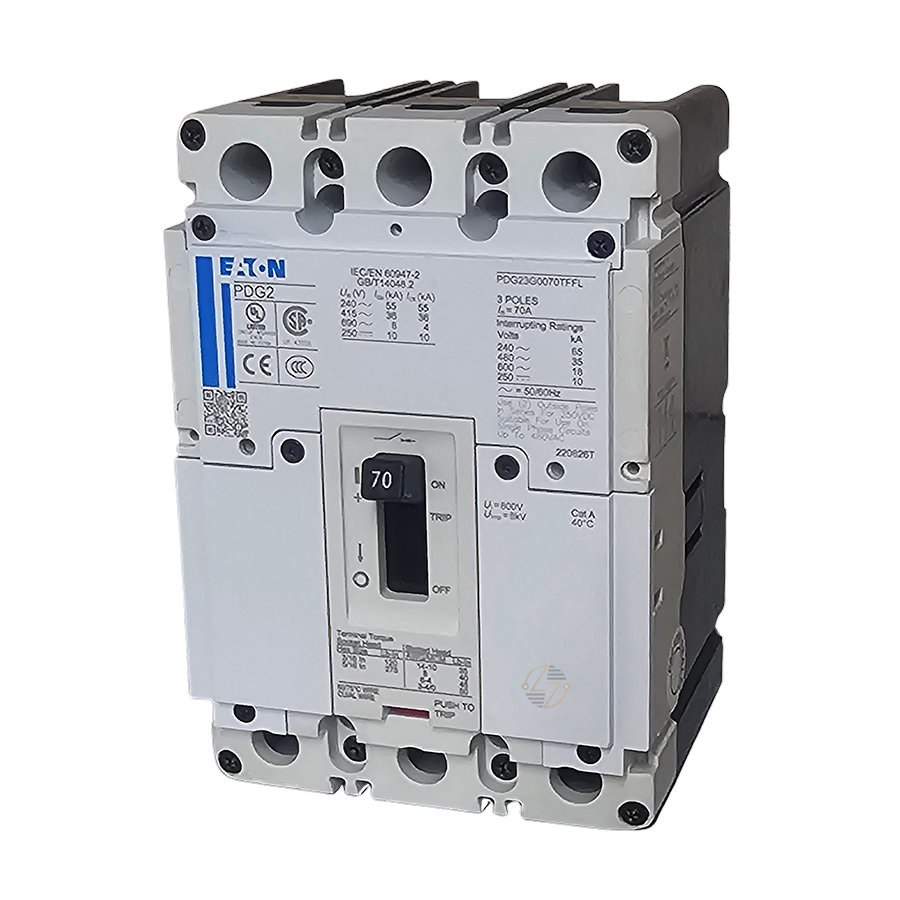

The Eaton PDG23G0225TFFL is a 225-amp, 3-pole molded case circuit breaker from the Power Defense line. It's a Frame 2 breaker with a 35 kA interrupting rating at 480 VAC, a fixed thermal-magnetic trip, and load-side lugs. If you're replacing a breaker in an existing piece of equipment, this is where the details matter. Don't go by the 225A rating alone. Check the catalog number, number of poles, voltage and interrupting rating, trip setup, lug configuration, and physical dimensions against the breaker you're replacing. For applications that call for this exact configuration, the PDG23G0225TFFL is a straightforward choice for commercial and industrial power distribution equipment.

Key Features and Benefits

• 225-amp rating for applications requiring a 225-amp breaker.
• 3 poles for compatible three-phase systems.
• 35kA at 480VAC interrupting rating.
• Frame 2 Power Defense construction keeps the breaker relatively compact.
• Fixed thermal-magnetic trip means there are no adjustable trip settings to dial in.
• Load-side lugs are included with this configuration.
• Designed as a molded-case circuit breaker (MCCB) for low-voltage electrical distribution.
• Global ratings and recognized certifications give it flexibility across a range of compatible equipment.

Technical Specifications

• Manufacturer: Eaton

• Part Number: PDG23G0225TFFL

• Series: Power Defense

• Product Type: Molded Case Circuit Breaker

• Frame: Frame 2

• Poles: 3

• Amperage: 225A

• A.I.C. Rating: 35kA at 480VAC

• Trip Type: Fixed Thermal-Magnetic

• Connection: Load-Side Lugs

• Height: Approx. 6.0 in.

• Width: Approx. 4.12 in.

• Depth: Approx. 3.5 in.


Material Compliance and Certifications

• The Eaton PDG23G0225TFFL is RoHS compliant. Manufacturer information for this breaker identifies the following standards and certifications:
  • UL 489
  • CSA
  • IEC 60947-2
  • CCC
  • RoHS compliant
• Always check the requirements of the equipment and installation. A certification or matching amp rating by itself doesn't mean that two circuit breakers are interchangeable.

Where It Works Best

• The PDG23G0225TFFL is intended for compatible commercial and industrial electrical distribution equipment where a 225A, 3-pole molded-case circuit breaker with a 35kA rating at 480VAC is required.
• You may find this type of breaker used with compatible switchboards, panelboards, industrial equipment, machinery, facility electrical systems, and other three-phase distribution applications.
• Replacing an existing breaker? Start with the catalog number. Then compare the frame size, amperage, poles, voltage, A.I.C. rating, trip type, lugs, and dimensions. Those details are important, especially when you're working with existing electrical equipment where the breaker needs to match the application.
