PDG23G0225TFFJ - 225Amp Circuit Breaker

PDG23G0225TFFJ - 225Amp Circuit Breaker

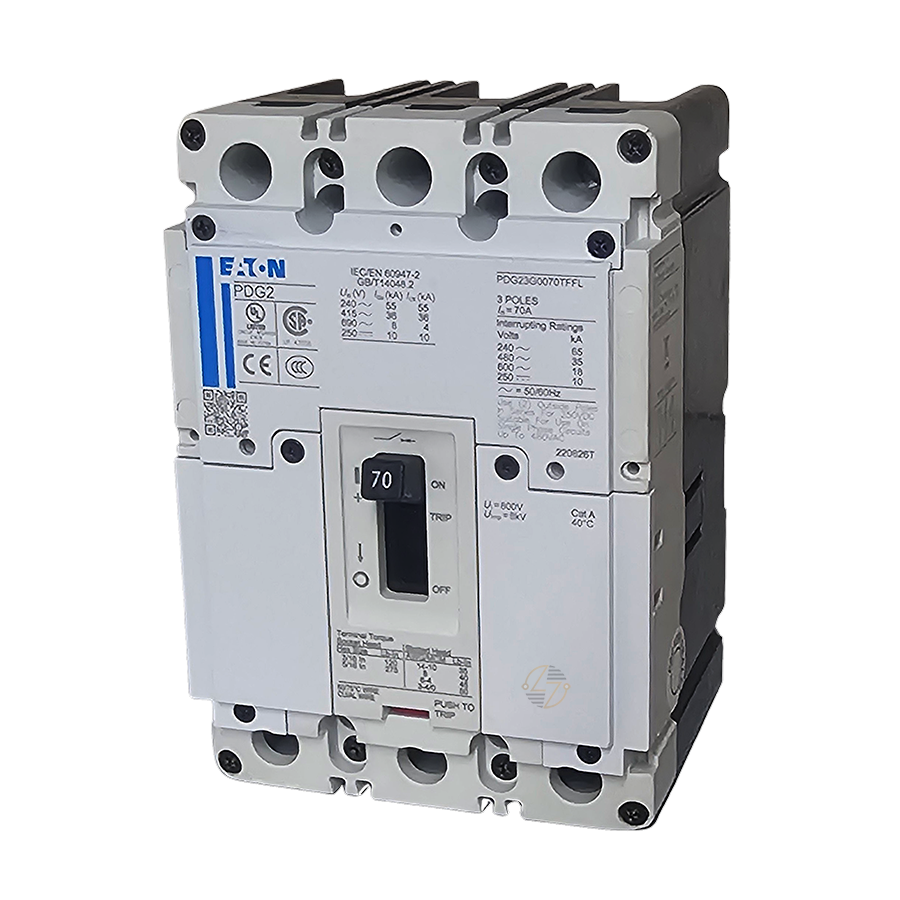

The Eaton PDG23G0225TFFJ molded case circuit breaker is engineered to deliver superior performance, safety, and reliability for high-demand electrical systems. Designed for a global market, this 225Amp, three-pole circuit breaker features a compact Frame 2 design and thermomagnetic trip technology (T-M Fixed-Fixed). Its 35kA interrupt rating at 480V ensures exceptional fault protection, making it ideal for industrial and commercial applications.

Key Features and Benefits:

• High Interrupt Capacity: Handles fault currents up to 35kA at 480V (UL certified), providing enhanced safety in critical applications. Additional ratings include 65kA at 240V (UL) and 18kA at 600V (UL/CSA), ensuring versatility across various systems.
• Advanced Trip Technology: Equipped with a thermomagnetic trip unit (Fixed-Fixed) for precise overload and short-circuit protection.

Technical Specifications:

• Amperage Rating: 225Amp
• Voltage Rating: Up to 600V AC
• Interrupt Ratings: 35kA at 480V (UL), 65kA at 240V (UL), 18kA at 600V (UL/CSA), 55kAIC at 240V (IEC), 36kAIC at 380-415V (IEC)
• Frame Type: PD2 Global, Class A
• Poles: Three
• Terminals: Standard line and load configuration for easy integration.
• Dimensions: 88.9 mm (L) x 104.6 mm (W) x 152.4 mm (H)
• Weight: 1.82 kg

Material Compliance and Certifications:

• RoHS Compliant: Adheres to global environmental and material safety standards.
• Certified for International Use: UL, IEC, CSA, and CCC certifications ensure compliance across regions.

Applications:

• The Eaton PDG23G0225TFFJ is perfect for industrial plants, commercial buildings, and infrastructure projects that demand high reliability and fault protection. Its robust ratings and certifications make it ideal for OEMs, panel builders, and system integrators seeking trusted performance and compliance with global standards.
