PDG21M0025TFFJ - 25 Amp Circuit Breaker

PDG21M0025TFFJ - 25 Amp Circuit Breaker

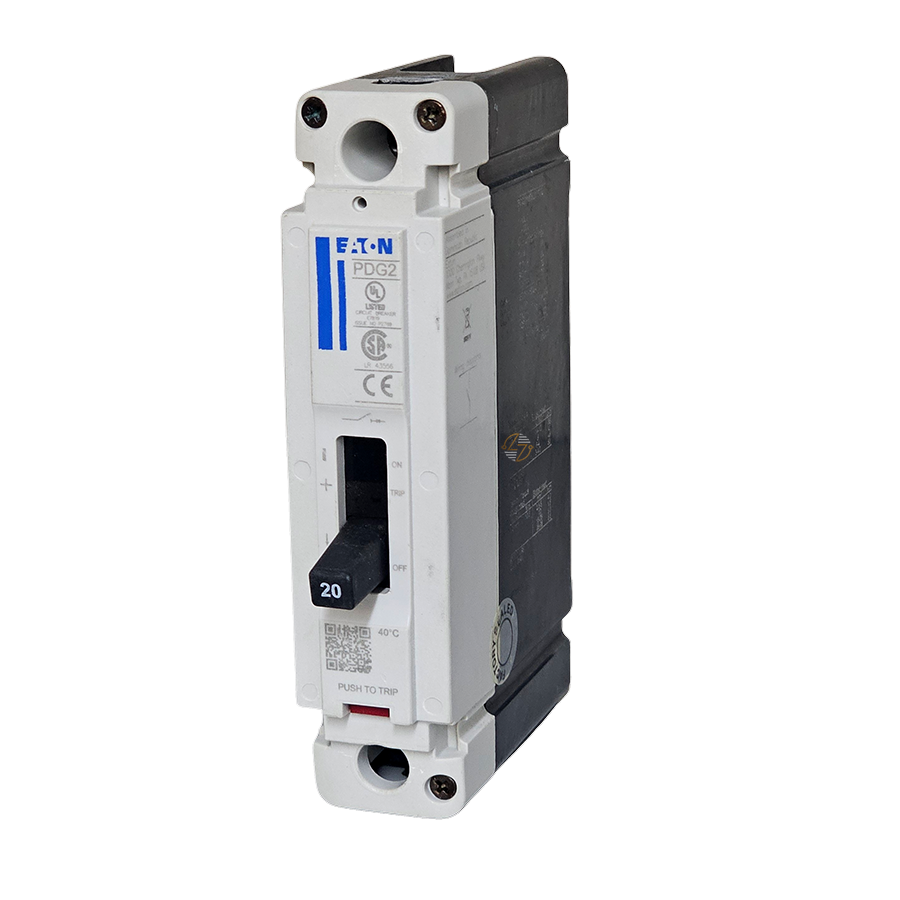

The Eaton PDG21M0025TFFJ is a 25-amp, single-pole molded-case circuit breaker from the Power Defense line. This is a Frame 2 breaker with a fixed trip and line and load lugs. Its interrupting rating is 65kA at 277 VAC. If you're replacing an existing breaker, those details are important—a similar-looking breaker isn't necessarily an electrical or mechanical match.

Space can matter just as much as the electrical ratings, especially when you're working inside existing equipment. The PDG21M0025TFFJ measures approximately 6 inches high, 1.38 inches wide, and 3.5 inches deep. That gives it a relatively narrow profile for applications calling for this particular Frame 2 configuration.

For maintenance work, equipment repair, or a new installation, this breaker is worth considering when the specifications call for 25A, 1-pole, fixed-trip, and 65kA at 277 VAC. As always, match the complete part number and ratings to the equipment requirements rather than relying on amperage alone.

Key Features and Benefits

• 25A rating for applications that specify a 25 amp breaker.
• 1-pole configuration for compatible single-pole applications.
• Rated 65kA at 277 VAC.
• Fixed trip configuration keeps the protection setup straightforward.
• Supplied with line and load lugs.
• Frame 2 Power Defense design.
• At only 1.38 inches wide, it takes up relatively little lateral space in compatible equipment.
• Clearly defined ratings make it easier to compare against an existing breaker or project specification.


Technical Specifications

• Manufacturer: Eaton

• Part Number: PDG21M0025TFFJ

• Product Line: Power Defense

• Type: Molded Case Circuit Breaker

• Frame: Frame 2

• Amperage: 25A

• Poles: 1

• A.I.C. Rating: 65kA @ 277 VAC

• Trip: Fixed

• Connections: Line & Load Lugs

• Height: 6.0 in.

• Width: 1.38 in.

• Depth: 3.5 in.


Material Compliance and Certifications

• The PDG21M0025TFFJ is part of Eaton's globally rated Power Defense molded-case circuit breaker family. Specific certifications and material compliance requirements should be verified against the markings on the breaker and the current manufacturer documentation. This is particularly important when a job or facility requires a specific approval or standard.


Where It Works Best

• This breaker is intended for compatible electrical distribution and equipment applications calling for its specific ratings and configuration. Typical uses may include commercial or industrial electrical equipment, control panels, machinery, OEM equipment, and maintenance or replacement projects.
• The 65 kA rating at 277 VAC is an important consideration when the electrical system requires that level of interrupting capacity. Its narrow 1.38-inch width can also be useful when available equipment space is limited.
• If you're replacing an existing breaker, start with the catalog number. PDG21M0025TFFJ tells you much more than simply looking for another 25-amp breaker. Pole configuration, interrupting rating, voltage, trip type, connections, dimensions, and equipment compatibility all need to line up with the application.
