PDG21G0090TFFL - 90Amp Circuit Breaker

PDG21G0090TFFL - 90Amp Circuit Breaker

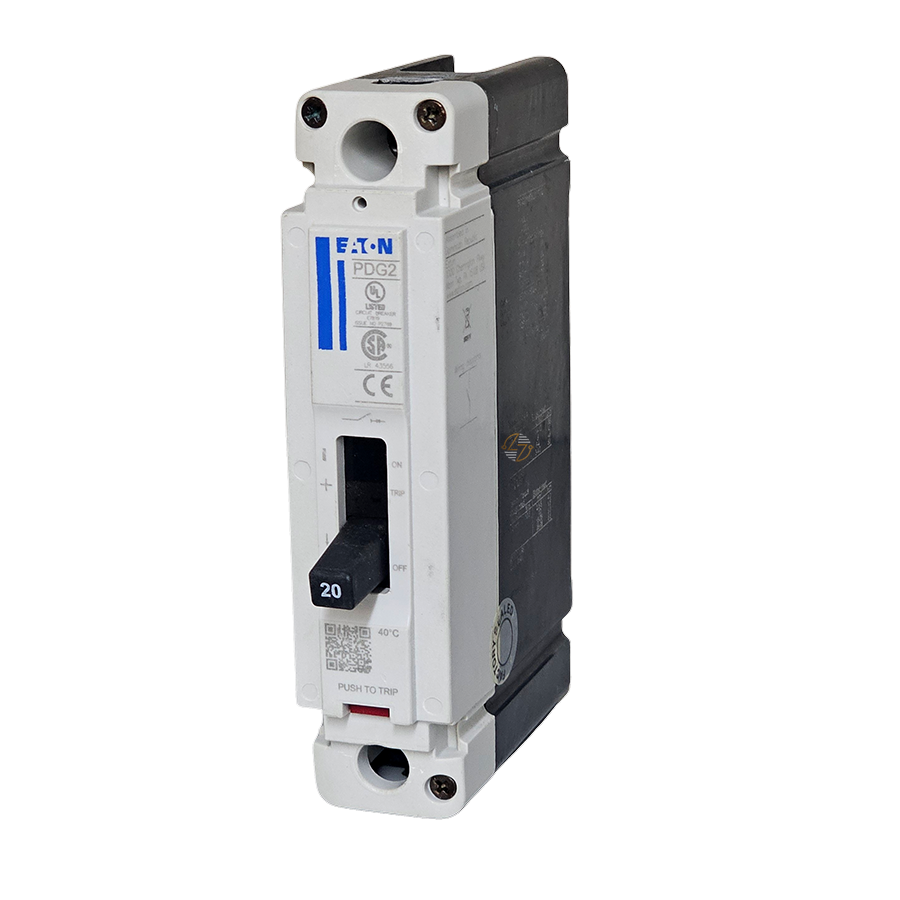

The Eaton PDG21G0090TFFL molded case circuit breaker is engineered for superior reliability and safety in single-pole electrical applications. With a 90Amp current capacity and a high interrupt rating of 35kA at 480V, this breaker is built to handle demanding environments. Compact, globally certified, and eco-friendly, it ensures dependable protection while meeting international standards.

Key Features and Benefits:

• High Interrupt Capacity: 35kA at 480V (UL certified) for excellent fault protection in critical systems.
• Single-Pole Configuration: Tailored for focused protection in individual circuits.
• Thermomagnetic Trip Unit: Delivers consistent, reliable overcurrent protection for a variety of applications.
• Environmentally Conscious: Fully RoHS-compliant, supporting sustainable system designs.

Technical Specifications:

• Amperage Rating: 90Amp capacity, suitable for high-demand applications.
• Voltage Rating: Operates efficiently up to 600V AC.
• Interrupt Ratings: 65kA at 240V and 35kA at 480V (UL certified), 55kA at 240V and 36kA at 380-415V (IEC certified).
• Terminal Type: Standard load-only terminals for simplified installation and secure connections.
• Global Certifications: UL 489, IEC 60947-2, CSA, and CCC-marked for worldwide use.

Material Compliance and Certifications:

• RoHS Compliance: Manufactured with environmentally responsible materials.
• Certifications: Adheres to UL, IEC, CSA, and CCC standards, ensuring trust and usability in various regions.

Suitability:

• Ideal for single-pole applications in industrial, commercial, and residential systems, the Eaton PDG21G0090TFFL provides robust protection with a compact footprint. It is a reliable choice for professionals seeking efficient and globally certified circuit protection solutions.
