PDG21G0090TFFJ - 90Amp Circuit Breaker

PDG21G0090TFFJ - 90Amp Circuit Breaker

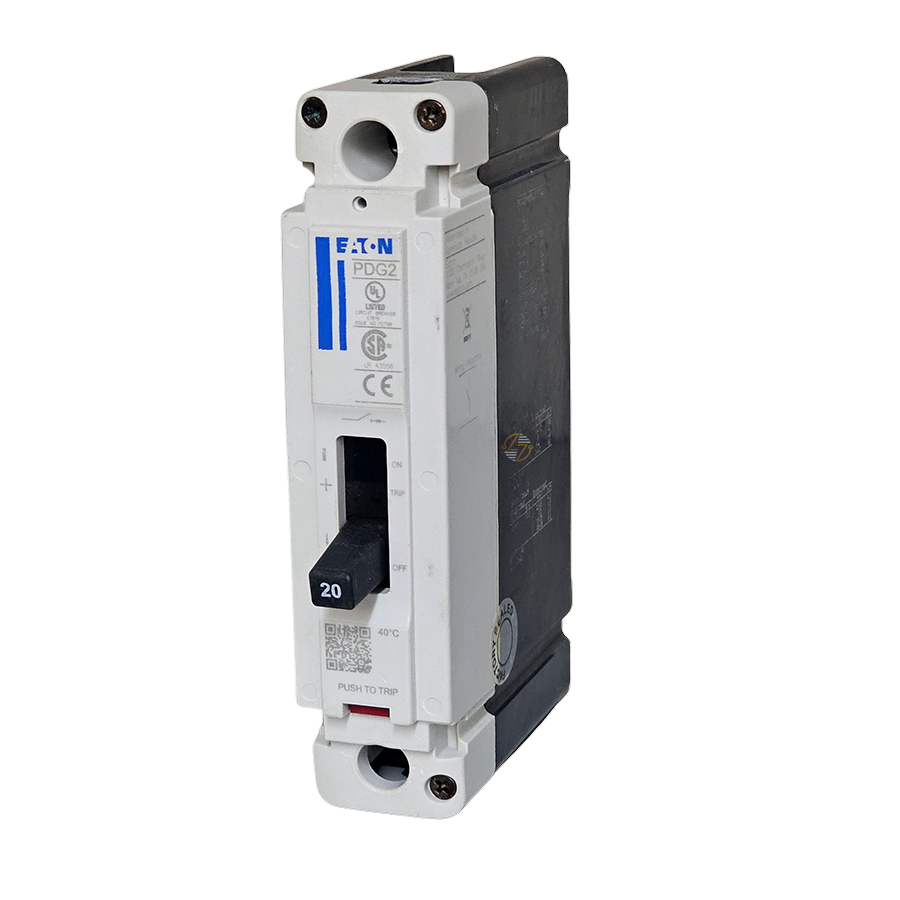

The Eaton PDG21G0090TFFJ Power Defense molded case circuit breaker is an advanced and globally rated solution designed to deliver exceptional protection for modern electrical systems. With a 90A capacity and a robust interrupting rating of 35kA at 480V, this breaker ensures reliable operation in demanding environments. Its compact Frame 2 design provides space efficiency without compromising performance, while the T-M (Fixed-Fixed) trip unit enables precise fault detection and response.

Key Features and Benefits:

• High Interrupting Capacity: Rated at 35kA at 480V for reliable fault protection in critical systems.
• Compact and Durable: Frame 2 design ensures efficient use of space while maintaining superior durability.
• Ease of Integration: Standard line and load terminals facilitate straightforward installation.

Technical Specifications:

• Frame Type: PD2 Global, Frame 2
• Amperage: 90A
• Poles: Single Pole
• Voltage Rating: Up to 600 Vac
• Interrupting Capacity:
  • 35kA at 480 Vac (UL)
  • 65kA at 240 Vac (UL)
  • 18kA at 600 Vac (UL/CSA)
  • 36kA Icu at 380-415V (IEC)
  • 55kA Icu at 240 Vac (IEC)
• Dimensions: 88.9 mm (L) x 152.4 mm (H) x 35.1 mm (W)
• Weight: 2.041 kg

Material Compliance and Certifications:

• Certifications: UL 489, CSA, IEC 60947-2, CCC Marked
• Compliance: RoHS compliant, ensuring reduced environmental impact.

Suitability:

• Ideal for industrial and commercial applications, the Eaton PDG21G0090TFFJ is engineered for electrical systems requiring dependable protection and global compliance. Its robust design and reliable performance make it suitable for automation, manufacturing, and power distribution networks.
