PDG21G0070TFFL - 70Amp Circuit Breaker

PDG21G0070TFFL - 70Amp Circuit Breaker

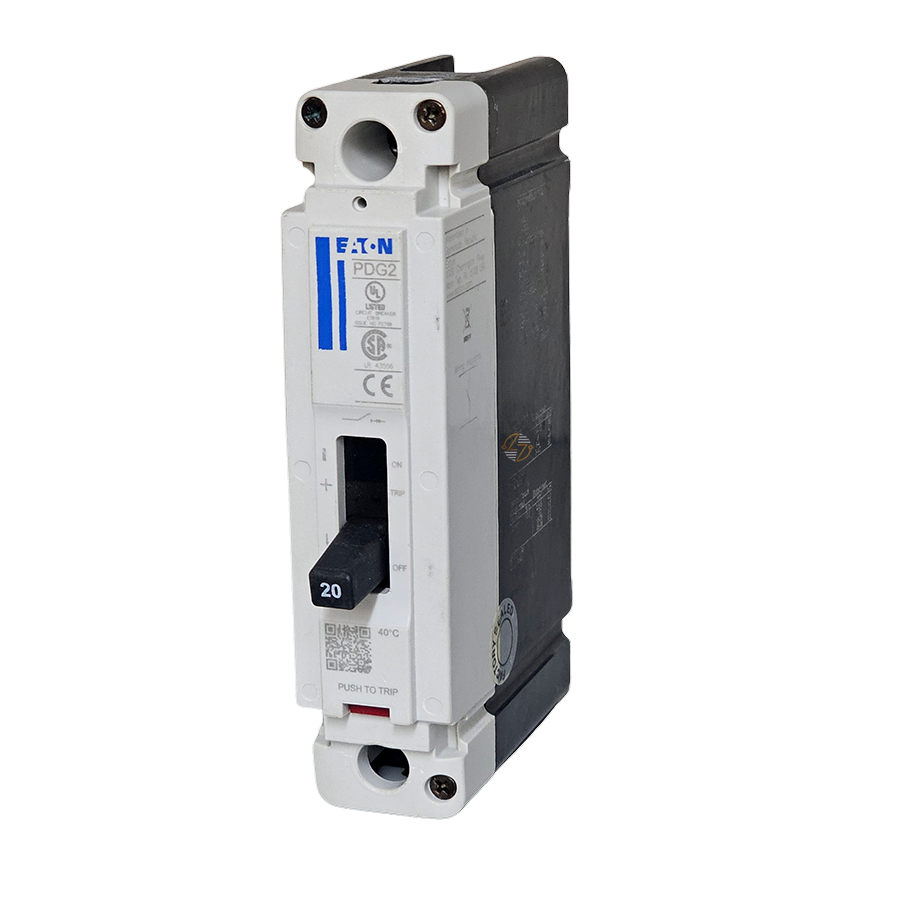

The Eaton PDG21G0070TFFL molded case circuit breaker is a cutting-edge solution for safeguarding electrical systems. With a single-pole, 70Amp capacity, this breaker is built for performance and reliability in a compact Frame 2 design. It features a thermomagnetic trip unit (Fixed-Fixed) and a 35kA interrupt rating at 480V, making it suitable for a wide range of applications. Backed by global certifications, this breaker ensures compliance with international safety and performance standards.

Key Features and Benefits:

• Superior Fault Protection: 35kA interrupt rating at 480V (UL certified) to handle high fault currents effectively. Additional ratings include 65kA at 240V and 18kA at 600V (UL/CSA) for enhanced versatility.
• Reliable Trip Technology: Thermomagnetic trip unit (Fixed-Fixed) ensures dependable overload and short-circuit protection.
• Global Certifications: Compliant with UL 489, IEC 60947-2, CSA, and CCC standards for international use.
• Environmentally Responsible: RoHS compliant, reflecting Eaton's commitment to sustainability.

Technical Specifications:

• Amperage Rating: 70Amp
• Voltage Rating: Up to 600V AC
• Interrupt Ratings: 35kA at 480V (UL), 65kA at 240V (UL), 18kA at 600V (UL/CSA), 55kAIC at 240V (IEC), 36kAIC at 380-415V (IEC)
• Frame Type: PD2 Global, Class A
• Poles: Single-pole configuration
• Trip Unit: Thermomagnetic, Fixed-Fixed
• Terminals: Standard Terminals Load Only
• Dimensions: 88.9 mm (L) x 35.1 mm (W) x 152.4 mm (H)
• Weight: 2.041 kg

Material Compliance and Certifications:

• RoHS Compliant: Meets global environmental and safety standards.
• Certified for International Use: Fully compliant with UL, IEC, CSA, and CCC standards.

Applications:

• The Eaton PDG21G0070TFFL is ideal for industrial, commercial, and residential settings requiring reliable circuit protection. Its high interrupt capacity and compact form factor make it a top choice for panel builders, electrical contractors, and system integrators seeking versatile and high-performing solutions.
