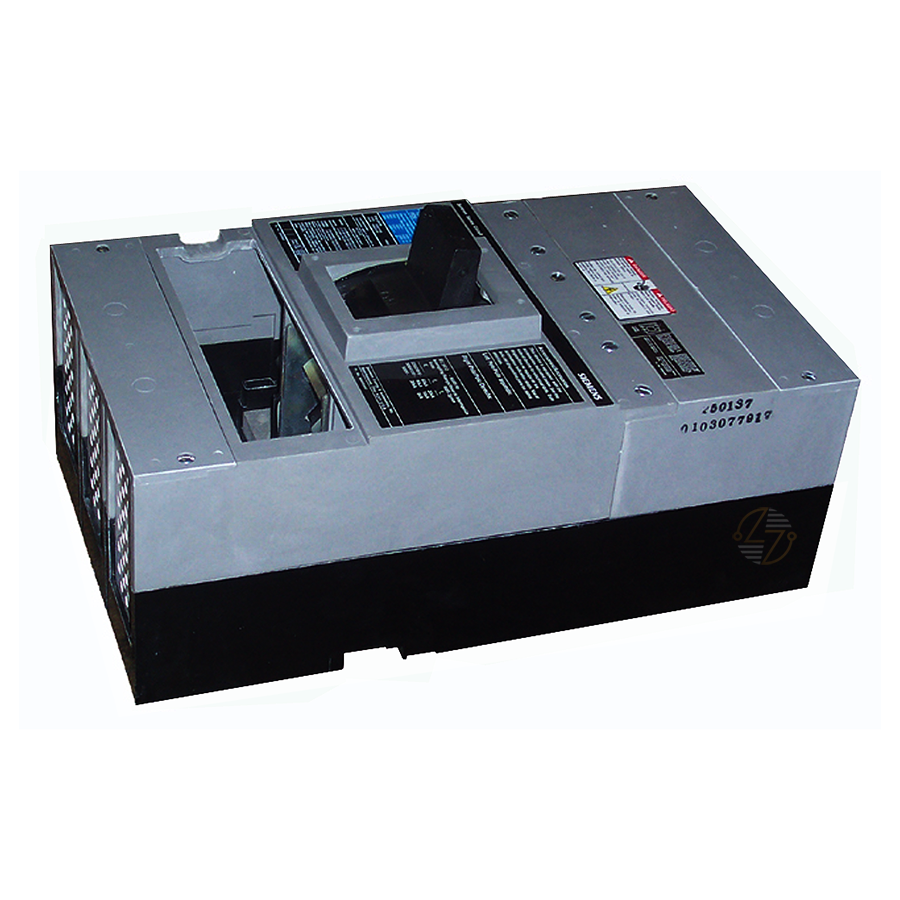

PD63F160 - 1600 Amp Max. *Frame ONLY*

PD63F160 - 1600 Amp Max. *Frame ONLY*

Finding the right breaker frame for existing electrical equipment often comes down to the details. The PD63F160 is a PD6 molded-case circuit breaker frame rated at 1600 amps with a 3-pole configuration. It is designed for compatible systems that use the PD1600A frame and a thermal-magnetic breaker setup. The frame measures 16 inches high, 9 inches wide, and 6.19 inches deep so that you can compare the dimensions directly with the equipment already in place. Interrupting ratings are 25k AIC at 600VAC, 50k AIC at 480VAC, and 65k AIC at 240VAC. This is a frame-only product, an important detail when matching components for an existing breaker assembly. For facilities that maintain legacy electrical distribution equipment, the PD63F160 can provide the form, fit, and function match needed without changing the original system configuration. It's built to last when used within its specified ratings and intended application.

Key Features and Benefits

• 1600A PD6 frame for compatible PD1600A applications.
• Three-pole configuration for systems requiring a 3-pole breaker frame.
• Designed for a thermal-magnetic molded-case circuit breaker setup.
• Rated 25k AIC at 600VAC, 50k AIC at 480VAC, and 65k AIC at 240VAC.
• Measures 16 in. H x 9 in. W x 6.19 in. D, making physical fit easier to verify.
• Well suited for maintaining existing and legacy electrical equipment built around the PD6 frame.
• Supplied as the breaker frame only for applications where the remaining compatible components are already specified.
• Built to last in its intended electrical application.

Technical Specifications

• Part Number: PD63F160

• Type: PD6

• Frame: PD1600A

• Amperage: 1600A

• Poles: 3

• Breaker Type: Molded Case Circuit Breaker

• Configuration: Thermal-Magnetic

• AIC Rating: 25k @ 600VAC; 50k @ 480VAC; 65k @ 240VAC

• Height: 16.0 in.

• Width: 9.0 in.

• Depth: 6.19 in.

• Product Supplied: Frame Only


Material Compliance and Certifications

• Material compliance and certification details were not included in the available specifications for the PD63F160. For an application that requires a particular listing, certification, or material standard, verify the information shown on the actual product nameplate and accompanying documentation. The frame should also be matched to applicable electrical codes and the requirements of the equipment in which it will be installed.

Where It Works Best

• The PD63F160 is a good fit for maintenance and replacement work involving electrical distribution equipment designed around a PD6 1600A, 3-pole frame. It may be used in compatible commercial, industrial, and facility electrical systems where keeping the existing equipment configuration is important.

• This is especially relevant when you're working with legacy equipment and need to match what is already there. Before installation, compare the PD6 frame type, 1600A rating, number of poles, dimensions, voltage, and AIC rating with the existing breaker and system requirements.
