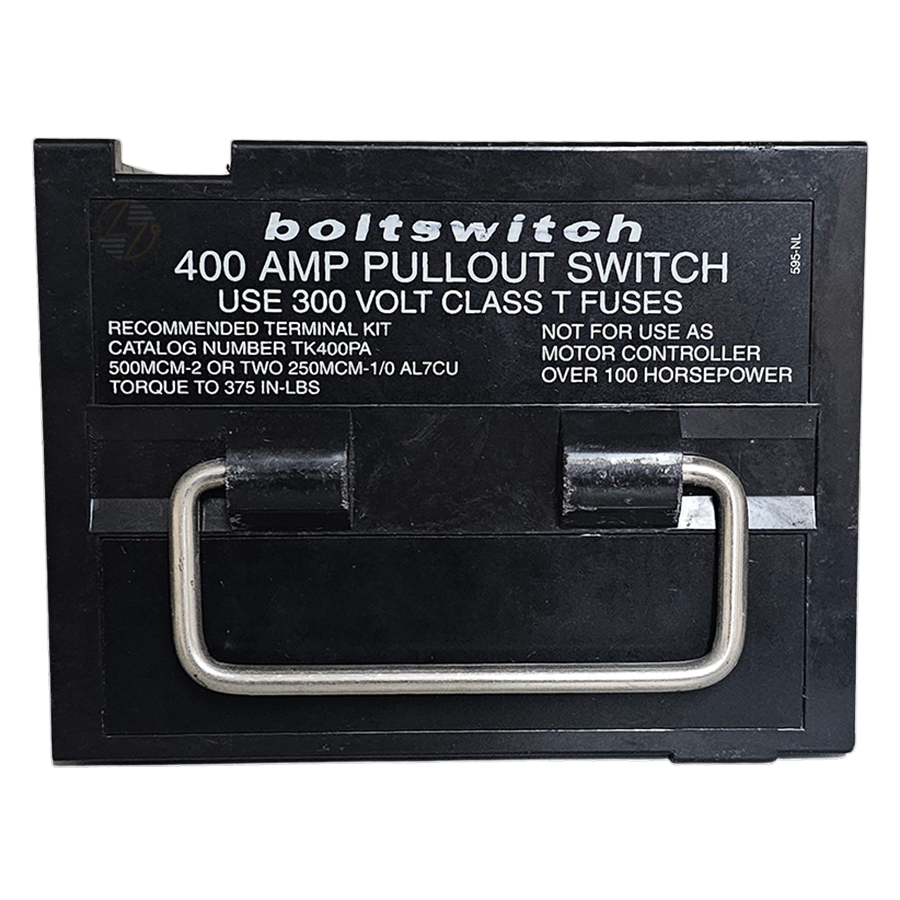

PAT325 - 400Amp Fusible Pullout *Head ONLY*

PAT325 - 400Amp Fusible Pullout *Head ONLY*

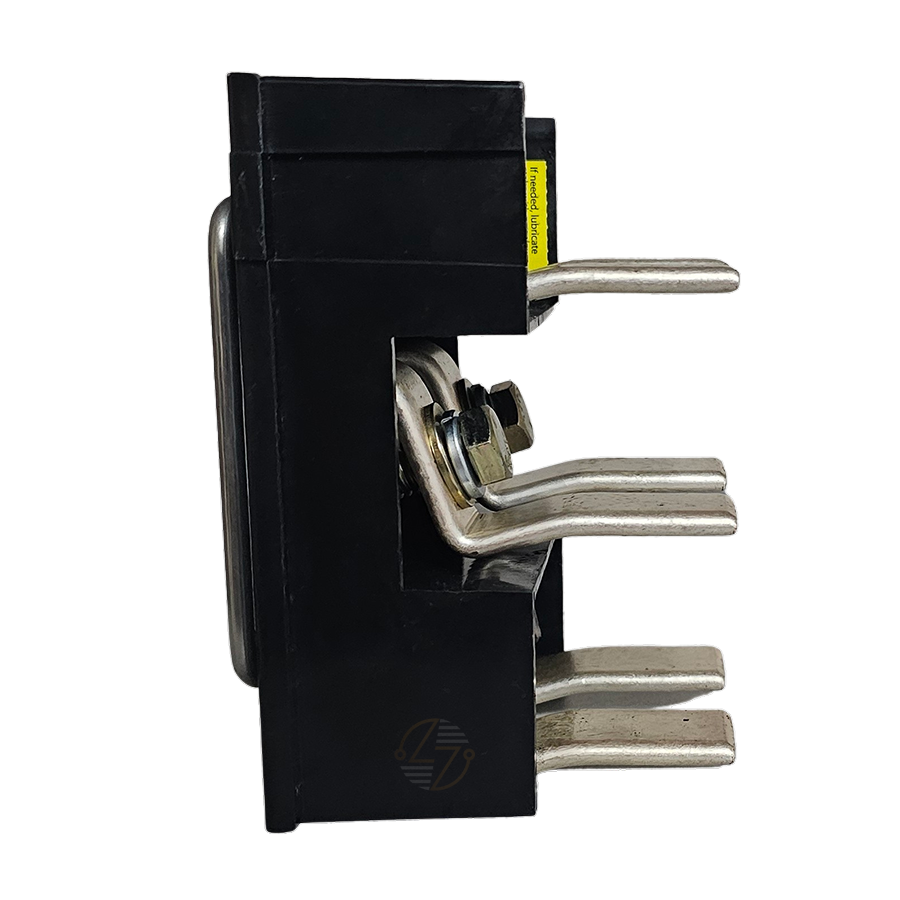

The Boltswitch PAT325 Fusible Pullout Switch Head is a critical component designed for seamless integration into electrical distribution systems, ensuring reliable circuit protection and operational safety. Engineered for use in panelboards, control panels, and meter banks.

Key Features and Benefits

• High Interrupting Capacity: The PAT325 is suitable for use on circuits capable of delivering up to 200,000 RMS symmetrical amperes, providing robust protection against high fault currents.
• Quick-Make, Quick-Break Mechanism: Equipped with a tease-proof operator, the switch ensures rapid and reliable opening and closing actions, enhancing safety during operation.
• Dead Front Construction: The design includes a dead front feature, minimizing exposure to live parts and reducing the risk of electrical shock to personnel.


Technical Specifications

• Current Rating: 400 Amperes

• Poles: 3

• Phase: 3

• Fuse Compatibility: Accepts Class T fuses


Material Compliance and Certifications

• Tested in accordance with UL1429 and listed under file No. E131005, ensuring compliance with stringent safety and performance standards. Manufactured with high-quality materials to meet industry requirements for durability and reliability.


Suitability

• The PAT325 Fusible Pullout Switch Head is ideal for commercial and industrial applications requiring dependable overcurrent protection and load switching capabilities. Its robust design and high interrupting capacity make it suitable for use in environments with high fault current potential, ensuring the safety and integrity of electrical systems.
