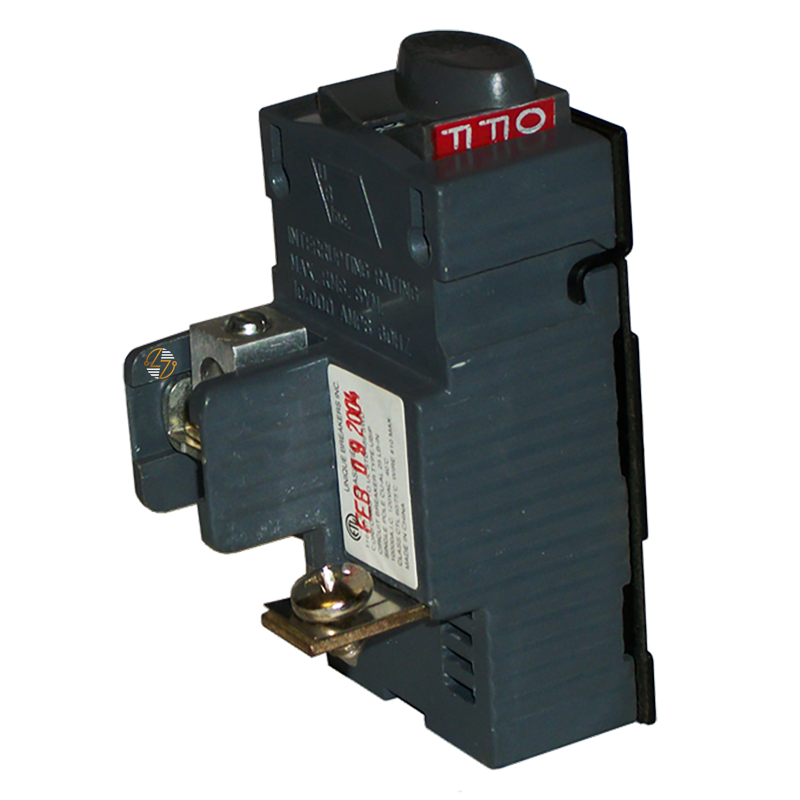

P115 - 15A Circuit Breaker

P115 - 15A Circuit Breaker

If you're replacing a P115 circuit breaker in an older residential electrical system, match the breaker to the existing equipment. This P115 is a new aftermarket replacement made for applications that originally used the P115 Pushmatic-style breaker. It has a 15-amp rating, one pole, bolt-on connection, and a 120VAC rating with 10 kAIC. The breaker measures 1.5" high, 1" wide, and 2.81" deep, keeping the dimensions needed for the intended P115 application. It's a sensible choice when repairing or maintaining a compatible legacy panel and you want to keep the existing setup.

Simply put, this breaker is designed to do one job: provide the form, fit, and function needed when you need a P115 replacement. It's built to last when correctly matched to the application and used within its stated ratings. Before installation, compare the specifications with the existing breaker and panel requirements to make sure everything matches.

Key Features and Benefits

• Made as an aftermarket replacement for P115 breaker applications
• 15 amp, 1-pole configuration
• Rated for 120VAC
• 10kAIC interrupting rating at 120VAC
• Bolt-on connection
• Measures 1.5" H x 1.0" W x 2.81" D
• Designed with existing compatible residential systems in mind
• Useful for repair and maintenance of older electrical equipment
• Built to last when properly installed and used within its specified ratings

Technical Specifications

• Part Number: P115

• Type: P

• Product Type: Residential Circuit Breaker

• Poles: 1

• Amperage: 15A

• Voltage: 120VAC

• A.I.C. Rating: 10k at 120VAC

• Connection: Bolt-On

• Dimensions:
  • Height: 1.5 in.
  • Width: 1.0 in.
  • Depth: 2.81 in.
• Configuration: New Aftermarket Replacement


Material Compliance and Certifications

Certification and material-compliance details were not provided for this P115 replacement breaker. Therefore, we won't assume UL, CSA, RoHS, or other listings or certifications. Check the product labeling and supporting documentation when a particular certification or compliance requirement applies to your installation.

As with any electrical component, install the breaker according to the equipment's requirements, applicable electrical codes, and local regulations.

Where It Works Best

The P115 15 amp circuit breaker is intended for compatible residential electrical equipment that calls for this specific breaker style. It's particularly relevant when working on an older system where the existing application requires a P-type, single-pole, 15A bolt-on breaker rated for 120VAC and 10k AIC.

This is about getting the right match, not changing what the system was designed to use. Before installation, check the existing breaker, panel requirements, mounting arrangement, dimensions, amperage, and voltage. If those details match the specifications above, the P115 is designed to serve as the corresponding aftermarket replacement.
