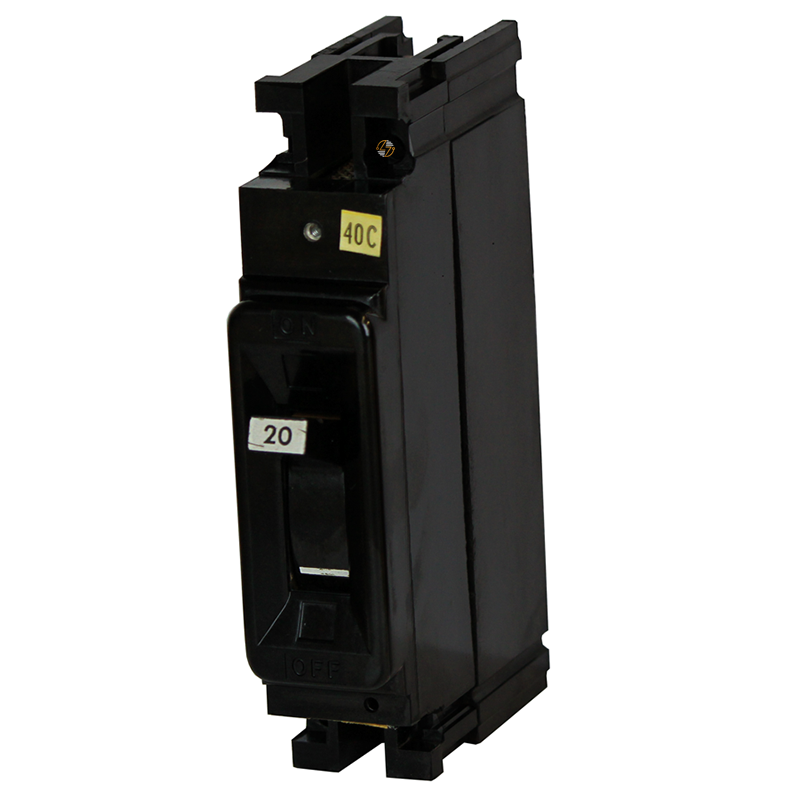

NEF211020 - 20Amp Circuit Breaker
NEF211020 - 20Amp Circuit Breaker
Couldn't load pickup availability
NEF211020 - 20Amp Circuit Breaker
When you're replacing a circuit breaker in existing equipment, the details matter. The NEF211020 is a 20-amp, 1-pole Type NEF molded-case circuit breaker with a bolt-on connection and thermal-magnetic trip operation. It is rated 14k AIC at 277VAC and 18k AIC at 120VAC and measures 6.19 inches high, 1.38 inches wide, and 3.38 inches deep. Those specifications make it useful for maintenance and replacement work where the existing equipment calls for this particular NEF configuration. The bolt-on design provides the mounting style used in compatible equipment, while the thermal magnetic mechanism responds to both overload and short-circuit conditions. You may also find the NEF211020 referenced as NEF213020, NEF215020, or NEF217020, so check those numbers when matching a breaker already installed in your equipment. For older electrical systems, finding the right replacement isn't about adding unnecessary features—it's about matching the breaker that belongs there. Check the amperage, pole count, mounting style, dimensions, voltage, and AIC rating before matching it. Properly selected and installed, the NEF211020 is built to last in the applications it was designed to serve.
Key Features and Benefits
- 20-amp, 1-pole design for equipment requiring this specific electrical configuration.
- Bolt-on mounting provides the connection style needed for compatible Type NEF equipment.
- Thermal-magnetic operation provides protection against overload and short-circuit conditions.
- Molded-case construction keeps the internal breaker components enclosed and protected during normal operation.
- Rated 14k AIC at 277VAC and 18k AIC at 120VAC.
- A practical choice for maintenance and functional replacement in compatible legacy electrical systems.
- Also referenced as NEF213020, NEF215020, and NEF217020, which can be helpful when cross-checking an existing breaker.
- Built to last when correctly matched to the equipment, properly installed, and operated within its specified ratings.
Technical Specifications
-
Part Number: NEF211020
-
Type: NEF
-
Breaker Type: Molded Case Circuit Breaker
-
Trip Type: Thermal Magnetic
-
Mounting: Bolt-On
-
Poles: 1
-
Amperage: 20A
-
AIC Rating & Voltage: 14k @ 277VAC; 18k @ 120VAC
-
Height: 6.19 in.
-
Width: 1.38 in.
-
Depth: 3.38 in.
-
Ship Weight: 3.50 lbs.
-
Alternate References: NEF213020, NEF215020, NEF217020
Material Compliance and Certifications
- Material compliance and certification details are not included in the available specifications for this breaker. If your application requires a particular certification or listing, check the markings on the individual breaker and the applicable equipment documentation before installation.
- Do not assume UL, CSA, RoHS, or other certification status without verifying the specific unit or supporting documentation.
Where It Works Best
- The NEF211020 is best suited to existing and legacy electrical equipment designed to accept a Type NEF, 20 amp, 1-pole bolt-on molded case circuit breaker. It's particularly useful for maintaining equipment where the replacement must match the original breaker's physical size, mounting arrangement, and electrical ratings.
- Before replacing an existing breaker, compare what's already installed with the NEF211020 specifications. Look at the 20A rating, single-pole configuration, bolt-on connection, voltage, AIC rating, dimensions, and Type NEF designation. If the existing breaker is marked NEF213020, NEF215020, or NEF217020, those numbers may also be relevant when identifying the required breaker.
- As with any circuit breaker replacement, confirm compatibility before installation. Qualified personnel should handle electrical installation and servicing and perform work in accordance with applicable electrical codes and equipment requirements.
