FEDERAL PACIFIC
NE221015 - 15Amp Circuit Breaker
NE221015 - 15Amp Circuit Breaker
Couldn't load pickup availability

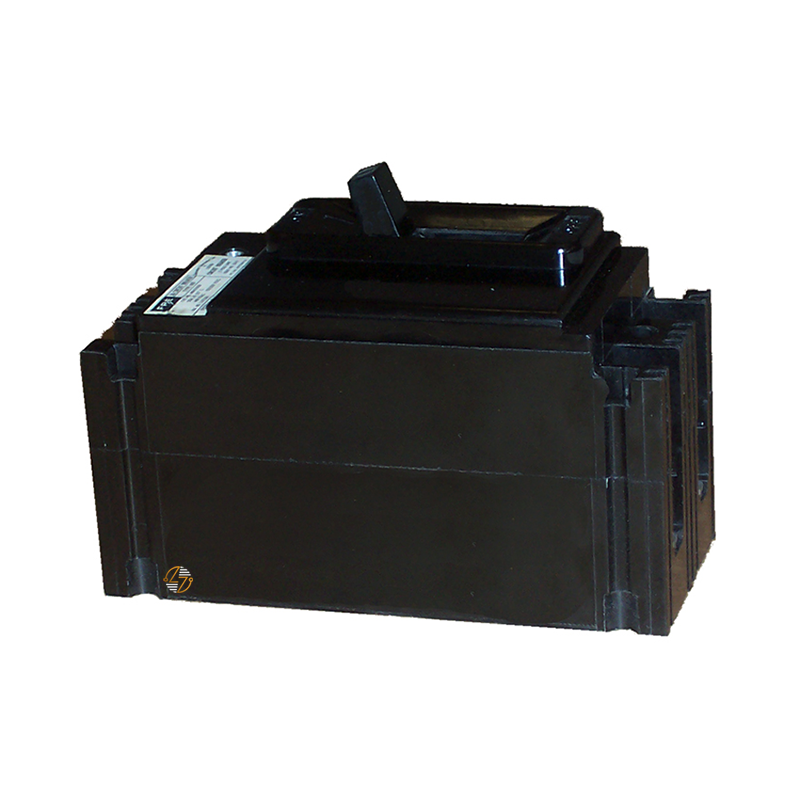

NE221015 - 15 Amp Circuit Breaker
When you're replacing a breaker in an existing electrical system, the small details matter. The NE221015 is a 15-amp, 2-pole Type NE molded-case circuit breaker with a bolt-on design and thermal-magnetic trip operation. It is rated 10k AIC at 120/240VAC and measures 6.19 inches high, 2.75 inches wide, and 3.38 inches deep. For anyone maintaining older electrical equipment, these details make it easier to compare the breaker in hand with the original installation requirements. You may also come across this breaker under the part numbers NE223015, NE225015, and NE227015. Rather than changing an existing system's configuration, the NE221015 is intended for applications where its Type NE design, electrical ratings, mounting style, and dimensions match. It's a straightforward circuit protection component built to last when properly installed and used within its specified ratings.
Key Features and Benefits
- 15A, 2-pole configuration for compatible Type NE applications
- Bolt-on mounting for equipment designed to accept this connection style
- Thermal magnetic trip operation for overcurrent protection
- 10k AIC rating at 120/240VAC
- Molded case construction designed for its intended electrical application
- Clearly defined dimensions help when checking the form and fit of a replacement breaker
- Useful for maintaining compatible legacy electrical equipment without changing the original breaker configuration
- Also identified as NE223015, NE225015, and NE227015
Technical Specifications
-
Part Number: NE221015
-
Type: NE
-
Amperage: 15A
-
Poles: 2
-
A.I.C. Rating: 10k
-
Voltage: 120/240VAC
-
Mounting: Bolt-On
-
Trip Type: Thermal Magnetic
-
Breaker Type: Molded Case Circuit Breaker
-
Dimensions:
- Height: 6.19 in.
- Width: 2.75 in.
- Depth: 3.38 in.
-
Also Known As: NE223015, NE225015, NE227015
Material Compliance and Certifications
- Specific material compliance and certification information was not provided for this breaker. Check the markings on the actual unit and the requirements of the equipment where it will be installed. Confirm any applicable listing, certification, electrical code, or local installation requirements before putting the breaker into service.
Where It Works Best
- The NE221015 circuit breaker is suited to maintenance and replacement work involving compatible Type NE electrical equipment. It is most relevant when the existing application calls for a 15-amp, 2-pole, bolt-on thermal magnetic breaker rated 10k AIC at 120/240VAC.
- Before replacing an existing breaker, check the full set of specifications rather than relying on amperage or physical appearance alone. The Type NE designation, poles, voltage, AIC rating, mounting style, dimensions, and equipment requirements should match the intended application. For legacy systems where those details match, the NE221015 provides the familiar form, fit, and function needed to keep the existing equipment configuration intact.
