NE-S 2200 - 100Amp Circuit Breaker
NE-S 2200 - 100Amp Circuit Breaker
Couldn't load pickup availability
NE-S 2200 - 100 Amp Circuit Breaker

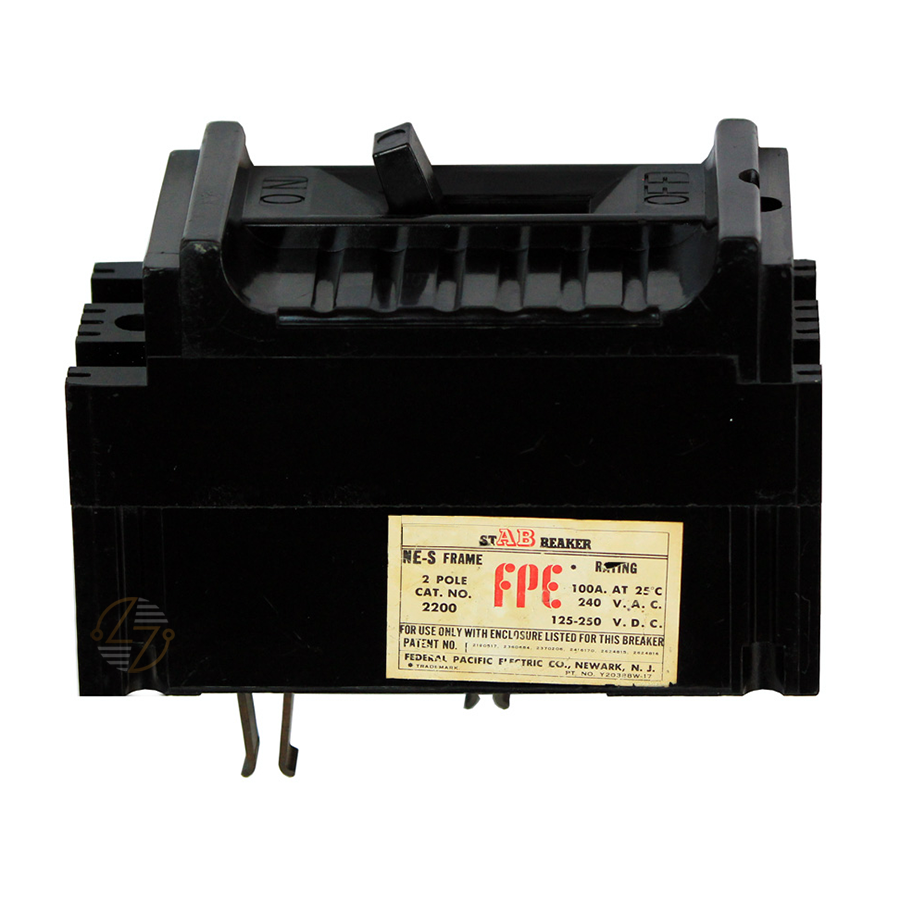

When you're replacing a breaker in an existing panelboard, getting the details right matters. The NE-S 2200 is a 100A, 2-pole molded case circuit breaker with a 10k AIC rating at 240VAC. It uses thermal-magnetic trip operation and has a plug-on design, with stabs on the back that plug into the panelboard. Load-side lug terminals are included. The breaker measures 6.19 inches high, 2.75 inches wide, and 5.5 inches deep, with a 40°C rating. For older electrical equipment designed around the NE-S configuration, this breaker provides the form, fit, and function needed for a proper replacement. Of course, the part number isn't the only thing to check. Amperage, number of poles, voltage, interrupting rating, dimensions, mounting style, and panel compatibility should all match the requirements of the existing equipment. The NE-S 2200 is a straightforward, purpose-built breaker made to last when used correctly within its specified ratings.
Key Features and Benefits
- 100-amp rating for compatible applications requiring a 100A breaker.
- 2-pole design for electrical equipment calling for this pole configuration.
- Thermal-magnetic trip operation provides circuit protection within the breaker's rated application.
- Plug-on mounting uses stabs on the back of the breaker to connect with the compatible panelboard.
- Load-side lug terminals are included for the required load connection.
- 40°C rating for the stated operating/calibration condition.
- Molded case construction provides the familiar form required for this breaker design.
- Well suited to form, fit, and functional replacement applications in compatible legacy electrical systems.
Technical Specifications
-
Part Number: NE-S 2200
-
Type: NE-S
-
Product Type: Molded Case Circuit Breaker
-
Amperage: 100A
-
Poles: 2
-
Voltage: 240VAC
-
AIC Rating: 10k @ 240VAC
-
Trip Type: Thermal Magnetic
-
Temperature Rating: 40°C
-
Mounting: Plug-On
-
Panel Connection: Rear stabs plug into panelboard
-
Load-Side Terminals: Lug terminals included
-
Dimensions:
- Height: 6.19 in.
- Width: 2.75 in.
- Depth: 5.5 in.
-
Ship Weight: 75.00 lbs.
Material Compliance and Certifications
The NE-S 2200 material-compliance information and certification listings were not provided. Confirm any required certifications or compliance standards from the markings on the breaker and the applicable manufacturer documentation.
Always verify that the breaker is acceptable for the intended equipment and application before installation. Local electrical codes and equipment requirements also apply.
Where It Works Best
The NE-S 2200 is intended for compatible panelboards and older electrical distribution equipment that call for the NE-S breaker configuration. It's especially relevant when you're maintaining an existing system and need a breaker with the correct physical design rather than changing the panel's original setup.
Pay close attention to the rear connection. This model has stabs on the back that plug into the panelboard, so it must match equipment designed for that connection style.
Before using the NE-S 2200 as a replacement, compare it with the existing breaker and panel specifications. Check the 100A rating, 2-pole configuration, 240VAC rating, 10k AIC, physical dimensions, plug-on design, and load-side lug arrangement.
