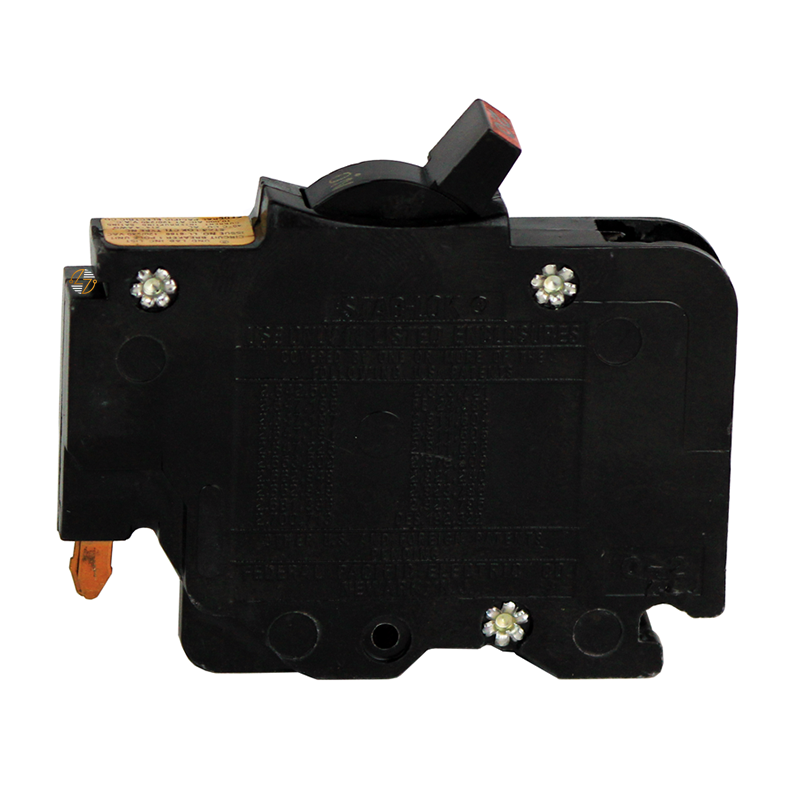

NC050 - 50Amp Circuit Breaker

NC050 - 50Amp Circuit Breaker

The NC050 50 Amp circuit breaker is built for dependable protection in existing electrical panels that require a higher amp rating in a compact footprint. Designed as a 1-pole, stab-on breaker, the NC050 uses a thermal magnetic trip system to respond to both sustained overloads and sudden short circuits. With a 10kA interrupting capacity at 120VAC, it is rated to safely clear fault currents while helping protect wiring and connected equipment. Its slim profile makes it a practical fit in tight load centers where every inch of space matters, and the stab-on connection helps speed up installation during routine service or replacement work.

Key Features and Benefits

• 50 Amp Rating: Suitable for branch circuits that require higher current protection.
• Thermal Magnetic Trip: Combines time-delay overload protection with fast short-circuit response.
• 10kA @ 120VAC A.I.C.: Designed to interrupt fault currents within its rating.
• Stab-On Mounting: Installs directly into compatible panels for a secure fit.
• Compact Size: Helps conserve panel space without sacrificing performance.

Technical Specifications

• Model: NC050
• Poles: 1
• Amperage: 50A
• Voltage: 120VAC
• Interrupting Capacity: 10kA
• Frame Type: NC
• Type: Thermal Magnetic
• Dimensions: 0.50" W x 3.38" L x 2.31" D
• Ship Weight: 1.50 lbs

Material Compliance and Certifications

• The NC050 is manufactured to meet applicable industry safety standards and follows environmental compliance requirements, including RoHS guidelines.
• It is intended for use in properly rated electrical systems and installed according to code.

Where It Works Best

• This 50A NC frame circuit breaker is commonly used for maintenance or replacement in compatible residential and commercial load centers.
• It’s a solid choice when you need reliable branch circuit protection in a limited space and want straightforward installation in an existing panel setup.
